OAF117 AIRFOIL (oaf117-il)

OAF117 AIRFOIL - ONERA/Aerospatiale OAF117 Fenestron airfoil


Airfoil oaf117-il
Details Dat file Parser
(oaf117-il) OAF117 AIRFOIL
ONERA/Aerospatiale OAF117 Fenestron airfoil
Max thickness 11.5% at 23.2% chord.
Max camber 2% at 46.9% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
OAF117 AIRFOIL
      51.0      51.0

 0.0000000 0.0000000
 0.0009870 0.0066160
 0.0039430 0.0129130
 0.0088560 0.0189500
 0.0157080 0.0248040
 0.0244720 0.0305360
 0.0351120 0.0361690
 0.0475860 0.0416720
 0.0618470 0.0469650
 0.0778360 0.0519450
 0.0954920 0.0565120
 0.1147430 0.0606020
 0.1355160 0.0641960
 0.1577260 0.0672970
 0.1812880 0.0698950
 0.2061070 0.0719280
 0.2320870 0.0732880
 0.2591230 0.0739400
 0.2871100 0.0741820
 0.3159380 0.0737510
 0.3454920 0.0727790
 0.3756550 0.0712980
 0.4063090 0.0693530
 0.4373330 0.0669990
 0.4686050 0.0642960
 0.5000000 0.0613050
 0.5313950 0.0580870
 0.5626670 0.0547000
 0.5936910 0.0511980
 0.6243450 0.0476280
 0.6545080 0.0440330
 0.6840620 0.0404510
 0.7128900 0.0369170
 0.7408770 0.0334620
 0.7679130 0.0301180
 0.7938930 0.0269110
 0.8187120 0.0238710
 0.8422740 0.0210220
 0.8644840 0.0183870
 0.8852570 0.0159860
 0.9045080 0.0138320
 0.9221640 0.0119330
 0.9381530 0.0102920
 0.9524140 0.0089020
 0.9648880 0.0077530
 0.9755280 0.0068290
 0.9842920 0.0061110
 0.9911440 0.0055780
 0.9960570 0.0052130
 0.9990130 0.0050010
 1.0000000 0.0049310

 0.0000000 0.0000000
 0.0009870 -.0052160
 0.0039430 -.0104160
 0.0088560 -.0154420
 0.0157080 -.0201210
 0.0244720 -.0243480
 0.0351120 -.0281210
 0.0475860 -.0315040
 0.0618470 -.0345470
 0.0778360 -.0372010
 0.0954920 -.0393320
 0.1147430 -.0408480
 0.1355160 -.0418560
 0.1577260 -.0425490
 0.1812880 -.0425030
 0.2061070 -.0421770
 0.2320870 -.0413890
 0.2591230 -.0401610
 0.2871100 -.0385330
 0.3159380 -.0365570
 0.3454920 -.0342970
 0.3756550 -.0318210
 0.4063090 -.0291990
 0.4373330 -.0265000
 0.4686050 -.0237870
 0.5000000 -.0211170
 0.5313950 -.0185370
 0.5626670 -.0160860
 0.5936910 -.0137910
 0.6243450 -.0116740
 0.6545080 -.0097490
 0.6840620 -.0080230
 0.7128900 -.0065020
 0.7408770 -.0051890
 0.7679130 -.0040830
 0.7938930 -.0031840
 0.8187120 -.0024920
 0.8422740 -.0020010
 0.8644840 -.0017060
 0.8852570 -.0015970
 0.9045080 -.0016570
 0.9221640 -.0018650
 0.9381530 -.0021960
 0.9524140 -.0026170
 0.9648880 -.0030920
 0.9755280 -.0035830
 0.9842920 -.0040500
 0.9911440 -.0044580
 0.9960570 -.0047740
 0.9990130 -.0049740
 1.0000000 -.0050420
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

DF 101 AIRFOILPreviewDetails
DF102PreviewDetails
PT40PreviewDetails
St. CYR 171 (Royer)PreviewDetails
NACA 2412PreviewDetails

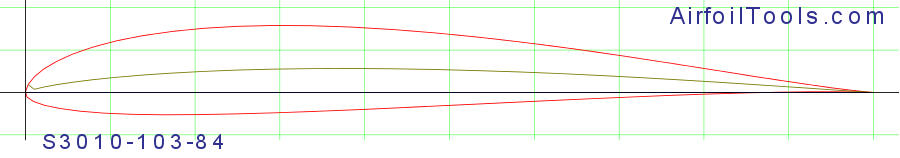

S3010-103-84PreviewDetails
E201 (11.88%)PreviewDetails
RG 15A-1.8/11.0 AIRFOILPreviewDetails
NACA 2.5411PreviewDetails
FX 68-H-120PreviewDetails

Polars for OAF117 AIRFOIL (oaf117-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   oaf117-il50,000928.3 at α=8.25°Mach=0 Ncrit=9Xfoil predictionDetails
   oaf117-il50,000534.8 at α=7.25°Mach=0 Ncrit=5Xfoil predictionDetails
   oaf117-il100,000946.9 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   oaf117-il100,000549.5 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   oaf117-il200,000964.2 at α=6.5°Mach=0 Ncrit=9Xfoil predictionDetails
   oaf117-il200,000563 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   oaf117-il500,000984.4 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   oaf117-il500,000578.5 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   oaf117-il1,000,000996.8 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   oaf117-il1,000,000589.7 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
