NACA 2.5411 (naca2411-il)

NACA 2.5411 - NACA 2411 airfoil


Airfoil naca2411-il
Details Dat file Parser
(naca2411-il) NACA 2.5411
NACA 2411 airfoil
Max thickness 11% at 29.5% chord.
Max camber 2.5% at 39.6% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
  NACA 2.5411
  1.00000  0.00000
  0.99730  0.00059
  0.98918  0.00235
  0.97578  0.00520
  0.95720  0.00906
  0.93365  0.01380
  0.90535  0.01927
  0.87260  0.02532
  0.83577  0.03175
  0.79520  0.03839
  0.75138  0.04506
  0.70475  0.05158
  0.65583  0.05777
  0.60513  0.06347
  0.55322  0.06852
  0.50067  0.07276
  0.44807  0.07606
  0.39597  0.07830
  0.34455  0.07912
  0.29485  0.07831
  0.24745  0.07588
  0.20292  0.07193
  0.16175  0.06659
  0.12448  0.06006
  0.09148  0.05253
  0.06317  0.04427
  0.03985  0.03553
  0.02170  0.02654
  0.00897  0.01752
  0.00172  0.00862
  0.00000  0.00000
  0.00375 -0.00794
  0.01290 -0.01483
  0.02723 -0.02061
  0.04662 -0.02531
  0.07080 -0.02893
  0.09948 -0.03151
  0.13238 -0.03310
  0.16912 -0.03379
  0.20932 -0.03368
  0.25255 -0.03291
  0.29842 -0.03165
  0.34642 -0.03005
  0.39612 -0.02830
  0.44740 -0.02637
  0.49933 -0.02415
  0.55132 -0.02174
  0.60280 -0.01925
  0.65320 -0.01677
  0.70198 -0.01436
  0.74862 -0.01208
  0.79257 -0.00994
  0.83337 -0.00798
  0.87053 -0.00621
  0.90368 -0.00463
  0.93238 -0.00326
  0.95633 -0.00211
  0.97528 -0.00120
  0.98895 -0.00054
  0.99723 -0.00013
  1.00000  0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

DF102PreviewDetails

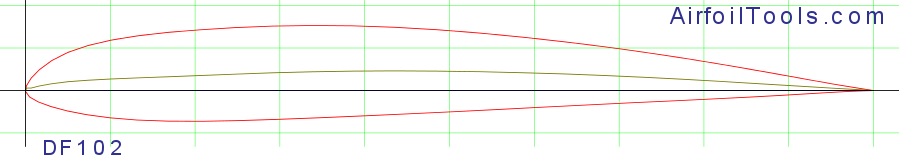

DF 101 AIRFOILPreviewDetails
E205 (10.48%)PreviewDetails
MH 70 11.08%PreviewDetails
RG 15A-1.8/11.0 AIRFOILPreviewDetails
K3311 (smoothed)PreviewDetails
NACA CYHPreviewDetails
E220 (11.48%)PreviewDetails
K3311 (original)PreviewDetails
PT40PreviewDetails

Polars for NACA 2.5411 (naca2411-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   naca2411-il50,000934.3 at α=7.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2411-il50,000535.9 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   naca2411-il100,000952.9 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2411-il100,000552.2 at α=5.75°Mach=0 Ncrit=5Xfoil predictionDetails
   naca2411-il200,000971.2 at α=5.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2411-il200,000567.4 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
   naca2411-il500,000995.6 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2411-il500,000586.6 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
   naca2411-il1,000,0009113.7 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2411-il1,000,000597.7 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
