NASA SC(2)-0010 AIRFOIL (sc20010-il)

NASA SC(2)-0010 AIRFOIL - NASA SC(2)-0010 airfoil (NASA TP-2969)


Airfoil sc20010-il
Details Dat file Parser
(sc20010-il) NASA SC(2)-0010 AIRFOIL
NASA SC(2)-0010 airfoil (NASA TP-2969)
Max thickness 10% at 37% chord.
Max camber 0% at 0% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
NASA SC(2)-0010 AIRFOIL
      103.      103.

 0.000000  0.000000
 0.002000  0.007600
 0.005000  0.011600
 0.010000  0.015500
 0.020000  0.020700
 0.030000  0.024300
 0.040000  0.027000
 0.050000  0.029200
 0.060000  0.031100
 0.070000  0.032800
 0.080000  0.034300
 0.090000  0.035700
 0.100000  0.036900
 0.110000  0.038000
 0.120000  0.039000
 0.130000  0.040000
 0.140000  0.040900
 0.150000  0.041700
 0.160000  0.042500
 0.170000  0.043200
 0.180000  0.043900
 0.190000  0.044500
 0.200000  0.045100
 0.210000  0.045600
 0.220000  0.046100
 0.230000  0.046600
 0.240000  0.047000
 0.250000  0.047400
 0.260000  0.047800
 0.270000  0.048100
 0.280000  0.048400
 0.290000  0.048700
 0.300000  0.049000
 0.310000  0.049200
 0.320000  0.049400
 0.330000  0.049600
 0.340000  0.049700
 0.350000  0.049800
 0.360000  0.049900
 0.370000  0.050000
 0.380000  0.050000
 0.390000  0.050000
 0.400000  0.050000
 0.410000  0.050000
 0.420000  0.049900
 0.430000  0.049800
 0.440000  0.049700
 0.450000  0.049600
 0.460000  0.049400
 0.470000  0.049200
 0.480000  0.049000
 0.490000  0.048700
 0.500000  0.048400
 0.510000  0.048100
 0.520000  0.047800
 0.530000  0.047400
 0.540000  0.047000
 0.550000  0.046500
 0.560000  0.046000
 0.570000  0.045500
 0.580000  0.044900
 0.590000  0.044300
 0.600000  0.043600
 0.610000  0.042800
 0.620000  0.042000
 0.630000  0.041100
 0.640000  0.040200
 0.650000  0.039200
 0.660000  0.038200
 0.670000  0.037150
 0.680000  0.036100
 0.690000  0.035050
 0.700000  0.034000
 0.710000  0.032950
 0.720000  0.031900
 0.730000  0.030850
 0.740000  0.029800
 0.750000  0.028750
 0.760000  0.027700
 0.770000  0.026650
 0.780000  0.025600
 0.790000  0.024550
 0.800000  0.023500
 0.810000  0.022450
 0.820000  0.021400
 0.830000  0.020350
 0.840000  0.019300
 0.850000  0.018250
 0.860000  0.017200
 0.870000  0.016150
 0.880000  0.015100
 0.890000  0.014050
 0.900000  0.013000
 0.910000  0.011950
 0.920000  0.010900
 0.930000  0.009850
 0.940000  0.008800
 0.950000  0.007750
 0.960000  0.006700
 0.970000  0.005650
 0.980000  0.004600
 0.990000  0.003550
 1.000000  0.002500

 0.000000  0.000000
 0.002000 -0.007600
 0.005000 -0.011600
 0.010000 -0.015500
 0.020000 -0.020700
 0.030000 -0.024300
 0.040000 -0.027000
 0.050000 -0.029200
 0.060000 -0.031100
 0.070000 -0.032800
 0.080000 -0.034300
 0.090000 -0.035700
 0.100000 -0.036900
 0.110000 -0.038000
 0.120000 -0.039000
 0.130000 -0.040000
 0.140000 -0.040900
 0.150000 -0.041700
 0.160000 -0.042500
 0.170000 -0.043200
 0.180000 -0.043900
 0.190000 -0.044500
 0.200000 -0.045100
 0.210000 -0.045600
 0.220000 -0.046100
 0.230000 -0.046600
 0.240000 -0.047000
 0.250000 -0.047400
 0.260000 -0.047800
 0.270000 -0.048100
 0.280000 -0.048400
 0.290000 -0.048700
 0.300000 -0.049000
 0.310000 -0.049200
 0.320000 -0.049400
 0.330000 -0.049600
 0.340000 -0.049700
 0.350000 -0.049800
 0.360000 -0.049900
 0.370000 -0.050000
 0.380000 -0.050000
 0.390000 -0.050000
 0.400000 -0.050000
 0.410000 -0.050000
 0.420000 -0.049900
 0.430000 -0.049800
 0.440000 -0.049700
 0.450000 -0.049600
 0.460000 -0.049400
 0.470000 -0.049200
 0.480000 -0.049000
 0.490000 -0.048700
 0.500000 -0.048400
 0.510000 -0.048100
 0.520000 -0.047800
 0.530000 -0.047400
 0.540000 -0.047000
 0.550000 -0.046500
 0.560000 -0.046000
 0.570000 -0.045500
 0.580000 -0.044900
 0.590000 -0.044300
 0.600000 -0.043600
 0.610000 -0.042800
 0.620000 -0.042000
 0.630000 -0.041100
 0.640000 -0.040200
 0.650000 -0.039200
 0.660000 -0.038200
 0.670000 -0.037150
 0.680000 -0.036100
 0.690000 -0.035050
 0.700000 -0.034000
 0.710000 -0.032950
 0.720000 -0.031900
 0.730000 -0.030850
 0.740000 -0.029800
 0.750000 -0.028750
 0.760000 -0.027700
 0.770000 -0.026650
 0.780000 -0.025600
 0.790000 -0.024550
 0.800000 -0.023500
 0.810000 -0.022450
 0.820000 -0.021400
 0.830000 -0.020350
 0.840000 -0.019300
 0.850000 -0.018250
 0.860000 -0.017200
 0.870000 -0.016150
 0.880000 -0.015100
 0.890000 -0.014050
 0.900000 -0.013000
 0.910000 -0.011950
 0.920000 -0.010900
 0.930000 -0.009850
 0.940000 -0.008800
 0.950000 -0.007750
 0.960000 -0.006700
 0.970000 -0.005650
 0.980000 -0.004600
 0.990000 -0.003550
 1.000000 -0.002500
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

RAE 102 AIRFOILPreviewDetails

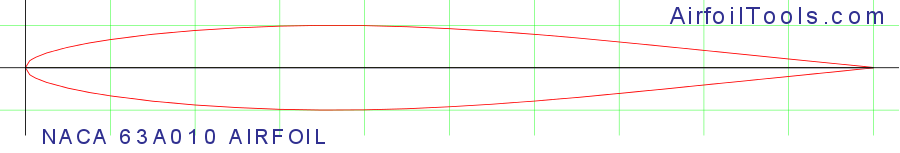

NACA 63A010 AIRFOILPreviewDetails
NACA 0010-34PreviewDetails
NACA 0010-64PreviewDetails
NACA 64A-010 10.0%PreviewDetails
RAE 103 AIRFOILPreviewDetails
HQ 0/10 AIRFOILPreviewDetails
FX 79-L-100PreviewDetails
LWK 80-100PreviewDetails
RYAN BQM-34 FIREBEE WING AIRFOILPreviewDetails

Polars for NASA SC(2)-0010 AIRFOIL (sc20010-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   sc20010-il50,000923.7 at α=3.75°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20010-il50,000522.9 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20010-il100,000933.1 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20010-il100,000528.7 at α=5.75°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20010-il200,000939.5 at α=3°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20010-il200,000539 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20010-il500,000952 at α=6.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20010-il500,000556.6 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20010-il1,000,000967.7 at α=7.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20010-il1,000,000570.1 at α=8.5°Mach=0 Ncrit=5Xfoil predictionDetails
