HAWKER TEMPEST 61% SEMISPAN AIRFOIL (tempest2-il)

HAWKER TEMPEST 61% SEMISPAN AIRFOIL - Hawker Tempest 61% semispan airfoil (NPL?)


Airfoil tempest2-il
Details Dat file Parser
(tempest2-il) HAWKER TEMPEST 61% SEMISPAN AIRFOIL
Hawker Tempest 61% semispan airfoil (NPL?)
Max thickness 12% at 37.3% chord.
Max camber 0.9% at 39.3% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
HAWKER TEMPEST 61% SEMISPAN AIRFOIL
      61.0      60.0

 0.0000120 0.0001500
 0.0002000 0.0023140
 0.0010260 0.0045760
 0.0024920 0.0069180
 0.0046470 0.0093700
 0.0076300 0.0120250
 0.0117200 0.0150270
 0.0174370 0.0185360
 0.0255160 0.0227290
 0.0365960 0.0275640
 0.0504980 0.0326500
 0.0663530 0.0375190
 0.0834210 0.0419540
 0.1012780 0.0459340
 0.1196660 0.0495020
 0.1384110 0.0526960
 0.1573710 0.0555340
 0.1764950 0.0580400
 0.1957600 0.0602290
 0.2151750 0.0621360
 0.2347110 0.0637890
 0.2543360 0.0652080
 0.2740220 0.0664050
 0.2937520 0.0673900
 0.3135150 0.0681690
 0.3332990 0.0687480
 0.3531000 0.0691270
 0.3729100 0.0693130
 0.3927210 0.0693020
 0.4125280 0.0690980
 0.4323260 0.0686950
 0.4521520 0.0680940
 0.4720020 0.0673100
 0.4918940 0.0663480
 0.5118240 0.0652300
 0.5317800 0.0639620
 0.5517620 0.0625590
 0.5717410 0.0610270
 0.5917240 0.0593680
 0.6116860 0.0575870
 0.6316330 0.0556760
 0.6515620 0.0536390
 0.6714780 0.0514690
 0.6913930 0.0491720
 0.7112990 0.0467480
 0.7312170 0.0442010
 0.7511390 0.0415390
 0.7710740 0.0387680
 0.7910060 0.0358970
 0.8109410 0.0329290
 0.8308550 0.0298690
 0.8507540 0.0267150
 0.8706200 0.0234660
 0.8904590 0.0201180
 0.9102780 0.0166640
 0.9300750 0.0131100
 0.9497560 0.0094860
 0.9686780 0.0059370
 0.9847450 0.0028940
 0.9959970 0.0007590
 1.0000000 0.0000000

 0.0000120 0.0001500
 0.0004590 -.0020370
 0.0015850 -.0042740
 0.0034080 -.0065110
 0.0059830 -.0087900
 0.0094680 -.0112270
 0.0142200 -.0139480
 0.0208470 -.0171010
 0.0301270 -.0207650
 0.0424910 -.0247500
 0.0574540 -.0286080
 0.0741450 -.0320300
 0.0919650 -.0349720
 0.1105600 -.0375060
 0.1296480 -.0397090
 0.1490380 -.0416420
 0.1686100 -.0433330
 0.1882880 -.0448110
 0.2080540 -.0460870
 0.2278820 -.0471800
 0.2477840 -.0481050
 0.2677270 -.0488760
 0.2877160 -.0495020
 0.3077220 -.0499940
 0.3277460 -.0503510
 0.3477740 -.0505790
 0.3678050 -.0506730
 0.3878450 -.0506410
 0.4078800 -.0504780
 0.4279280 -.0501870
 0.4479710 -.0497720
 0.4680320 -.0492310
 0.4881040 -.0485740
 0.5081920 -.0478010
 0.5283050 -.0469230
 0.5484290 -.0459460
 0.5685780 -.0448760
 0.5887270 -.0437220
 0.6088800 -.0424820
 0.6290240 -.0411620
 0.6491510 -.0397560
 0.6692640 -.0382630
 0.6893470 -.0366790
 0.7094190 -.0349970
 0.7294710 -.0332170
 0.7495230 -.0313350
 0.7695690 -.0293550
 0.7896230 -.0272790
 0.8096720 -.0251130
 0.8297200 -.0228560
 0.8497500 -.0205150
 0.8697580 -.0180830
 0.8897330 -.0155580
 0.9096820 -.0129330
 0.9296060 -.0102060
 0.9494120 -.0074010
 0.9684610 -.0046360
 0.9846390 -.0022610
 0.9959690 -.0005930
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

R140 12.04% (smoothed)PreviewDetails
R140 (original)PreviewDetails
NASA/LANGLEY RC12-64C AIRFOILPreviewDetails
S8052 (11.88%)PreviewDetails
S4096 (designed for the E-flite UMXPreviewDetails
NPL 9627 AIRFOILPreviewDetails

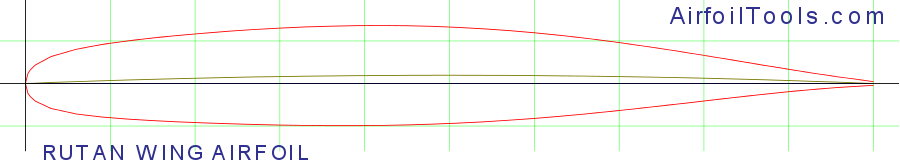

RUTAN WING AIRFOILPreviewDetails
MH 27 11.99%PreviewDetails
S8055 (12%)PreviewDetails
NACA 1412PreviewDetails

Polars for HAWKER TEMPEST 61% SEMISPAN AIRFOIL (tempest2-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   tempest2-il50,000932.6 at α=6.5°Mach=0 Ncrit=9Xfoil predictionDetails
   tempest2-il50,000532 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   tempest2-il100,000949.9 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   tempest2-il100,000547.3 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   tempest2-il200,000965.6 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   tempest2-il200,000555 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   tempest2-il500,000971.9 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   tempest2-il500,000561.5 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   tempest2-il1,000,000979.5 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   tempest2-il1,000,000569.3 at α=8.25°Mach=0 Ncrit=5Xfoil predictionDetails
