GOE 6K AIRFOIL (goe06k-il)

GOE 6K AIRFOIL - Gottingen 6K airfoil


Airfoil goe06k-il
Details Dat file Parser
(goe06k-il) GOE 6K AIRFOIL
Gottingen 6K airfoil
Max thickness 7.5% at 50% chord.
Max camber 3.1% at 50% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
GOE 6K AIRFOIL
       16.       16.

 0.0000000 0.0000000
 0.0250000 0.0157100
 0.0500000 0.0234300
 0.0750000 0.0295400
 0.1000000 0.0349600
 0.1500000 0.0436900
 0.2000000 0.0506200
 0.3000000 0.0607800
 0.4000000 0.0665400
 0.5000000 0.0685000
 0.6000000 0.0668600
 0.7000000 0.0594200
 0.8000000 0.0467800
 0.9000000 0.0279400
 0.9500000 0.0162700
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0250000 -.0070900
 0.0500000 -.0079700
 0.0750000 -.0085500
 0.1000000 -.0088400
 0.1500000 -.0093100
 0.2000000 -.0090800
 0.3000000 -.0082200
 0.4000000 -.0073600
 0.5000000 -.0065000
 0.6000000 -.0056400
 0.7000000 -.0047800
 0.8000000 -.0039200
 0.9000000 -.0030600
 0.9500000 -.0026300
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 11K AIRFOILPreviewDetails
WORTMANN FX 74-080PreviewDetails
WORTMANN FX 80-080PreviewDetails

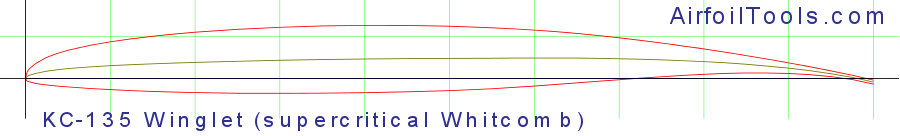

KC-135 Winglet (supercriticalPreviewDetails
HQ 3.0/8 AIRFOILPreviewDetails
HQ 3.5/8 AIRFOILPreviewDetails
HQ 2.5/8 AIRFOILPreviewDetails
EPPLER 908 AIRFOILPreviewDetails
PROPFAN CRUISE MISSILE WING AIRFOILPreviewDetails
Supermarine 371-II (tip)PreviewDetails

Polars for GOE 6K AIRFOIL (goe06k-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   goe06k-il50,000926.4 at α=5.75°Mach=0 Ncrit=9Xfoil predictionDetails
   goe06k-il50,000528.3 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe06k-il100,000945.7 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   goe06k-il100,000544.6 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe06k-il200,000974.4 at α=3.75°Mach=0 Ncrit=9Xfoil predictionDetails
   goe06k-il200,000577 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe06k-il500,0009117.9 at α=2.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe06k-il500,0005116.5 at α=2.25°Mach=0 Ncrit=5Xfoil predictionDetails
   goe06k-il1,000,0009147.6 at α=1.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe06k-il1,000,0005132.8 at α=1.25°Mach=0 Ncrit=5Xfoil predictionDetails
