HQ 3.5/8 AIRFOIL (hq358-il)

HQ 3.5/8 AIRFOIL - Quabeck HQ 3.5/8 R/C sailplane airfoil


Airfoil hq358-il
Details Dat file Parser
(hq358-il) HQ 3.5/8 AIRFOIL
Quabeck HQ 3.5/8 R/C sailplane airfoil
Max thickness 8% at 35% chord.
Max camber 3.5% at 50% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
HQ 3.5/8 AIRFOIL
       39.       39.

 0.0000000 0.0000000
 0.0025000 0.0060500
 0.0050000 0.0092400
 0.0087500 0.0127700
 0.0125000 0.0157100
 0.0187500 0.0199300
 0.0250000 0.0236100
 0.0375000 0.0298100
 0.0500000 0.0349700
 0.0750000 0.0433900
 0.1000000 0.0500000
 0.1250000 0.0553300
 0.1500000 0.0595800
 0.1750000 0.0629100
 0.2000000 0.0655100
 0.2250000 0.0675900
 0.2500000 0.0693200
 0.2750000 0.0708200
 0.3000000 0.0720300
 0.3250000 0.0729100
 0.3500000 0.0734300
 0.3750000 0.0736800
 0.4000000 0.0736700
 0.4500000 0.0729300
 0.5000000 0.0711500
 0.5500000 0.0682600
 0.6000000 0.0642600
 0.6500000 0.0591700
 0.7000000 0.0531400
 0.7500000 0.0461000
 0.8000000 0.0381500
 0.8250000 0.0338100
 0.8500000 0.0293300
 0.8750000 0.0247100
 0.9000000 0.0199600
 0.9250000 0.0151100
 0.9500000 0.0100800
 0.9750000 0.0049400
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0025000 -.0022100
 0.0050000 -.0030500
 0.0087500 -.0041400
 0.0125000 -.0050100
 0.0187500 -.0060400
 0.0250000 -.0066100
 0.0375000 -.0073000
 0.0500000 -.0076300
 0.0750000 -.0079100
 0.1000000 -.0079900
 0.1250000 -.0080300
 0.1500000 -.0080500
 0.1750000 -.0080100
 0.2000000 -.0079200
 0.2250000 -.0077700
 0.2500000 -.0075700
 0.2750000 -.0073200
 0.3000000 -.0070400
 0.3250000 -.0067000
 0.3500000 -.0062600
 0.3750000 -.0056800
 0.4000000 -.0049600
 0.4500000 -.0032400
 0.5000000 -.0011800
 0.5500000 0.0011500
 0.6000000 0.0036400
 0.6500000 0.0061000
 0.7000000 0.0082100
 0.7500000 0.0097500
 0.8000000 0.0103900
 0.8250000 0.0102300
 0.8500000 0.0097300
 0.8750000 0.0087900
 0.9000000 0.0075700
 0.9250000 0.0059300
 0.9500000 0.0042500
 0.9750000 0.0022400
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

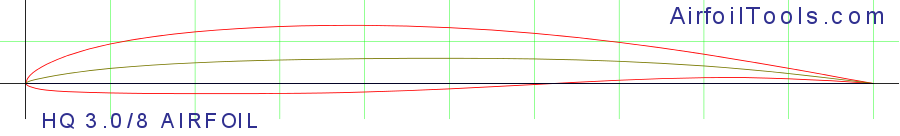

HQ 3.0/8 AIRFOILPreviewDetails
HQ 2.5/8 AIRFOILPreviewDetails
HQ 3.5/9 AIRFOILPreviewDetails
SA7025PreviewDetails
GOE 565 AIRFOILPreviewDetails
HQ 3.0/9 AIRFOILPreviewDetails
SA7026PreviewDetails
E174 (Dicke 8.92%)PreviewDetails
A18 (original)PreviewDetails
S4053PreviewDetails

Polars for HQ 3.5/8 AIRFOIL (hq358-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   hq358-il50,000940.9 at α=6.25°Mach=0 Ncrit=9Xfoil predictionDetails
   hq358-il50,000543.3 at α=5.75°Mach=0 Ncrit=5Xfoil predictionDetails
   hq358-il100,000964.7 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   hq358-il100,000563.5 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   hq358-il200,000990.2 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   hq358-il200,000584.2 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
   hq358-il500,0009123.6 at α=3.25°Mach=0 Ncrit=9Xfoil predictionDetails
   hq358-il500,0005106 at α=2.25°Mach=0 Ncrit=5Xfoil predictionDetails
   hq358-il1,000,0009144.9 at α=2.25°Mach=0 Ncrit=9Xfoil predictionDetails
   hq358-il1,000,0005109.6 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
