WORTMANN FX 74-080 (fx74080-il)

WORTMANN FX 74-080 - Wortmann FX 74-080 airfoil


Airfoil fx74080-il
Details Dat file Parser
(fx74080-il) WORTMANN FX 74-080
Wortmann FX 74-080 airfoil
Max thickness 8.2% at 43.5% chord.
Max camber 4.3% at 46.7% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
WORTMANN FX 74-080
1.00000     0.00000
0.99893     0.00127
0.99572     0.00237
0.99039     0.00383
0.98296     0.00557
0.97347     0.00767
0.96194     0.01014
0.94844     0.01297
0.93301     0.01622
0.91573     0.01989
0.89668     0.02391
0.87592     0.02826
0.85355     0.03296
0.82967     0.03805
0.80438     0.04354
0.77779     0.04936
0.75000     0.05535
0.72114     0.06119
0.69134     0.06647
0.66072     0.07098
0.62941     0.07470
0.59755     0.07778
0.56526     0.08027
0.53270     0.08217
0.50000     0.08339
0.46730     0.08386
0.43474     0.08357
0.40245     0.08258
0.37059     0.08097
0.33928     0.07883
0.30866     0.07617
0.27886     0.07306
0.25000     0.06953
0.22221     0.06562
0.19562     0.06138
0.17033     0.05686
0.14645     0.05209
0.12408     0.04713
0.10332     0.04205
0.08427     0.03691
0.06699     0.03176
0.05156     0.02667
0.03806     0.02173
0.02653     0.01702
0.01704     0.01266
0.00961     0.00881
0.00428     0.00543
0.00107     0.00248
0.00000     0.00000
0.00107     -0.00204
0.00428     -0.00359
0.00961     -0.00472
0.01704     -0.00551
0.02653     -0.00593
0.03806     -0.00609
0.05156     -0.00605
0.06699     -0.00584
0.08427     -0.00549
0.10332     -0.00505
0.12408     -0.00452
0.14645     -0.00393
0.17033     -0.00329
0.19562     -0.00263
0.22221     -0.00196
0.25000     -0.00129
0.27886     -0.00064
0.30866     -0.00001
0.33928     0.00058
0.37059     0.00113
0.40245     0.00162
0.43474     0.00206
0.46730     0.00243
0.50000     0.00275
0.53270     0.00305
0.56526     0.00335
0.59755     0.00364
0.62941     0.00388
0.66072     0.00403
0.69134     0.00407
0.72114     0.00412
0.75000     0.00436
0.77779     0.00489
0.80438     0.00560
0.82967     0.00625
0.85355     0.00662
0.87592     0.00667
0.89668     0.00644
0.91573     0.00600
0.93301     0.00539
0.94844     0.00460
0.96194     0.00368
0.97347     0.00270
0.98296     0.00174
0.99039     0.00080
0.99572     0.00009
0.99893     0.00002
1.00000     0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 610 B AIRFOILPreviewDetails
GOE 116 (MVA MK.3) AIRFOILPreviewDetails
HQ 3.5/8 AIRFOILPreviewDetails
HQ 3.5/9 AIRFOILPreviewDetails
GOE 6K AIRFOILPreviewDetails

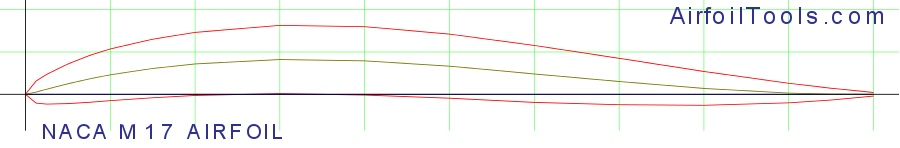

NACA M17 AIRFOILPreviewDetails
SA7026PreviewDetails
HQ 3.0/8 AIRFOILPreviewDetails
NACA 11-H-09 AIRFOILPreviewDetails
lrn1007PreviewDetails

Polars for WORTMANN FX 74-080 (fx74080-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   fx74080-il50,000924.7 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   fx74080-il50,000527.1 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   fx74080-il100,000939.7 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   fx74080-il100,000558 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   fx74080-il200,000980.3 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   fx74080-il200,000587 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
   fx74080-il500,0009134.4 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   fx74080-il500,0005131.5 at α=3.25°Mach=0 Ncrit=5Xfoil predictionDetails
   fx74080-il1,000,0009173.9 at α=3°Mach=0 Ncrit=9Xfoil predictionDetails
   fx74080-il1,000,0005164.5 at α=2.5°Mach=0 Ncrit=5Xfoil predictionDetails
