EPPLER 428 AIRFOIL (e428-il)

EPPLER 428 AIRFOIL - Eppler E428 airfoil


Airfoil e428-il
Details Dat file Parser
(e428-il) EPPLER 428 AIRFOIL
Eppler E428 airfoil
Max thickness 11.1% at 17.2% chord.
Max camber 0.5% at 50.6% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
EPPLER 428 AIRFOIL
       20.       21.

 0.0002000 0.0023000
 0.0040000 0.0109000
 0.0130000 0.0200000
 0.0250000 0.0289000
 0.0420000 0.0372000
 0.0626000 0.0445000
 0.0870000 0.0505000
 0.1160000 0.0549000
 0.1490000 0.0577000
 0.2270000 0.0598000
 0.3180000 0.0589000
 0.4170000 0.0541000
 0.5200000 0.0463000
 0.6240000 0.0366000
 0.7240000 0.0266000
 0.8150000 0.0176000
 0.8920000 0.0104000
 0.9500000 0.0049000
 0.9871800 0.0012000
 1.0000000 0.0000000

 0.0002000 0.0023000
 0.0010000 -.0059000
 0.0080000 -.0143000
 0.0190000 -.0227000
 0.0340000 -.0307000
 0.0540000 -.0377000
 0.0770000 -.0436000
 0.1050000 -.0481000
 0.1360000 -.0511000
 0.1720000 -.0525000
 0.2540000 -.0510000
 0.3010000 -.0490000
 0.4010000 -.0433000
 0.5060000 -.0354000
 0.6130000 -.0263000
 0.7150000 -.0175000
 0.8090000 -.0102000
 0.8880000 -.0050000
 0.9490000 -.0020000
 0.9870000 -.0006000
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

EPPLER 426 AIRFOILPreviewDetails

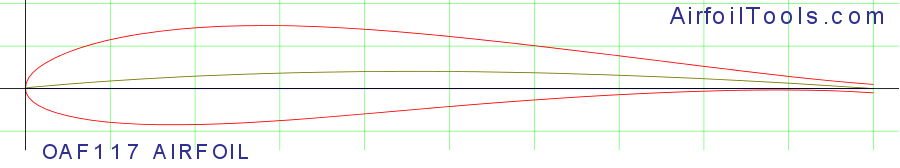

OAF117 AIRFOILPreviewDetails
SD8020-010-88PreviewDetails
St. CYR 171 (Royer)PreviewDetails
OAF128 AIRFOILPreviewDetails
NACA 1410PreviewDetails
GOE 416A AIRFOILPreviewDetails
E224 (10.17%)PreviewDetails
E226 (10.19%)PreviewDetails
NACA 1412PreviewDetails

Polars for EPPLER 428 AIRFOIL (e428-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   e428-il50,000922.1 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e428-il50,000526 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   e428-il100,000932.1 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   e428-il100,000537.9 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e428-il200,000947.9 at α=9.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e428-il200,000553.4 at α=8.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e428-il500,000974.5 at α=8.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e428-il500,000573.2 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e428-il1,000,000991.1 at α=8°Mach=0 Ncrit=9Xfoil predictionDetails
   e428-il1,000,000586.1 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
