NACA M27 AIRFOIL (m27-il)

NACA M27 AIRFOIL - NACA/Munk M-27 airfoil


Airfoil m27-il
Details Dat file Parser
(m27-il) NACA M27 AIRFOIL
NACA/Munk M-27 airfoil
Max thickness 12% at 30.1% chord.
Max camber 8.4% at 30.1% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
NACA M27 AIRFOIL
       17.       17.

 0.0000000 0.0000000
 0.0126100 0.0244500
 0.0251600 0.0382900
 0.0502600 0.0598800
 0.0753300 0.0774800
 0.1004000 0.0920700
 0.1504900 0.1143500
 0.2005600 0.1297400
 0.3006200 0.1434100
 0.4006000 0.1393800
 0.5005300 0.1228500
 0.6004200 0.0988200
 0.7003100 0.0712900
 0.8001900 0.0436600
 0.9000800 0.0195300
 0.9500400 0.0101100
 1.0000000 0.0026000

 0.0000000 0.0000000
 0.0124500 -.0118500
 0.0249500 -.0118100
 0.0499700 -.0080100
 0.0749900 -.0025200
 0.1000100 0.0028700
 0.1500500 0.0118500
 0.2000800 0.0186400
 0.3001000 0.0239100
 0.4000900 0.0205800
 0.5000500 0.0115500
 0.6000000 0.0005200
 0.6999600 -.0093100
 0.7999300 -.0151400
 0.8999400 -.0137700
 0.9499600 -.0094800
 1.0000000 -.0026000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

CHEN AIRFOILPreviewDetails
GOE 447 AIRFOILPreviewDetails
GOE 630 AIRFOILPreviewDetails
E423PreviewDetails
GOE 366 AIRFOILPreviewDetails

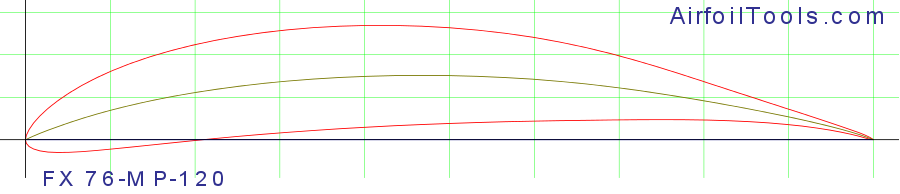

FX 76-MP-120PreviewDetails
FX 74-Cl5-140 MOD (smoothed)PreviewDetails
NACA M24 AIRFOILPreviewDetails
NACA M8 AIRFOILPreviewDetails
GOE 320 (HANSA-BRANDENBURG II.1)PreviewDetails

Polars for NACA M27 AIRFOIL (m27-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   m27-il50,00094.7 at α=9.5°Mach=0 Ncrit=9Xfoil predictionDetails
   m27-il50,00059.6 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
   m27-il100,00099 at α=0.5°Mach=0 Ncrit=9Xfoil predictionDetails
   m27-il100,000541.3 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   m27-il200,000962.8 at α=10.25°Mach=0 Ncrit=9Xfoil predictionDetails
   m27-il200,000570.1 at α=7.5°Mach=0 Ncrit=5Xfoil predictionDetails
   m27-il500,0009105.5 at α=8.25°Mach=0 Ncrit=9Xfoil predictionDetails
   m27-il500,0005105 at α=7.25°Mach=0 Ncrit=5Xfoil predictionDetails
   m27-il1,000,0009135.9 at α=7.5°Mach=0 Ncrit=9Xfoil predictionDetails
   m27-il1,000,0005126.2 at α=7.5°Mach=0 Ncrit=5Xfoil predictionDetails
