E423 (e423-il)

E423 - Eppler E423 high lift airfoil


Airfoil e423-il
Details Dat file Parser
(e423-il) E423
Eppler E423 high lift airfoil
Max thickness 12.5% at 23.7% chord.
Max camber 9.5% at 41.4% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
E423
  1.00000  0.00000
  0.99655  0.00159
  0.98706  0.00650
  0.97304  0.01434
  0.95530  0.02381
  0.93358  0.03376
  0.90734  0.04400
  0.87671  0.05481
  0.84221  0.06620
  0.80436  0.07803
  0.76373  0.09010
  0.72090  0.10215
  0.67644  0.11391
  0.63092  0.12506
  0.58491  0.13524
  0.53893  0.14410
  0.49347  0.15116
  0.44870  0.15593
  0.40464  0.15828
  0.36149  0.15824
  0.31947  0.15590
  0.27885  0.15138
  0.23987  0.14485
  0.20286  0.13657
  0.16816  0.12676
  0.13611  0.11562
  0.10700  0.10337
  0.08106  0.09023
  0.05852  0.07646
  0.03953  0.06232
  0.02421  0.04812
  0.01262  0.03419
  0.00481  0.02093
  0.00071  0.00879
  0.00002  0.00088
  0.00033 -0.00192
  0.00071 -0.00362
  0.00125 -0.00518
  0.00157 -0.00590
  0.00194 -0.00656
  0.00237 -0.00717
  0.00288 -0.00771
  0.00348 -0.00823
  0.00415 -0.00874
  0.00571 -0.00969
  0.00751 -0.01057
  0.01065 -0.01177
  0.01365 -0.01266
  0.02892 -0.01485
  0.04947 -0.01482
  0.07533 -0.01236
  0.10670 -0.00740
  0.14385 -0.00002
  0.18727  0.00922
  0.23688  0.01913
  0.29196  0.02865
  0.35163  0.03687
  0.41449  0.04283
  0.47867  0.04626
  0.54275  0.04760
  0.60579  0.04715
  0.66690  0.04501
  0.72503  0.04126
  0.77912  0.03625
  0.82836  0.03050
  0.87219  0.02444
  0.91012  0.01844
  0.94179  0.01286
  0.96692  0.00794
  0.98519  0.00390
  0.99629  0.00106
  1.00000  0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

FX 74-Cl5-140 MOD (smoothed)PreviewDetails
GOE 448 AIRFOILPreviewDetails
CH10 (smoothed)PreviewDetails
S1223PreviewDetails

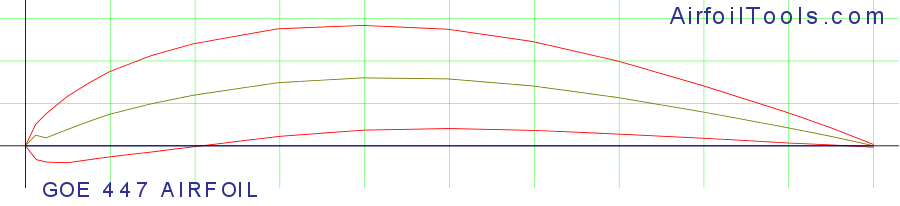

GOE 447 AIRFOILPreviewDetails
GOE 233 (MVA CA4) AIRFOILPreviewDetails
NACA M27 AIRFOILPreviewDetails
FX74_CL5_140PreviewDetails
GOE 234 (MVA CA5) AIRFOILPreviewDetails
GOE 630 AIRFOILPreviewDetails

Polars for E423 (e423-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   e423-il50,00096 at α=7°Mach=0 Ncrit=9Xfoil predictionDetails
   e423-il50,000513.9 at α=2.25°Mach=0 Ncrit=5Xfoil predictionDetails
   e423-il100,000912.5 at α=0.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e423-il100,000551.9 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   e423-il200,000973.7 at α=9.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e423-il200,000584.3 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   e423-il500,0009123.4 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e423-il500,0005120.6 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   e423-il1,000,0009156.5 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e423-il1,000,0005145.2 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
