Griffith 30% Suction Airfoil (griffith30symsuction-il)

Griffith 30% Suction Airfoil - Griffith 30% suction airfoil


Airfoil griffith30symsuction-il
Details Dat file Parser
(griffith30symsuction-il) Griffith 30% Suction Airfoil
Griffith 30% suction airfoil
Max thickness 30.6% at 49.3% chord.
Max camber 0% at 0% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
Griffith 30% Suction Airfoil
   1.000000       0.001000
   0.982693       0.001731
   0.952682       0.006072
   0.921669       0.011284
   0.888056       0.019998
   0.860746       0.029582
   0.835936       0.041796
   0.814728       0.057502
   0.790480       0.081301
   0.756160       0.104403
   0.720430       0.120788
   0.683590       0.131748
   0.645940       0.139612
   0.607780       0.145664
   0.569370       0.150001
   0.530990       0.152381
   0.492650       0.152852
   0.454350       0.151863
   0.416380       0.149988
   0.378870       0.147428
   0.342040       0.143962
   0.306090       0.139333
   0.271200       0.133699
   0.237600       0.127444
   0.205490       0.120757
   0.175040       0.113430
   0.146480       0.105132
   0.119990       0.095739
   0.095760       0.085388
   0.073950       0.074535
   0.054680       0.063419
   0.038110       0.051949
   0.024330       0.040344
   0.013380       0.029086
   0.005480       0.018515
   0.000980       0.008705
   0.000000       0.000000
   0.000980      -0.008705
   0.005480      -0.018515
   0.013380      -0.029086
   0.024330      -0.040344
   0.038110      -0.051949
   0.054680      -0.063419
   0.073950      -0.074535
   0.095760      -0.085388
   0.119990      -0.095739
   0.146480      -0.105132
   0.175040      -0.113430
   0.205490      -0.120757
   0.237600      -0.127444
   0.271200      -0.133699
   0.306090      -0.139333
   0.342040      -0.143962
   0.378870      -0.147428
   0.416380      -0.149988
   0.454350      -0.151863
   0.492650      -0.152852
   0.530990      -0.152381
   0.569370      -0.150001
   0.607780      -0.145664
   0.645940      -0.139612
   0.683590      -0.131748
   0.720430      -0.120788
   0.756160      -0.104403
   0.790480      -0.081301
   0.814728      -0.057502
   0.835936      -0.041796
   0.860746      -0.029582
   0.888056      -0.019998
   0.921669      -0.011284
   0.952682      -0.006072
   0.982693      -0.001731
   1.000000      -0.001000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

EPPLER 862 STRUT AIRFOILPreviewDetails
HAM-STD HS1-430 AIRFOILPreviewDetails
EPPLER 863 STRUT AIRFOILPreviewDetails
WORTMANN FX 69-274PreviewDetails
FX 77-W-270SPreviewDetails
FX 77-W-270PreviewDetails

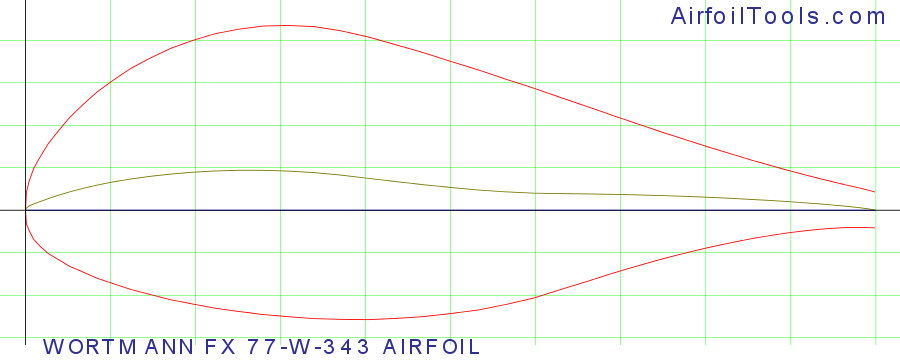

WORTMANN FX 77-W-343 AIRFOILPreviewDetails
NACA 0024PreviewDetails
WORTMANN FX 77-W-258 AIRFOILPreviewDetails
NACA 23024PreviewDetails

Polars for Griffith 30% Suction Airfoil (griffith30symsuction-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   griffith30symsuction-il50,00094.7 at α=9.5°Mach=0 Ncrit=9Xfoil predictionDetails
   griffith30symsuction-il50,000510.8 at α=14.5°Mach=0 Ncrit=5Xfoil predictionDetails
   griffith30symsuction-il100,000917.2 at α=14°Mach=0 Ncrit=9Xfoil predictionDetails
   griffith30symsuction-il100,000511 at α=15.5°Mach=0 Ncrit=5Xfoil predictionDetails
   griffith30symsuction-il200,000913.5 at α=10.75°Mach=0 Ncrit=9Xfoil predictionDetails
   griffith30symsuction-il200,000510.7 at α=15.25°Mach=0 Ncrit=5Xfoil predictionDetails
   griffith30symsuction-il500,000915 at α=9°Mach=0 Ncrit=9Xfoil predictionDetails
   griffith30symsuction-il500,000512.5 at α=14.75°Mach=0 Ncrit=5Xfoil predictionDetails
   griffith30symsuction-il1,000,000917.3 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   griffith30symsuction-il1,000,000515.3 at α=13.75°Mach=0 Ncrit=5Xfoil predictionDetails
