GOE 79 (PFALZ 11) AIRFOIL (goe79-il)

GOE 79 (PFALZ 11) AIRFOIL - Gottingen 79 (Pfalz 11) airfoil


Airfoil goe79-il
Details Dat file Parser
(goe79-il) GOE 79 (PFALZ 11) AIRFOIL
Gottingen 79 (Pfalz 11) airfoil
Max thickness 6.2% at 14.9% chord.
Max camber 6% at 29.9% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
GOE 79 (PFALZ 11) AIRFOIL
       17.       17.

 0.0000000 0.0000000
 0.0122800 0.0264000
 0.0246900 0.0366100
 0.0495800 0.0502200
 0.0745000 0.0594300
 0.0994300 0.0680400
 0.1493300 0.0796500
 0.1992800 0.0856700
 0.2992500 0.0893100
 0.3992700 0.0873500
 0.4993300 0.0791900
 0.5994400 0.0672400
 0.6995500 0.0534800
 0.7996800 0.0375200
 0.8998200 0.0209600
 0.9498900 0.0129800
 1.0000000 0.0028000

 0.0000000 0.0000000
 0.0125900 -.0110900
 0.0250700 -.0081900
 0.0500000 -.0001800
 0.0749600 0.0051300
 0.0999100 0.0109400
 0.1498500 0.0180600
 0.1998000 0.0240800
 0.2997400 0.0305200
 0.3997400 0.0313600
 0.4997500 0.0300000
 0.5997900 0.0252400
 0.6998300 0.0198800
 0.7999000 0.0123200
 0.8999600 0.0047600
 0.9499900 0.0006800
 1.0000000 -.0028000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 264 AIRFOILPreviewDetails
GOE 402 AIRFOILPreviewDetails
GOE 803 (HACKLINGER) AIRFOILPreviewDetails
GOE 394 AIRFOILPreviewDetails
GOE 483 AIRFOILPreviewDetails

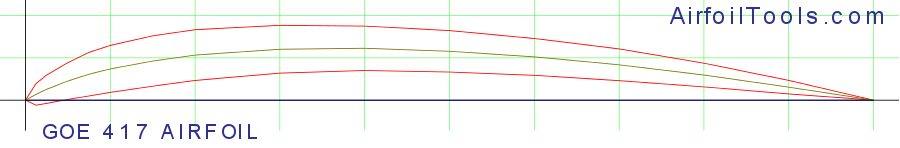

GOE 417 AIRFOILPreviewDetails
GOE 361 AIRFOILPreviewDetails
GOE 362 AIRFOILPreviewDetails
GOE 342 AIRFOILPreviewDetails
AH-6-40-7 AIRFOILPreviewDetails

Polars for GOE 79 (PFALZ 11) AIRFOIL (goe79-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   goe79-il50,000959.2 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   goe79-il50,000542.7 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe79-il100,000957.6 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   goe79-il100,000559.4 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe79-il200,000975.7 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   goe79-il200,000575.6 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe79-il500,0009102.2 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   goe79-il500,000597.4 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe79-il1,000,0009120.1 at α=6.25°Mach=0 Ncrit=9Xfoil predictionDetails
   goe79-il1,000,0005103.5 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
