GOE 481 AIRFOIL (goe481-il)

GOE 481 AIRFOIL - Gottingen 481 airfoil


Airfoil goe481-il
Details Dat file Parser
(goe481-il) GOE 481 AIRFOIL
Gottingen 481 airfoil
Max thickness 13.4% at 9.6% chord.
Max camber 8.8% at 39.4% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
GOE 481 AIRFOIL
       17.       17.

 0.0000000 0.0000000
 0.0111400 0.0290200
 0.0229300 0.0440800
 0.0469600 0.0647100
 0.0713000 0.0788500
 0.0957500 0.0905000
 0.1450000 0.1063200
 0.1944700 0.1176400
 0.2939700 0.1283200
 0.3939600 0.1285200
 0.4943000 0.1212300
 0.5948600 0.1094600
 0.6955700 0.0941900
 0.7965300 0.0739400
 0.8978500 0.0457000
 0.9487300 0.0270900
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0138600 -.0288500
 0.0267000 -.0362400
 0.0520000 -.0425600
 0.0770600 -.0438800
 0.1020300 -.0432000
 0.1498800 0.0025400
 0.1986200 0.0293400
 0.2978900 0.0450000
 0.3977600 0.0476900
 0.4978400 0.0459000
 0.5980700 0.0411100
 0.6984600 0.0328300
 0.7989600 0.0220500
 0.8995200 0.0102800
 0.9498100 0.0041400
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 226 (MVA H.36) AIRFOILPreviewDetails
GOE 234 (MVA CA5) AIRFOILPreviewDetails
USA 32 AIRFOILPreviewDetails
USA 31 AIRFOILPreviewDetails
S1223 RTLPreviewDetails
GOE 225 (MVA H.35) AIRFOILPreviewDetails

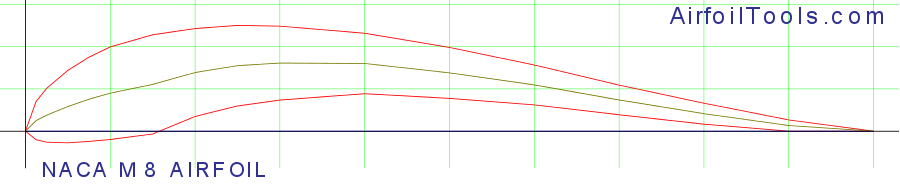

NACA M8 AIRFOILPreviewDetails
S1223PreviewDetails
E423PreviewDetails
EPPLER 421 AIRFOILPreviewDetails

Polars for GOE 481 AIRFOIL (goe481-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   goe481-il50,00097 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   goe481-il50,000528.9 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   goe481-il100,000943 at α=8.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe481-il100,000541.1 at α=8.25°Mach=0 Ncrit=5Xfoil predictionDetails
   goe481-il200,000953.4 at α=9.75°Mach=0 Ncrit=9Xfoil predictionDetails
   goe481-il200,000548.9 at α=8.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe481-il500,000963.4 at α=9.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe481-il500,000558.3 at α=8.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe481-il1,000,000970.3 at α=9°Mach=0 Ncrit=9Xfoil predictionDetails
   goe481-il1,000,000563.8 at α=10°Mach=0 Ncrit=5Xfoil predictionDetails
