EPPLER 58 AIRFOIL (e58-il)

EPPLER 58 AIRFOIL - Eppler E58 low Reynolds number airfoil


Airfoil e58-il
Details Dat file Parser
(e58-il) EPPLER 58 AIRFOIL
Eppler E58 low Reynolds number airfoil
Max thickness 5.6% at 30% chord.
Max camber 6.5% at 50% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
EPPLER 58 AIRFOIL
       18.       18.

 0.0000000 0.0000000
 0.0125000 0.0150000
 0.0250000 0.0235000
 0.0500000 0.0350000
 0.0750000 0.0440000
 0.1000000 0.0520000
 0.1500000 0.0630000
 0.2000000 0.0720000
 0.2500000 0.0780000
 0.3000000 0.0830000
 0.4000000 0.0880000
 0.5000000 0.0890000
 0.6000000 0.0850000
 0.7000000 0.0770000
 0.8000000 0.0620000
 0.9000000 0.0370000
 0.9500000 0.0200000
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0125000 -.0050000
 0.0250000 -.0050000
 0.0500000 -.0040000
 0.0750000 -.0020000
 0.1000000 0.0010000
 0.1500000 0.0090000
 0.2000000 0.0160000
 0.2500000 0.0220000
 0.3000000 0.0270000
 0.4000000 0.0350000
 0.5000000 0.0400000
 0.6000000 0.0420000
 0.7000000 0.0410000
 0.8000000 0.0360000
 0.9000000 0.0250000
 0.9500000 0.0150000
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

davissmPreviewDetails
E61 (5.64%)PreviewDetails
GOE 499 AIRFOILPreviewDetails
GOE 123 AIRFOILPreviewDetails
AH-7-47-6 AIRFOILPreviewDetails
EPPLER 59 AIRFOILPreviewDetails

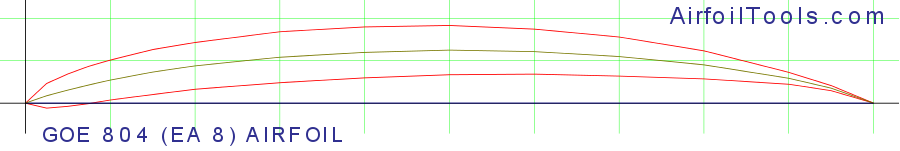

GOE 804 (EA 8) AIRFOILPreviewDetails
GOE 369 AIRFOILPreviewDetails
GOE 396 AIRFOILPreviewDetails
GOE 395 AIRFOILPreviewDetails

Polars for EPPLER 58 AIRFOIL (e58-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   e58-il50,000946.1 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   e58-il50,000544.1 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   e58-il100,000970.8 at α=5.75°Mach=0 Ncrit=9Xfoil predictionDetails
   e58-il100,000568.4 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
   e58-il200,0009108.2 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e58-il200,0005106.6 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
   e58-il500,0009175.1 at α=3°Mach=0 Ncrit=9Xfoil predictionDetails
   e58-il500,0005166.6 at α=1.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e58-il1,000,0009235.7 at α=1.75°Mach=0 Ncrit=9Xfoil predictionDetails
   e58-il1,000,0005160.8 at α=0°Mach=0 Ncrit=5Xfoil predictionDetails
