EPPLER 541 AIRFOIL (e541-il)

EPPLER 541 AIRFOIL - Eppler E541 general aviation airfoil


Airfoil e541-il
Details Dat file Parser
(e541-il) EPPLER 541 AIRFOIL
Eppler E541 general aviation airfoil
Max thickness 16.6% at 46.2% chord.
Max camber 1.7% at 36.3% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
EPPLER 541 AIRFOIL
       36.       37.

 0.0000100 0.0002200
 0.0000600 0.0008800
 0.0003400 0.0022800
 0.0008400 0.0037800
 0.0019500 0.0061600
 0.0026300 0.0073500
 0.0101600 0.0161400
 0.0223600 0.0255900
 0.0390700 0.0352600
 0.0601500 0.0448600
 0.0853900 0.0541500
 0.1145800 0.0629300
 0.1474500 0.0710300
 0.1836700 0.0783200
 0.2229000 0.0846700
 0.2647400 0.0899900
 0.3087600 0.0941800
 0.3545000 0.0971700
 0.4014800 0.0989100
 0.4491600 0.0993200
 0.4970400 0.0983200
 0.5445500 0.0957400
 0.5913200 0.0913200
 0.6372400 0.0848400
 0.6825100 0.0764400
 0.7270700 0.0668000
 0.7704300 0.0566100
 0.8120100 0.0463600
 0.8511500 0.0365300
 0.8871700 0.0275300
 0.9193100 0.0196600
 0.9468200 0.0131100
 0.9689800 0.0078300
 0.9854800 0.0036100
 0.9961700 0.0008800
 1.0000000 0.0000000

 0.0000100 0.0002200
 0.0000100 -.0004100
 0.0001100 -.0009900
 0.0003100 -.0015500
 0.0006100 -.0021300
 0.0009900 -.0027100
 0.0019600 -.0039100
 0.0032000 -.0051400
 0.0055100 -.0070300
 0.0148700 -.0126100
 0.0308000 -.0192100
 0.0518500 -.0256700
 0.0777700 -.0318800
 0.1082800 -.0377700
 0.1430200 -.0433200
 0.1815300 -.0485000
 0.2233100 -.0532500
 0.2678200 -.0574800
 0.3145300 -.0610900
 0.3628700 -.0639900
 0.4122700 -.0660700
 0.4621500 -.0672400
 0.5119400 -.0673900
 0.5610400 -.0663700
 0.6088900 -.0640300
 0.6548600 -.0599400
 0.6990300 -.0533900
 0.7421200 -.0443900
 0.7847800 -.0338300
 0.8268800 -.0233900
 0.8672000 -.0143700
 0.9043600 -.0073900
 0.9370000 -.0027300
 0.9638301 0.0002600
 0.9837200 0.0004600
 0.9959100 0.0002400
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

EPPLER 540 AIRFOILPreviewDetails
FX 75-VG-166/22PreviewDetails
EPPLER 542 AIRFOILPreviewDetails

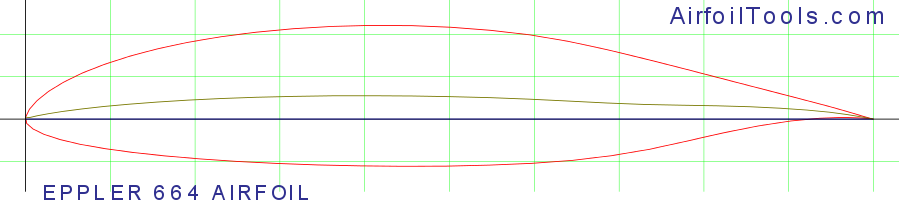

EPPLER 664 AIRFOILPreviewDetails
EPPLER 543 AIRFOILPreviewDetails
EPPLER 502 AIRFOILPreviewDetails
EPPLER 547 AIRFOILPreviewDetails
NREL's S828 AirfoilPreviewDetails
EPPLER 546 AIRFOILPreviewDetails
EPPLER 544 AIRFOILPreviewDetails

Polars for EPPLER 541 AIRFOIL (e541-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   e541-il50,000925.2 at α=9.75°Mach=0 Ncrit=9Xfoil predictionDetails
   e541-il50,000521 at α=9.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e541-il100,000940.5 at α=8.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e541-il100,000529.3 at α=9°Mach=0 Ncrit=5Xfoil predictionDetails
   e541-il200,000946.8 at α=8.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e541-il200,000550.7 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e541-il500,000978.3 at α=6.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e541-il500,000579.8 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   e541-il1,000,0009106.4 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e541-il1,000,000596.7 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
