USNPS4 (smoothed) (usnps4-il)

USNPS4 (smoothed) - Jacobs USNPS4 (smoothed) 17.5 kW wind turbine airfoil


Airfoil usnps4-il
Details Dat file Parser
(usnps4-il) USNPS4 (smoothed)
Jacobs USNPS4 (smoothed) 17.5 kW wind turbine airfoil
Max thickness 11.9% at 34.2% chord.
Max camber 5% at 34.2% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
USNPS4 (smoothed)
1.000000       0.003907
0.997540       0.005014
0.990700       0.008068
0.980370       0.012414
0.966980       0.017639
0.950440       0.023567
0.930640       0.030051
0.907750       0.036881
0.882020       0.043880
0.853700       0.050907
0.823090       0.057840
0.790480       0.064595
0.756160       0.071104
0.720430       0.077285
0.683590       0.083074
0.645940       0.088414
0.607780       0.093242
0.569370       0.097513
0.530990       0.101190
0.492650       0.104261
0.454350       0.106704
0.416380       0.108480
0.378870       0.109559
0.342040       0.109899
0.306090       0.109455
0.271200       0.108174
0.237600       0.105991
0.205490       0.102829
0.175040       0.098605
0.146480       0.093236
0.119990       0.086635
0.095760       0.078740
0.073950       0.069526
0.054680       0.059112
0.038110       0.047936
0.024330       0.036543
0.013380       0.025420
0.005480       0.015034
0.000980       0.005837
0.000000       0.000174
0.000980      -0.004494
0.005480      -0.009308
0.013380      -0.012372
0.024330      -0.013940
0.038110      -0.014396
0.054680      -0.014139
0.073950      -0.013527
0.095760      -0.012851
0.119990      -0.012231
0.146480      -0.011689
0.175040      -0.011223
0.205490      -0.010819
0.237600      -0.010462
0.271200      -0.010135
0.306090      -0.009825
0.342040      -0.009519
0.378870      -0.009211
0.416380      -0.008896
0.454350      -0.008572
0.492650      -0.008238
0.530990      -0.007899
0.569370      -0.007554
0.607780      -0.007207
0.645940      -0.006862
0.683590      -0.006522
0.720430      -0.006191
0.756160      -0.005873
0.790480      -0.005571
0.823090      -0.005288
0.853700      -0.005028
0.882020      -0.004791
0.907750      -0.004581
0.930640      -0.004397
0.950440      -0.004241
0.966980      -0.004112
0.980370      -0.004007
0.990700      -0.003925
0.997540      -0.003869
1.000000      -0.003849
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

SPICA 11.73% smoothedPreviewDetails
FX 77-W-121PreviewDetails
GOE 365 AIRFOILPreviewDetails
GOE 480 AIRFOILPreviewDetails
GOE 406 AIRFOILPreviewDetails
MILEY M06-13-128PreviewDetails
HAM-STD HS1-712 AIRFOILPreviewDetails

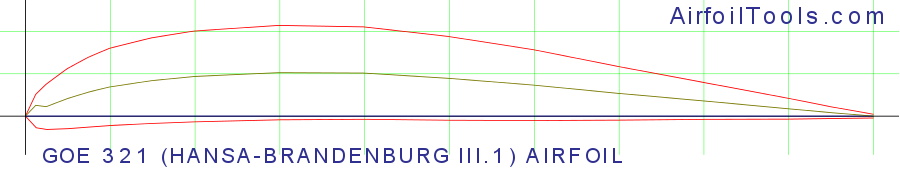

GOE 321 (HANSA-BRANDENBURG III.1)PreviewDetails
GOE 701 AIRFOILPreviewDetails
GOE 532 AIRFOILPreviewDetails

Polars for USNPS4 (smoothed) (usnps4-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   usnps4-il50,000932.7 at α=5.75°Mach=0 Ncrit=9Xfoil predictionDetails
   usnps4-il50,000537.1 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   usnps4-il100,000955.5 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   usnps4-il100,000553.2 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   usnps4-il200,000974.3 at α=2.5°Mach=0 Ncrit=9Xfoil predictionDetails
   usnps4-il200,000567.2 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   usnps4-il500,000995.2 at α=1°Mach=0 Ncrit=9Xfoil predictionDetails
   usnps4-il500,000587.2 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   usnps4-il1,000,0009110.8 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   usnps4-il1,000,0005105.3 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
