NASA SC(2)-0410 AIRFOIL (sc20410-il)

NASA SC(2)-0410 AIRFOIL - NASA SC(2)-0410 airfoil (NASA TP-2969)


Airfoil sc20410-il
Details Dat file Parser
(sc20410-il) NASA SC(2)-0410 AIRFOIL
NASA SC(2)-0410 airfoil (NASA TP-2969)
Max thickness 10% at 38% chord.
Max camber 1.1% at 85% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
NASA SC(2)-0410 AIRFOIL
      103.      103.

 0.000000  0.000000
 0.002000  0.007600
 0.005000  0.011600
 0.010000  0.015500
 0.020000  0.020700
 0.030000  0.024200
 0.040000  0.026900
 0.050000  0.029100
 0.060000  0.031000
 0.070000  0.032700
 0.080000  0.034200
 0.090000  0.035600
 0.100000  0.036800
 0.110000  0.037900
 0.120000  0.038900
 0.130000  0.039900
 0.140000  0.040800
 0.150000  0.041600
 0.160000  0.042400
 0.170000  0.043100
 0.180000  0.043800
 0.190000  0.044400
 0.200000  0.045000
 0.210000  0.045600
 0.220000  0.046100
 0.230000  0.046600
 0.240000  0.047000
 0.250000  0.047400
 0.260000  0.047800
 0.270000  0.048100
 0.280000  0.048400
 0.290000  0.048700
 0.300000  0.048900
 0.310000  0.049100
 0.320000  0.049300
 0.330000  0.049500
 0.340000  0.049600
 0.350000  0.049700
 0.360000  0.049800
 0.370000  0.049900
 0.380000  0.050000
 0.390000  0.050000
 0.400000  0.050000
 0.410000  0.050000
 0.420000  0.050000
 0.430000  0.050000
 0.440000  0.049900
 0.450000  0.049800
 0.460000  0.049700
 0.470000  0.049600
 0.480000  0.049400
 0.490000  0.049200
 0.500000  0.049000
 0.510000  0.048800
 0.520000  0.048500
 0.530000  0.048200
 0.540000  0.047900
 0.550000  0.047600
 0.560000  0.047200
 0.570000  0.046800
 0.580000  0.046400
 0.590000  0.045900
 0.600000  0.045400
 0.610000  0.044900
 0.620000  0.044300
 0.630000  0.043700
 0.640000  0.043100
 0.650000  0.042500
 0.660000  0.041800
 0.670000  0.041100
 0.680000  0.040400
 0.690000  0.039600
 0.700000  0.038800
 0.710000  0.038000
 0.720000  0.037200
 0.730000  0.036300
 0.740000  0.035400
 0.750000  0.034500
 0.760000  0.033600
 0.770000  0.032600
 0.780000  0.031600
 0.790000  0.030600
 0.800000  0.029600
 0.810000  0.028500
 0.820000  0.027400
 0.830000  0.026300
 0.840000  0.025200
 0.850000  0.024100
 0.860000  0.022900
 0.870000  0.021700
 0.880000  0.020500
 0.890000  0.019300
 0.900000  0.018000
 0.910000  0.016700
 0.920000  0.015400
 0.930000  0.014100
 0.940000  0.012700
 0.950000  0.011300
 0.960000  0.009800
 0.970000  0.008300
 0.980000  0.006700
 0.990000  0.005000
 1.000000  0.003200

 0.000000  0.000000
 0.002000 -0.007600
 0.005000 -0.011600
 0.010000 -0.015500
 0.020000 -0.020700
 0.030000 -0.024200
 0.040000 -0.026900
 0.050000 -0.029100
 0.060000 -0.031000
 0.070000 -0.032700
 0.080000 -0.034200
 0.090000 -0.035600
 0.100000 -0.036900
 0.110000 -0.038100
 0.120000 -0.039200
 0.130000 -0.040200
 0.140000 -0.041100
 0.150000 -0.042000
 0.160000 -0.042800
 0.170000 -0.043500
 0.180000 -0.044200
 0.190000 -0.044900
 0.200000 -0.045500
 0.210000 -0.046000
 0.220000 -0.046500
 0.230000 -0.047000
 0.240000 -0.047400
 0.250000 -0.047800
 0.260000 -0.048100
 0.270000 -0.048400
 0.280000 -0.048700
 0.290000 -0.048900
 0.300000 -0.049100
 0.310000 -0.049300
 0.320000 -0.049400
 0.330000 -0.049500
 0.340000 -0.049600
 0.350000 -0.049700
 0.360000 -0.049700
 0.370000 -0.049700
 0.380000 -0.049700
 0.390000 -0.049600
 0.400000 -0.049500
 0.410000 -0.049400
 0.420000 -0.049200
 0.430000 -0.049000
 0.440000 -0.048800
 0.450000 -0.048500
 0.460000 -0.048200
 0.470000 -0.047800
 0.480000 -0.047400
 0.490000 -0.047000
 0.500000 -0.046500
 0.510000 -0.046000
 0.520000 -0.045400
 0.530000 -0.044700
 0.540000 -0.044000
 0.550000 -0.043200
 0.560000 -0.042300
 0.570000 -0.041300
 0.580000 -0.040200
 0.590000 -0.039000
 0.600000 -0.037800
 0.610000 -0.036500
 0.620000 -0.035200
 0.630000 -0.033800
 0.640000 -0.032400
 0.650000 -0.030900
 0.660000 -0.029400
 0.670000 -0.027800
 0.680000 -0.026200
 0.690000 -0.024600
 0.700000 -0.023000
 0.710000 -0.021400
 0.720000 -0.019800
 0.730000 -0.018200
 0.740000 -0.016600
 0.750000 -0.015000
 0.760000 -0.013400
 0.770000 -0.011800
 0.780000 -0.010200
 0.790000 -0.008700
 0.800000 -0.007200
 0.810000 -0.005800
 0.820000 -0.004400
 0.830000 -0.003100
 0.840000 -0.001800
 0.850000 -0.000600
 0.860000  0.000500
 0.870000  0.001500
 0.880000  0.002400
 0.890000  0.003100
 0.900000  0.003700
 0.910000  0.004100
 0.920000  0.004300
 0.930000  0.004300
 0.940000  0.004100
 0.950000  0.003700
 0.960000  0.003100
 0.970000  0.002300
 0.980000  0.001200
 0.990000 -0.000100
 1.000000 -0.001700
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

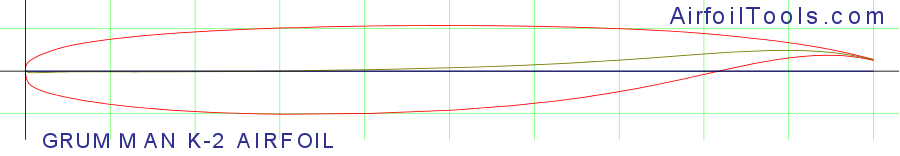

GRUMMAN K-2 AIRFOILPreviewDetails
NASA SC(2)-0610 AIRFOILPreviewDetails
BOEING AIRFOIL J (no closed TE)PreviewDetails
NASA SC(2)-0710 AIRFOILPreviewDetails
BOEING HSNLF AIRFOILPreviewDetails
NPL AIRFOIL FROM ARC CP 1372PreviewDetails
NPL 9510 AIRFOILPreviewDetails
DSMA-523A AIRFOILPreviewDetails
RAE(NPL) 5213 AIRFOILPreviewDetails
RAE 5214 AIRFOILPreviewDetails

Polars for NASA SC(2)-0410 AIRFOIL (sc20410-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   sc20410-il50,000922.4 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20410-il50,000522.1 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20410-il100,000930.6 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20410-il100,000529.3 at α=5.75°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20410-il200,000935.3 at α=2.75°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20410-il200,000541.3 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20410-il500,000954 at α=5.75°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20410-il500,000560.5 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20410-il1,000,000971.9 at α=6.25°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20410-il1,000,000574.7 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
