S4320 (s4320-il)

S4320 - Selig S4320 low Reynolds number airfoil


Airfoil s4320-il
Details Dat file Parser
(s4320-il) S4320
Selig S4320 low Reynolds number airfoil
Max thickness 9.4% at 26.8% chord.
Max camber 4.5% at 40.2% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
S4320
1.00000  0.00000
0.99682  0.00044
0.98739  0.00182
0.97202  0.00426
0.95108  0.00780
0.92500  0.01242
0.89426  0.01804
0.85937  0.02454
0.82088  0.03175
0.77933  0.03946
0.73529  0.04746
0.68931  0.05550
0.64198  0.06333
0.59384  0.07063
0.54536  0.07709
0.49698  0.08242
0.44898  0.08642
0.40169  0.08902
0.35549  0.09018
0.31075  0.08991
0.26783  0.08826
0.22712  0.08530
0.18903  0.08108
0.15387  0.07563
0.12192  0.06906
0.09342  0.06147
0.06855  0.05300
0.04745  0.04385
0.03022  0.03425
0.01690  0.02445
0.00744  0.01483
0.00179  0.00598
0.00000  0.00000
0.00009 -0.00116
0.00380 -0.00601
0.01372 -0.00931
0.02926 -0.01168
0.05023 -0.01305
0.07648 -0.01348
0.10780 -0.01304
0.14390 -0.01185
0.18445 -0.01009
0.22900 -0.00788
0.27707 -0.00540
0.32807 -0.00283
0.38137 -0.00031
0.43629  0.00206
0.49213  0.00417
0.54818  0.00596
0.60374  0.00738
0.65811  0.00838
0.71057  0.00894
0.76047  0.00905
0.80716  0.00871
0.85000  0.00791
0.88833  0.00671
0.92161  0.00526
0.94939  0.00373
0.97133  0.00229
0.98719  0.00110
0.99678  0.00029
1.00000  0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

I.S.A. 960PreviewDetails
GOE 407 AIRFOILPreviewDetails
GOE 117 (MVA MK.4) AIRFOILPreviewDetails
S4180-098-84PreviewDetails
Eiffel 428 (Bleriot)PreviewDetails

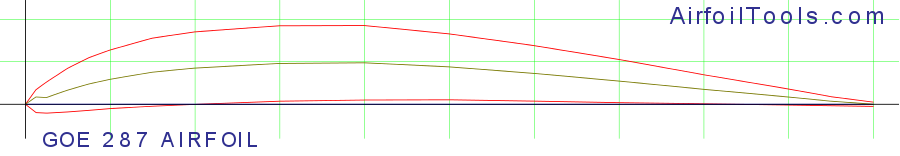

GOE 287 AIRFOILPreviewDetails
GOE 596 AIRFOILPreviewDetails
GOE 180 (MVA H.26) AIRFOILPreviewDetails
GOE 137 (MVA H.15) AIRFOILPreviewDetails
GOE 477 AIRFOILPreviewDetails

Polars for S4320 (s4320-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   s4320-il50,000932.3 at α=9°Mach=0 Ncrit=9Xfoil predictionDetails
   s4320-il50,000540 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
   s4320-il100,000959.1 at α=7°Mach=0 Ncrit=9Xfoil predictionDetails
   s4320-il100,000561.7 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   s4320-il200,000984.4 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   s4320-il200,000582 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   s4320-il500,0009117.2 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   s4320-il500,0005106.4 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   s4320-il1,000,0009139.3 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   s4320-il1,000,0005122.2 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
