REPUBLIC S-3 AIRFOIL (s3-il)

REPUBLIC S-3 AIRFOIL - Republic S-3 airfoil (P-47 wing airfoil)


Airfoil s3-il
Details Dat file Parser
(s3-il) REPUBLIC S-3 AIRFOIL
Republic S-3 airfoil (P-47 wing airfoil)
Max thickness 11% at 30% chord.
Max camber 1.8% at 15% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
REPUBLIC S-3 AIRFOIL
       19.       19.

  0.000000  0.000000
  0.012500  0.019200
  0.025000  0.031000
  0.050000  0.044400
  0.075000  0.053500
  0.100000  0.060400
  0.150000  0.067400
  0.200000  0.070600
  0.250000  0.071100
  0.300000  0.070500
  0.350000  0.068500
  0.400000  0.065600
  0.450000  0.062700
  0.500000  0.058900
  0.600000  0.048500
  0.700000  0.035400
  0.800000  0.023000
  0.900000  0.010500
  1.000000  0.000000

  0.000000  0.000000
  0.012500 -0.009300
  0.025000 -0.013400
  0.050000 -0.018400
  0.075000 -0.022100
  0.100000 -0.025300
  0.150000 -0.030800
  0.200000 -0.035400
  0.250000 -0.038100
  0.300000 -0.039500
  0.350000 -0.040000
  0.400000 -0.039500
  0.450000 -0.037800
  0.500000 -0.035600
  0.600000 -0.029600
  0.700000 -0.022100
  0.800000 -0.013600
  0.900000 -0.006000
  1.000000  0.000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

EPPLER 330 AIRFOILPreviewDetails

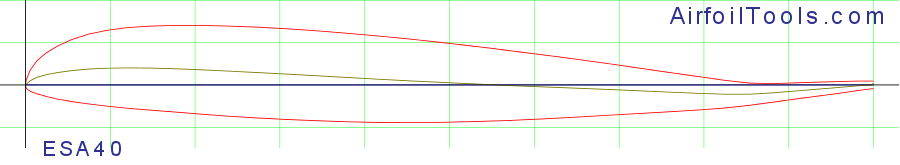

ESA40PreviewDetails
ONERA NACA CAMBRE AIRFOILPreviewDetails
BOEING-VERTOL V23010-1.58 AIRFOILPreviewDetails
BOEING BACXXX AIRFOILPreviewDetails
NACA 23012 12%PreviewDetails
NASA/AMES A-01 AIRFOILPreviewDetails
BOEING-VERTOL VR-12 AIRFOILPreviewDetails
LOCKHEED-GEORGIA SUPERCRITICALPreviewDetails
NPL 9615 AIRFOILPreviewDetails

Polars for REPUBLIC S-3 AIRFOIL (s3-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   s3-il50,000923.6 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   s3-il50,000528.4 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   s3-il100,000938.5 at α=10.25°Mach=0 Ncrit=9Xfoil predictionDetails
   s3-il100,000542.7 at α=8.75°Mach=0 Ncrit=5Xfoil predictionDetails
   s3-il200,000956.6 at α=9.25°Mach=0 Ncrit=9Xfoil predictionDetails
   s3-il200,000556.4 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   s3-il500,000976.4 at α=7.5°Mach=0 Ncrit=9Xfoil predictionDetails
   s3-il500,000573.7 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   s3-il1,000,000991.3 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   s3-il1,000,000585.5 at α=5.75°Mach=0 Ncrit=5Xfoil predictionDetails
