ESA40 (esa40-il)

ESA40 - Evans Simitar Airfoil ESA40 for R/C tailless aircraft


Airfoil esa40-il
Details Dat file Parser
(esa40-il) ESA40
Evans Simitar Airfoil ESA40 for R/C tailless aircraft
Max thickness 10.7% at 27.1% chord.
Max camber 2% at 12% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
   ESA40
 1.000000       0.004450
 0.997540       0.004521
 0.990700       0.004603
 0.980370       0.004515
 0.966980       0.004211
 0.950440       0.003748
 0.930640       0.003167
 0.907750       0.002388
 0.882020       0.001578
 0.853700       0.002132
 0.823090       0.005572
 0.790480       0.010199
 0.756160       0.015054
 0.720430       0.020294
 0.683590       0.025638
 0.645940       0.030800
 0.607780       0.035771
 0.569370       0.040633
 0.530990       0.045353
 0.492650       0.049829
 0.454350       0.053959
 0.416380       0.057687
 0.378870       0.061045
 0.342040       0.063997
 0.306090       0.066434
 0.271200       0.068276
 0.237600       0.069523
 0.205490       0.070194
 0.175040       0.070224
 0.146480       0.069444
 0.119990       0.067601
 0.095760       0.064436
 0.073950       0.059758
 0.054680       0.053529
 0.038110       0.045990
 0.024330       0.037596
 0.013380       0.028281
 0.005480       0.017182
 0.000980       0.005977
 0.000000       0.000022
 0.000980      -0.003981
 0.005480      -0.007533
 0.013380      -0.010415
 0.024330      -0.013550
 0.038110      -0.016790
 0.054680      -0.019718
 0.073950      -0.022389
 0.095760      -0.025007
 0.119990      -0.027480
 0.146480      -0.029696
 0.175040      -0.031944
 0.205490      -0.034411
 0.237600      -0.036815
 0.271200      -0.038899
 0.306090      -0.040675
 0.342040      -0.042243
 0.378870      -0.043522
 0.416380      -0.044296
 0.454350      -0.044467
 0.492650      -0.044085
 0.530990      -0.043248
 0.569370      -0.041963
 0.607780      -0.040221
 0.645940      -0.038161
 0.683590      -0.036003
 0.720430      -0.033900
 0.756160      -0.031876
 0.790480      -0.029811
 0.823090      -0.027393
 0.853700      -0.024131
 0.882020      -0.020255
 0.907750      -0.016698
 0.930640      -0.013692
 0.950440      -0.011083
 0.966980      -0.008754
 0.980370      -0.006790
 0.990700      -0.005377
 0.997540      -0.004624
 0.999908      -0.004423
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

REPUBLIC S-3 AIRFOILPreviewDetails
EPPLER 330 AIRFOILPreviewDetails
BOEING-VERTOL V23010-1.58 AIRFOILPreviewDetails
LOCKHEED-GEORGIA SUPERCRITICALPreviewDetails
BOEING 707 .40 SPAN AIRFOILPreviewDetails
ONERA NACA CAMBRE AIRFOILPreviewDetails

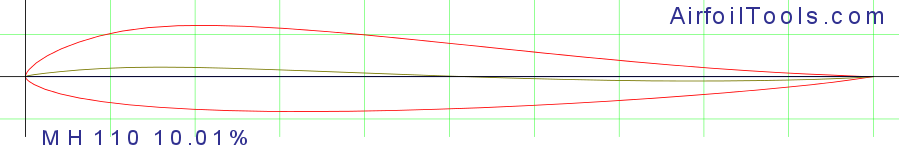

MH 110 10.01%PreviewDetails
BELL/WORTMANN FX 69-H-098 AIRFOILPreviewDetails
NASA/AMES A-01 AIRFOILPreviewDetails
NACA 23012 12%PreviewDetails

Polars for ESA40 (esa40-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   esa40-il50,000916 at α=4.25°Mach=0 Ncrit=9Xfoil predictionDetails
   esa40-il50,000521.9 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   esa40-il100,000925.8 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   esa40-il100,000532.7 at α=8°Mach=0 Ncrit=5Xfoil predictionDetails
   esa40-il200,000939.1 at α=8.25°Mach=0 Ncrit=9Xfoil predictionDetails
   esa40-il200,000547.3 at α=10.5°Mach=0 Ncrit=5Xfoil predictionDetails
   esa40-il500,000966.3 at α=11.5°Mach=0 Ncrit=9Xfoil predictionDetails
   esa40-il500,000569.6 at α=10.75°Mach=0 Ncrit=5Xfoil predictionDetails
   esa40-il1,000,000987.5 at α=11°Mach=0 Ncrit=9Xfoil predictionDetails
   esa40-il1,000,000586.4 at α=10.5°Mach=0 Ncrit=5Xfoil predictionDetails
