NACA 5-H-15 AIRFOIL (n5h15-il)

NACA 5-H-15 AIRFOIL - NACA 5-H-15 rotorcraft airfoil


Airfoil n5h15-il
Details Dat file Parser
(n5h15-il) NACA 5-H-15 AIRFOIL
NACA 5-H-15 rotorcraft airfoil
Max thickness 15.4% at 40% chord.
Max camber 2.9% at 30% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
NACA 5-H-15 AIRFOIL
       18.       18.

 0.0000000 0.0000000
 0.0125000 0.0160700
 0.0250000 0.0261500
 0.0500000 0.0405000
 0.0750000 0.0520500
 0.1000000 0.0617000
 0.1500000 0.0770000
 0.2000000 0.0884000
 0.2500000 0.0974000
 0.3000000 0.1044000
 0.4000000 0.1056000
 0.5000000 0.0979000
 0.6000000 0.0801000
 0.7000000 0.0557000
 0.8000000 0.0294000
 0.9000000 0.0099000
 0.9500000 0.0041000
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0125000 -.0178300
 0.0250000 -.0223500
 0.0500000 -.0268000
 0.0750000 -.0300500
 0.1000000 -.0333000
 0.1500000 -.0377000
 0.2000000 -.0418000
 0.2500000 -.0441000
 0.3000000 -.0461000
 0.4000000 -.0486000
 0.5000000 -.0496000
 0.6000000 -.0490000
 0.7000000 -.0448000
 0.8000000 -.0357000
 0.9000000 -.0188000
 0.9500000 -.0094000
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

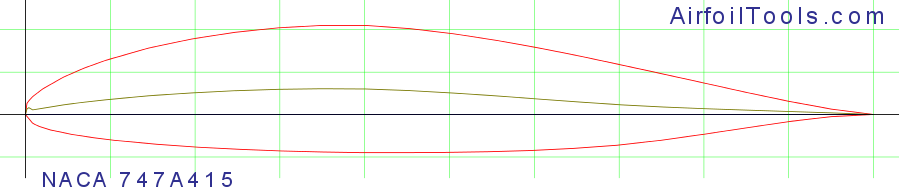

NACA 747A415PreviewDetails
NACA 747A315PreviewDetails
EPPLER 642 AIRFOILPreviewDetails
EPPLER 682 AIRFOILPreviewDetails
FX 78-K-161PreviewDetails
FX 61-147 AIRFOILPreviewDetails
RONCZ 1082T VOYAGER TIP OUTER AFTPreviewDetails
MB253515 15.0% smoothedPreviewDetails
FX 61-163 AIRFOILPreviewDetails
FX 63-147 AIRFOILPreviewDetails

Polars for NACA 5-H-15 AIRFOIL (n5h15-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   n5h15-il50,000914.2 at α=14.25°Mach=0 Ncrit=9Xfoil predictionDetails
   n5h15-il50,000514.8 at α=2.25°Mach=0 Ncrit=5Xfoil predictionDetails
   n5h15-il100,000930 at α=10.5°Mach=0 Ncrit=9Xfoil predictionDetails
   n5h15-il100,000543.1 at α=8°Mach=0 Ncrit=5Xfoil predictionDetails
   n5h15-il200,000970 at α=7.5°Mach=0 Ncrit=9Xfoil predictionDetails
   n5h15-il200,000558.6 at α=7.25°Mach=0 Ncrit=5Xfoil predictionDetails
   n5h15-il500,000978.2 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   n5h15-il500,000571.4 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
   n5h15-il1,000,000992.8 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   n5h15-il1,000,000585.5 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
