NASA/LANGLEY LS(1)-0413MOD AIRFOIL (ls413mod-il)

NASA/LANGLEY LS(1)-0413MOD AIRFOIL - NASA/Langley LS(1)-0413MOD general aviation airfoil


Airfoil ls413mod-il
Details Dat file Parser
(ls413mod-il) NASA/LANGLEY LS(1)-0413MOD AIRFOIL
NASA/Langley LS(1)-0413MOD general aviation airfoil
Max thickness 13% at 35% chord.
Max camber 2.2% at 40% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
 NASA/LANGLEY LS(1)-0413MOD AIRFOIL
45.        44.

 0.00000   0.00000
  .00200    .01040
  .00500    .01590
  .01250    .02440
  .02500    .03420
  .03750    .04180
  .05000    .04760
  .07500    .05640
  .10000    .06290
  .12500    .06800
  .15000    .07220
  .17500    .07560
  .20000    .07830
  .22500    .08050
  .25000    .08220
  .27500    .08350
  .30000    .08440
  .32500    .08490
  .35000    .08500
  .37500    .08470
  .40000    .08410
  .42500    .08320
  .45000    .08200
  .47500    .08050
  .50000    .07870
  .52500    .07660
  .55000    .07420
  .57500    .07150
  .60000    .06850
  .62500    .06530
  .65000    .06180
  .67500    .05810
  .70000    .05420
  .72500    .05010
  .75000    .04580
  .77500    .04140
  .80000    .03680
  .82500    .03210
  .85000    .02730
  .87500    .02240
  .90000    .01740
  .92500    .01230
  .95000    .00700
  .97500    .00150
 1.00000   -.00430

 0.00000   0.00000
  .00200   -.00500
  .00500   -.00940
  .01250   -.01450
  .02500   -.01910
  .03750   -.02280
  .05000   -.02550
  .07500   -.02990
  .10000   -.03330
  .12500   -.03600
  .15000   -.03820
  .17500   -.04000
  .20000   -.04150
  .22500   -.04270
  .25000   -.04360
  .27500   -.04430
  .30000   -.04480
  .32500   -.04510
  .35000   -.04520
  .37500   -.04500
  .40000   -.04470
  .42500   -.04420
  .45000   -.04350
  .47500   -.04260
  .50000   -.04150
  .52500   -.04010
  .55000   -.03850
  .57500   -.03660
  .60000   -.03440
  .62500   -.03190
  .65000   -.02910
  .67500   -.02620
  .70000   -.02320
  .72500   -.02020
  .75000   -.01720
  .77500   -.01420
  .80000   -.01120
  .82500   -.00840
  .87500   -.00390
  .90000   -.00260
  .92500   -.00210
  .95000   -.00280
  .97500   -.00510
 1.00000   -.00940
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 704 AIRFOILPreviewDetails
RG 15A 2.5/13.0 AIRFOILPreviewDetails
RAF 38 AIRFOILPreviewDetails
E197 (13.49%)PreviewDetails
AH 81-131PreviewDetails
E231PreviewDetails

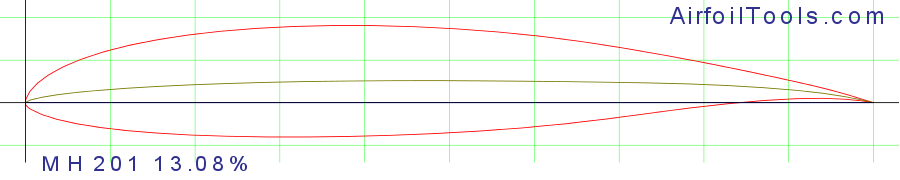

MH 201 13.08%PreviewDetails
NREL's S805A AirfoilPreviewDetails
LDS-2 AIRFOILPreviewDetails
GOE 629 AIRFOILPreviewDetails

Polars for NASA/LANGLEY LS(1)-0413MOD AIRFOIL (ls413mod-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   ls413mod-il50,000934.9 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   ls413mod-il50,000535.8 at α=5.75°Mach=0 Ncrit=5Xfoil predictionDetails
   ls413mod-il100,000953.3 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   ls413mod-il100,000549.2 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   ls413mod-il200,000966 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   ls413mod-il200,000562 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   ls413mod-il500,000986.7 at α=3°Mach=0 Ncrit=9Xfoil predictionDetails
   ls413mod-il500,000577.6 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   ls413mod-il1,000,000999.8 at α=2.75°Mach=0 Ncrit=9Xfoil predictionDetails
   ls413mod-il1,000,000592.5 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
