HQ 3.5/14 AIRFOIL (hq3514-il)

HQ 3.5/14 AIRFOIL - Quabeck HQ 3.5/14 R/C sailplane airfoil


Airfoil hq3514-il
Details Dat file Parser

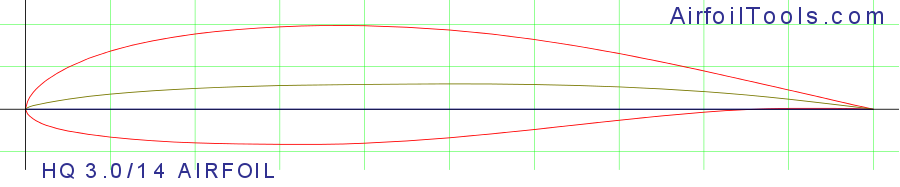

(hq3514-il) HQ 3.5/14 AIRFOIL
Quabeck HQ 3.5/14 R/C sailplane airfoil
Max thickness 14% at 35% chord.
Max camber 3.5% at 50% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
HQ 3.5/14 AIRFOIL
       20.       20.

 0.0000000 0.0000000
 0.0050000 0.0153600
 0.0125000 0.0245000
 0.0250000 0.0351200
 0.0500000 0.0511800
 0.1000000 0.0714900
 0.1500000 0.0838700
 0.2000000 0.0928500
 0.2500000 0.0980900
 0.3000000 0.1015100
 0.3500000 0.1036000
 0.4000000 0.1028400
 0.5000000 0.0985600
 0.6000000 0.0872400
 0.7000000 0.0698900
 0.8000000 0.0485400
 0.8500000 0.0364700
 0.9000000 0.0247300
 0.9500000 0.0117900
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0050000 -.0074200
 0.0125000 -.0128400
 0.0250000 -.0180800
 0.0500000 -.0237600
 0.1000000 -.0294900
 0.1500000 -.0338300
 0.2000000 -.0352100
 0.2500000 -.0364900
 0.3000000 -.0365300
 0.3500000 -.0364000
 0.4000000 -.0357600
 0.5000000 -.0285600
 0.6000000 -.0193400
 0.7000000 -.0084100
 0.8000000 0.0000000
 0.8500000 0.0024900
 0.9000000 0.0032700
 0.9500000 0.0025500
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

WORTMANN FX 75-141PreviewDetails
HQ 3.0/14 AIRFOILPreviewDetails
E210 (13.64%)PreviewDetails
EPPLER 668 AIRFOILPreviewDetails
NREL's S801 AirfoilPreviewDetails
DELFT DU84-132V3 AIRFOIL (MEASURED)PreviewDetails
WB-140/35/FB 14%PreviewDetails
S4233-136-84PreviewDetails
SIKORSKY GS-1 AIRFOILPreviewDetails
EPPLER E854 AIRFOILPreviewDetails

Polars for HQ 3.5/14 AIRFOIL (hq3514-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   hq3514-il50,000929.4 at α=8.5°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3514-il50,000533.1 at α=8°Mach=0 Ncrit=5Xfoil predictionDetails
   hq3514-il100,000955.8 at α=7°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3514-il100,000554.4 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   hq3514-il200,000980 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3514-il200,000571.4 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   hq3514-il500,0009100.5 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3514-il500,000586.3 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   hq3514-il1,000,0009112.8 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3514-il1,000,000599.5 at α=5.75°Mach=0 Ncrit=5Xfoil predictionDetails
