HQ 3.5/10 AIRFOIL (hq3510-il)

HQ 3.5/10 AIRFOIL - Quabeck HQ 3.5/10 R/C sailplane airfoil


Airfoil hq3510-il
Details Dat file Parser
(hq3510-il) HQ 3.5/10 AIRFOIL
Quabeck HQ 3.5/10 R/C sailplane airfoil
Max thickness 10% at 35% chord.
Max camber 3.5% at 50% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
HQ 3.5/10 AIRFOIL
       39.       39.

 0.0000000 0.0000000
 0.0025000 0.0070700
 0.0050000 0.0107800
 0.0087500 0.0149100
 0.0125000 0.0183200
 0.0187500 0.0232000
 0.0250000 0.0274100
 0.0375000 0.0344900
 0.0500000 0.0403600
 0.0750000 0.0498800
 0.1000000 0.0573300
 0.1250000 0.0633000
 0.1500000 0.0680500
 0.1750000 0.0717500
 0.2000000 0.0746400
 0.2250000 0.0769600
 0.2500000 0.0788900
 0.2750000 0.0805400
 0.3000000 0.0818800
 0.3250000 0.0828300
 0.3500000 0.0833800
 0.3750000 0.0835900
 0.4000000 0.0835000
 0.4500000 0.0824600
 0.5000000 0.0802100
 0.5500000 0.0766600
 0.6000000 0.0718400
 0.6500000 0.0658100
 0.7000000 0.0587600
 0.7500000 0.0506600
 0.8000000 0.0416300
 0.8250000 0.0367700
 0.8500000 0.0317900
 0.8750000 0.0267100
 0.9000000 0.0215000
 0.9250000 0.0162300
 0.9500000 0.0107700
 0.9750000 0.0052400
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0025000 -.0032300
 0.0050000 -.0045900
 0.0087500 -.0062700
 0.0125000 -.0076200
 0.0187500 -.0093000
 0.0250000 -.0104000
 0.0375000 -.0119800
 0.0500000 -.0130100
 0.0750000 -.0143900
 0.1000000 -.0153100
 0.1250000 -.0160000
 0.1500000 -.0165400
 0.1750000 -.0169000
 0.2000000 -.0171200
 0.2250000 -.0172100
 0.2500000 -.0171900
 0.2750000 -.0171000
 0.3000000 -.0169400
 0.3250000 -.0166700
 0.3500000 -.0162600
 0.3750000 -.0156500
 0.4000000 -.0148400
 0.4500000 -.0128200
 0.5000000 -.0102500
 0.5500000 -.0072500
 0.6000000 -.0039200
 0.6500000 -.0005300
 0.7000000 0.0025900
 0.7500000 0.0051900
 0.8000000 0.0069000
 0.8250000 0.0072800
 0.8500000 0.0073000
 0.8750000 0.0068400
 0.9000000 0.0060700
 0.9250000 0.0048300
 0.9500000 0.0035800
 0.9750000 0.0019400
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

SG6042PreviewDetails
HQ 3.0/10 AIRFOILPreviewDetails
E392 (10.15%)PreviewDetails
PSU 94-097 (AIAA 2001-2478)PreviewDetails
MH 116 9.84%PreviewDetails
GOE 546 AIRFOILPreviewDetails
MH 38 9.68%PreviewDetails

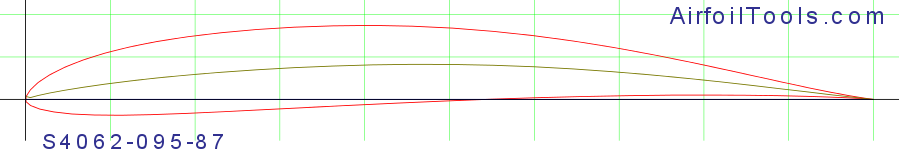

S4062-095-87PreviewDetails
GOE 114 (MVA MK.1) AIRFOILPreviewDetails
GOE 602 MOD. AIRFOILPreviewDetails

Polars for HQ 3.5/10 AIRFOIL (hq3510-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   hq3510-il50,000937.4 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3510-il50,000540.5 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   hq3510-il100,000961.7 at α=5.75°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3510-il100,000560.9 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   hq3510-il200,000987 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3510-il200,000580.8 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   hq3510-il500,0009119 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3510-il500,000595.6 at α=2.75°Mach=0 Ncrit=5Xfoil predictionDetails
   hq3510-il1,000,0009129.3 at α=3°Mach=0 Ncrit=9Xfoil predictionDetails
   hq3510-il1,000,0005106.9 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
