EPPLER 582 AIRFOIL (e582-il)

EPPLER 582 AIRFOIL - Eppler E582 sailplane airfoil


Airfoil e582-il
Details Dat file Parser
(e582-il) EPPLER 582 AIRFOIL
Eppler E582 sailplane airfoil
Max thickness 14.7% at 37.8% chord.
Max camber 4.2% at 43.1% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
EPPLER 582 AIRFOIL
       35.       38.

 0.0000100 0.0008600
 0.0002100 0.0023900
 0.0008400 0.0048800
 0.0023600 0.0086000
 0.0090700 0.0185300
 0.0200000 0.0293400
 0.0350400 0.0405600
 0.0541100 0.0518000
 0.0770600 0.0627600
 0.1037400 0.0731800
 0.1339300 0.0828400
 0.1673900 0.0915600
 0.2038200 0.0991700
 0.2429000 0.1055400
 0.2842600 0.1105600
 0.3275200 0.1141000
 0.3722500 0.1161000
 0.4180500 0.1164400
 0.4644800 0.1150400
 0.5112400 0.1118200
 0.5579900 0.1067800
 0.6044900 0.1000000
 0.6505001 0.0916000
 0.6955800 0.0819500
 0.7402400 0.0716300
 0.7829600 0.0611400
 0.8234000 0.0507900
 0.8609400 0.0409000
 0.8949900 0.0316800
 0.9249700 0.0233400
 0.9503400 0.0159500
 0.9708200 0.0094900
 0.9863500 0.0042900
 0.9964300 0.0010500
 1.0000000 0.0000000

 0.0000100 0.0008600
 0.0000100 -.0005600
 0.0000800 -.0012100
 0.0002100 -.0018300
 0.0004200 -.0023800
 0.0007300 -.0029000
 0.0011300 -.0034200
 0.0016300 -.0039300
 0.0028300 -.0049400
 0.0043100 -.0059500
 0.0069900 -.0074400
 0.0137400 -.0103000
 0.0297400 -.0147300
 0.0512200 -.0185100
 0.0779500 -.0216700
 0.1096500 -.0242500
 0.1459400 -.0263500
 0.1863400 -.0280300
 0.2303300 -.0293200
 0.2773700 -.0302400
 0.3268600 -.0308200
 0.3781700 -.0310500
 0.4306700 -.0309100
 0.4836900 -.0303600
 0.5365700 -.0293500
 0.5886600 -.0277800
 0.6393100 -.0255200
 0.6878501 -.0221100
 0.7345099 -.0168400
 0.7802700 -.0102900
 0.8248400 -.0041600
 0.8669100 0.0005400
 0.9051400 0.0034500
 0.9383000 0.0044500
 0.9651300 0.0037800
 0.9845600 0.0021700
 0.9961600 0.0006200
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

EPPLER 585 AIRFOILPreviewDetails
NASA/LANGLEY NLF(1)-0215F AIRFOILPreviewDetails
EPPLER 431 AIRFOILPreviewDetails
FX 84-W-150PreviewDetails
NACA 2-H-15 AIRFOILPreviewDetails
AH 81-K-144/17PreviewDetails
FX 84-W-140PreviewDetails
FX 67-K-150/17 AIRFOILPreviewDetails

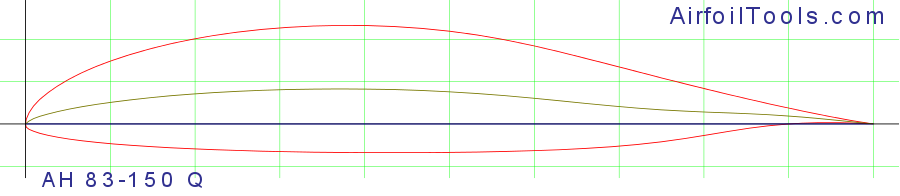

AH 83-150 QPreviewDetails
HORSTMANN AND QUAST HQ-17/14.38PreviewDetails

Polars for EPPLER 582 AIRFOIL (e582-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   e582-il50,00097.9 at α=10.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e582-il50,000520.7 at α=11.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e582-il100,000947.9 at α=9.75°Mach=0 Ncrit=9Xfoil predictionDetails
   e582-il100,000545.4 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e582-il200,000978 at α=8.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e582-il200,000575 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
   e582-il500,0009112 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   e582-il500,0005106.9 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
   e582-il1,000,0009140.4 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e582-il1,000,0005128.2 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
