EPPLER 560 AIRFOIL (e560-il)

EPPLER 560 AIRFOIL - Eppler E560 general aviation airfoil


Airfoil e560-il
Details Dat file Parser
(e560-il) EPPLER 560 AIRFOIL
Eppler E560 general aviation airfoil
Max thickness 16.1% at 24% chord.
Max camber 4.9% at 51.1% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
EPPLER 560 AIRFOIL
       33.       29.

 0.0000100 -.0000300
 0.0028700 0.0103700
 0.0100900 0.0222100
 0.0214100 0.0347300
 0.0367400 0.0474700
 0.0559100 0.0600900
 0.0787600 0.0722400
 0.1050900 0.0836400
 0.1346400 0.0939900
 0.1671900 0.1030100
 0.2024800 0.1104000
 0.2403400 0.1159000
 0.2806400 0.1193700
 0.3232200 0.1207800
 0.3678600 0.1202200
 0.4142500 0.1178800
 0.4619700 0.1139200
 0.5105900 0.1085500
 0.5596300 0.1019600
 0.6085800 0.0943900
 0.6569100 0.0860700
 0.7040700 0.0772500
 0.7494800 0.0681700
 0.7925701 0.0590400
 0.8327700 0.0500600
 0.8695300 0.0414000
 0.9023400 0.0332000
 0.9307100 0.0255500
 0.9541900 0.0184100
 0.9727800 0.0115400
 0.9869800 0.0054300
 0.9965200 0.0013500
 1.0000000 0.0000000

 0.0000100 -.0000300
 0.0029000 -.0089000
 0.0118200 -.0172500
 0.0255400 -.0253700
 0.0437000 -.0327000
 0.0661300 -.0389100
 0.0926800 -.0437200
 0.1231800 -.0469000
 0.1575100 -.0482400
 0.1955800 -.0476300
 0.2373200 -.0450600
 0.2826300 -.0406900
 0.3313600 -.0347900
 0.3832900 -.0278300
 0.4379000 -.0204800
 0.4943700 -.0132700
 0.5518300 -.0065600
 0.6093800 -.0006400
 0.6661000 0.0042800
 0.7210701 0.0080500
 0.7733999 0.0105800
 0.8222000 0.0118500
 0.8666200 0.0118800
 0.9058500 0.0107900
 0.9391600 0.0087300
 0.9657300 0.0059300
 0.9848300 0.0030300
 0.9962200 0.0008200
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

St. CYR 234 (Bartel 17-IC)PreviewDetails
EPPLER 559 AIRFOILPreviewDetails
GOE 626 AIRFOILPreviewDetails
GOE 498 AIRFOILPreviewDetails

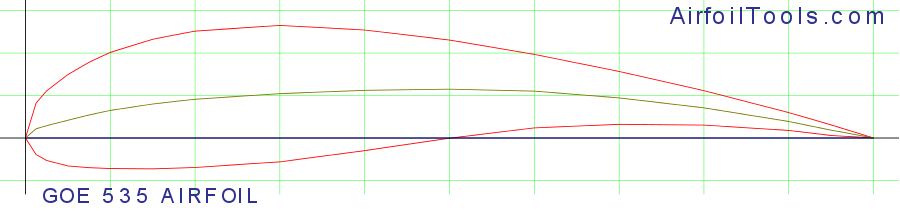

GOE 535 AIRFOILPreviewDetails
EPPLER 561 AIRFOILPreviewDetails
EPPLER 793 AIRFOILPreviewDetails
EPPLER 558 AIRFOILPreviewDetails
E591PreviewDetails
GOE 612 AIRFOILPreviewDetails

Polars for EPPLER 560 AIRFOIL (e560-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   e560-il50,00097.8 at α=3.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e560-il50,000531.1 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e560-il100,000945.7 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e560-il100,000554.6 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e560-il200,000972.8 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   e560-il200,000575.3 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   e560-il500,0009105.6 at α=7°Mach=0 Ncrit=9Xfoil predictionDetails
   e560-il500,0005103.3 at α=7.25°Mach=0 Ncrit=5Xfoil predictionDetails
   e560-il1,000,0009133.1 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   e560-il1,000,0005123.5 at α=8.25°Mach=0 Ncrit=5Xfoil predictionDetails
