EPPLER 49 AIRFOIL (e49-il)

EPPLER 49 AIRFOIL - Eppler E49 low Reynolds number airfoil


Airfoil e49-il
Details Dat file Parser
(e49-il) EPPLER 49 AIRFOIL
Eppler E49 low Reynolds number airfoil
Max thickness 7.2% at 38.4% chord.
Max camber 6.5% at 62.2% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
EPPLER 49 AIRFOIL
      15.0      10.0

 0.0002000 0.0216700
 0.0032500 0.0275500
 0.0106500 0.0350900
 0.0377900 0.0525200
 0.0573200 0.0616200
 0.1385800 0.0863300
 0.2934500 0.1088000
 0.3843200 0.1143100
 0.6220800 0.1086800
 0.6676800 0.1042800
 0.8905500 0.0593500
 0.9378100 0.0375600
 0.9873600 0.0066800
 0.9966400 0.0016100
 1.0000000 0.0000000

 0.0002000 0.0216700
 0.0023000 0.0183600
 0.0110000 0.0167400
 0.3336100 0.0399300
 0.3901600 0.0422400
 0.4483800 0.0437000
 0.7861900 0.0330400
 0.9856000 0.0039800
 0.9963900 0.0010800
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

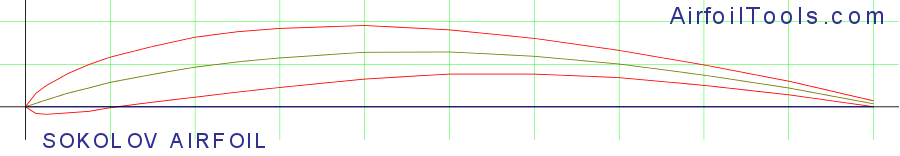

GOE 804 (EA 8) AIRFOILPreviewDetails
GOE 499 AIRFOILPreviewDetails
lrn1007PreviewDetails
SOKOLOV AIRFOILPreviewDetails
GOE 495 AIRFOILPreviewDetails
EPPLER 58 AIRFOILPreviewDetails
GOE 484 AIRFOILPreviewDetails
davissmPreviewDetails
E385 (8.41%)PreviewDetails
GOE 610 B AIRFOILPreviewDetails

Polars for EPPLER 49 AIRFOIL (e49-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   e49-il50,000937.5 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e49-il50,000534.3 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e49-il100,000956.6 at α=6.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e49-il100,000550.9 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   e49-il200,000982.3 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   e49-il200,000565 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e49-il500,0009119.1 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e49-il1,000,0009155.5 at α=2.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e49-il1,000,0005123.1 at α=0.75°Mach=0 Ncrit=5Xfoil predictionDetails
