EPPLER 435 AIRFOIL (e435-il)

EPPLER 435 AIRFOIL - Eppler E435 sailplane airfoil


Airfoil e435-il
Details Dat file Parser
(e435-il) EPPLER 435 AIRFOIL
Eppler E435 sailplane airfoil
Max thickness 16.2% at 40.9% chord.
Max camber 4.4% at 56.2% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
EPPLER 435 AIRFOIL
       35.       38.

 0.0000100 0.0003500
 0.0001400 0.0020300
 0.0006800 0.0047400
 0.0031400 0.0109700
 0.0105400 0.0217900
 0.0221700 0.0333200
 0.0379300 0.0451500
 0.0577100 0.0569100
 0.0813700 0.0683200
 0.1087100 0.0791400
 0.1395200 0.0891300
 0.1735400 0.0981200
 0.2104600 0.1059400
 0.2499600 0.1124600
 0.2916700 0.1175500
 0.3351900 0.1211300
 0.3801100 0.1230900
 0.4259900 0.1233500
 0.4724500 0.1218100
 0.5191200 0.1184300
 0.5657000 0.1131900
 0.6119200 0.1061600
 0.6575600 0.0975000
 0.7024400 0.0875400
 0.7462100 0.0768700
 0.7882400 0.0659500
 0.8279300 0.0551300
 0.8647000 0.0447000
 0.8979500 0.0348900
 0.9271700 0.0259300
 0.9518100 0.0179000
 0.9716300 0.0107800
 0.9866800 0.0049500
 0.9965000 0.0012300
 1.0000000 0.0000000

 0.0000100 0.0003500
 0.0000600 -.0012200
 0.0001600 -.0019500
 0.0003200 -.0026400
 0.0005500 -.0032800
 0.0008800 -.0038800
 0.0013200 -.0044800
 0.0018300 -.0050700
 0.0030800 -.0062700
 0.0046000 -.0074500
 0.0073300 -.0092300
 0.0113800 -.0113800
 0.0262200 -.0169200
 0.0464600 -.0219000
 0.0718000 -.0262800
 0.1019600 -.0300400
 0.1365400 -.0332200
 0.1751000 -.0358300
 0.2171100 -.0378200
 0.2620500 -.0391700
 0.3093500 -.0398300
 0.3583900 -.0396900
 0.4085400 -.0386300
 0.4591600 -.0362900
 0.5101200 -.0321300
 0.5616800 -.0262800
 0.6137400 -.0192100
 0.6661600 -.0115800
 0.7183600 -.0043900
 0.7692800 0.0016400
 0.8177800 0.0060600
 0.8627101 0.0086600
 0.9029300 0.0094100
 0.9373800 0.0084200
 0.9649299 0.0060300
 0.9846000 0.0031300
 0.9962000 0.0008500
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

EPPLER 587 AIRFOILPreviewDetails
FX 73-K-170/22PreviewDetails
WORTMANN FX 73-170PreviewDetails

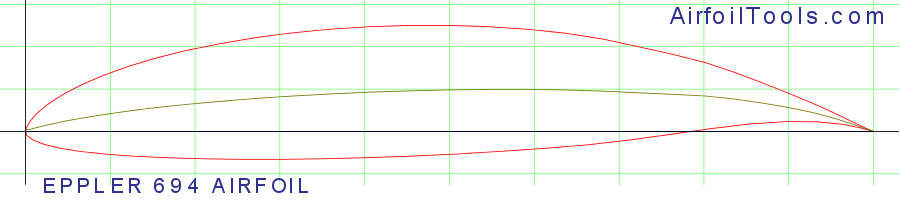

EPPLER 694 AIRFOILPreviewDetails
FX 83-W-160PreviewDetails
FX 62-K-153/20 AIRFOILPreviewDetails
EPPLER 657 AIRFOILPreviewDetails
EPPLER 580 AIRFOILPreviewDetails
EPPLER 678 AIRFOILPreviewDetails
NASA NLF1015PreviewDetails

Polars for EPPLER 435 AIRFOIL (e435-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   e435-il50,00097.6 at α=10.5°Mach=0 Ncrit=9Xfoil predictionDetails
   e435-il50,000519.4 at α=11.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e435-il100,000948 at α=10.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e435-il100,000544.8 at α=8°Mach=0 Ncrit=5Xfoil predictionDetails
   e435-il200,000979.3 at α=8°Mach=0 Ncrit=9Xfoil predictionDetails
   e435-il200,000578.3 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   e435-il500,0009119.5 at α=6.25°Mach=0 Ncrit=9Xfoil predictionDetails
   e435-il500,0005111.8 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   e435-il1,000,0009148.7 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   e435-il1,000,0005133 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
