ARA-D 10% AIRFOIL (arad10-il)

ARA-D 10% AIRFOIL - Aeronautical Research Association/Bocci-Dowty Rotol ARA-D 10% thick propeller airfoil


Airfoil arad10-il
Details Dat file Parser
(arad10-il) ARA-D 10% AIRFOIL
Aeronautical Research Association/Bocci-Dowty Rotol ARA-D 10% thick propeller airfoil
Max thickness 10% at 25% chord.
Max camber 4% at 35% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format

 ARA-D 10% AIRFOIL
26.        26.

 0.00000   0.00000
  .00300    .013713
  .01000    .025227
  .02000    .035554
  .04000    .049237
  .07000    .062305
  .10000    .070856
  .15000    .079585
  .20000    .084614
  .25000    .087500
  .30000    .088908
  .35000    .088961
  .40000    .087685
  .45000    .085232
  .50000    .081734
  .55000    .077289
  .60000    .072014
  .65000    .066012
  .70000    .059363
  .75000    .052101
  .80000    .044232
  .85000    .035756
  .90000    .026692
  .95000    .017146
  .97500    .012327
 1.00000    .007500

 0.00000   0.00000
  .00300   -.007388
  .01000   -.012555
  .02000   -.016369
  .04000   -.020033
  .07000   -.021626
  .10000   -.021088
  .15000   -.018291
  .20000   -.015159
  .25000   -.012500
  .30000   -.010571
  .35000   -.009175
  .40000   -.008108
  .45000   -.007304
  .50000   -.006734
  .55000   -.006377
  .60000   -.006214
  .65000   -.006227
  .70000   -.006399
  .75000   -.006673
  .80000   -.006965
  .85000   -.007181
  .90000   -.007282
  .95000   -.007282
  .97500   -.007338
 1.00000   -.007500
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

S4180-098-84PreviewDetails
S2091-101-83PreviewDetails

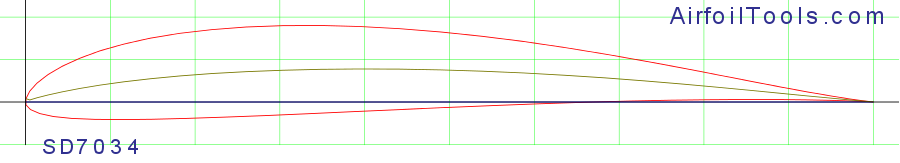

SD7034PreviewDetails
GOE 385 AIRFOILPreviewDetails
GOE 389 AIRFOILPreviewDetails
GOE 596 AIRFOILPreviewDetails
GOE 115 (MVA MK.2) AIRFOILPreviewDetails
Fage & Collins 3PreviewDetails
GOE 613 AIRFOILPreviewDetails
USA 26 AIRFOILPreviewDetails

Polars for ARA-D 10% AIRFOIL (arad10-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   arad10-il50,000934.7 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   arad10-il50,000536.7 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   arad10-il100,000951.3 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   arad10-il100,000549.5 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
   arad10-il200,000966.2 at α=3.25°Mach=0 Ncrit=9Xfoil predictionDetails
   arad10-il200,000561.7 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   arad10-il500,000982.1 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   arad10-il500,000582.3 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   arad10-il1,000,0009100.6 at α=7.75°Mach=0 Ncrit=9Xfoil predictionDetails
   arad10-il1,000,000598.7 at α=8°Mach=0 Ncrit=5Xfoil predictionDetails
