NASA/AMES A-02 AIRFOIL (ames02-il)

NASA/AMES A-02 AIRFOIL - NASA/AMES/Hicks A-02 transonic rotorcraft airfoil


Airfoil ames02-il
Details Dat file Parser
(ames02-il) NASA/AMES A-02 AIRFOIL
NASA/AMES/Hicks A-02 transonic rotorcraft airfoil
Max thickness 7.7% at 30% chord.
Max camber 0.5% at 12.5% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
 NASA/AMES A-02 AIRFOIL
50.       50.

 0.0000    0.000000
 0.0002    0.004447
 0.0004    0.005487
 0.0006    0.006260
 0.0008    0.006870
 0.0010    0.007405
 0.0020    0.009427
 0.0030    0.010911
 0.0040    0.012116
 0.0050    0.013145
 0.0100    0.016948
 0.0200    0.021917
 0.0300    0.025388
 0.0400    0.028068
 0.0500    0.030242
 0.0600    0.032058
 0.0700    0.033602
 0.0800    0.034931
 0.0900    0.036084
 0.1000    0.037092
 0.1250    0.039113
 0.1500    0.040623
 0.1750    0.041729
 0.2000    0.042547
 0.2500    0.043511
 0.3000    0.043849
 0.3500    0.043624
 0.4000    0.042929
 0.4500    0.041764
 0.5000    0.040154
 0.5500    0.038102
 0.6000    0.035589
 0.6500    0.032587
 0.7000    0.029091
 0.7250    0.027174
 0.7500    0.025164
 0.7750    0.023081
 0.8000    0.020932
 0.8250    0.018676
 0.8500    0.016355
 0.8750    0.014114
 0.9000    0.012012
 0.9250    0.010122
 0.9500    0.008552
 0.9600    0.008043
 0.9700    0.007621
 0.9800    0.007296
 0.9900    0.007083
 0.9950    0.007025
 1.0000    0.007000

 0.0000    0.000000
 0.0002   -0.002769
 0.0004   -0.003793
 0.0006   -0.004403
 0.0008   -0.004893
 0.0010   -0.005311
 0.0020   -0.006857
 0.0030   -0.007961
 0.0040   -0.008847
 0.0050   -0.009591
 0.0100   -0.012276
 0.0200   -0.015688
 0.0300   -0.018079
 0.0400   -0.019960
 0.0500   -0.021521
 0.0600   -0.022860
 0.0700   -0.024028
 0.0800   -0.025059
 0.0900   -0.025976
 0.1000   -0.026800
 0.1250   -0.028522
 0.1500   -0.029892
 0.1750   -0.030971
 0.2000   -0.031827
 0.2500   -0.032971
 0.3000   -0.033503
 0.3500   -0.033395
 0.4000   -0.032693
 0.4500   -0.031399
 0.5000   -0.029570
 0.5500   -0.027278
 0.6000   -0.024590
 0.6500   -0.021568
 0.7000   -0.018295
 0.7250   -0.016609
 0.7500   -0.014920
 0.7750   -0.013265
 0.8000   -0.011668
 0.8250   -0.010175
 0.8500   -0.008736
 0.8750   -0.007290
 0.9000   -0.005839
 0.9250   -0.004383
 0.9500   -0.002924
 0.9600   -0.002340
 0.9700   -0.001755
 0.9800   -0.001169
 0.9900   -0.000585
 0.9950   -0.000293
 1.0000    0.000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

NASA/AMES 63A108 MOD C AIRFOILPreviewDetails
D.G.A. 1182PreviewDetails
S8025 (8%)PreviewDetails
BOEING-VERTOL VR-15 AIRFOILPreviewDetails

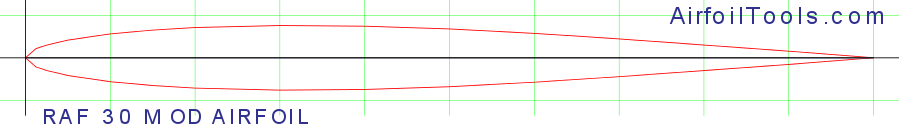

RAF 30 MOD AIRFOILPreviewDetails
NACA M2 AIRFOILPreviewDetails
NACA 0008PreviewDetails
NACA M2PreviewDetails

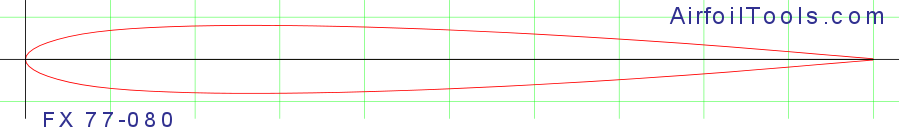

WORTMANN FX 77-080PreviewDetails
SIKORSKY SSC-A07 AIRFOILPreviewDetails

Polars for NASA/AMES A-02 AIRFOIL (ames02-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   ames02-il50,000924.5 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   ames02-il50,000522.8 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
   ames02-il100,000931.7 at α=3.25°Mach=0 Ncrit=9Xfoil predictionDetails
   ames02-il100,000531.2 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   ames02-il200,000937.3 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   ames02-il200,000541.9 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   ames02-il500,000954.4 at α=6.5°Mach=0 Ncrit=9Xfoil predictionDetails
   ames02-il500,000558.7 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   ames02-il1,000,000969.6 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   ames02-il1,000,000572.8 at α=8.25°Mach=0 Ncrit=5Xfoil predictionDetails
