NACA 0008 (naca0008-il)

NACA 0008 - NACA 0008 airfoil


Airfoil naca0008-il
Details Dat file Parser
(naca0008-il) NACA 0008
NACA 0008 airfoil
Max thickness 8% at 30% chord.
Max camber 0% at 0% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
NACA 0008
1.0000     0.00084
0.9500     0.00537
0.9000     0.00965
0.8000     0.01749
0.7000     0.02443
0.6000     0.03043
0.5000     0.03529
0.4000     0.03869
0.3000     0.04001
0.2500     0.03961
0.2000     0.03825
0.1500     0.03564
0.1000     0.03121
0.0750     0.02800
0.0500     0.02369
0.0250     0.01743
0.0125     0.01263
0.0000     0.00000
0.0125     -0.01263
0.0250     -0.01743
0.0500     -0.02369
0.0750     -0.02800
0.1000     -0.03121
0.1500     -0.03564
0.2000     -0.03825
0.2500     -0.03961
0.3000     -0.04001
0.4000     -0.03869
0.5000     -0.03529
0.6000     -0.03043
0.7000     -0.02443
0.8000     -0.01749
0.9000     -0.00965
0.9500     -0.00537
1.0000     -0.00084
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

NACA M2 AIRFOILPreviewDetails
NACA M2PreviewDetails
WORTMANN FX 77-080PreviewDetails
RAF 30 MOD AIRFOILPreviewDetails
HQ 0/9 AIRFOILPreviewDetails

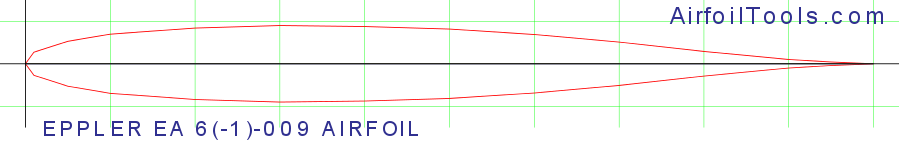

EPPLER EA 6(-1)-009 AIRFOILPreviewDetails
S9027 (8%)PreviewDetails
NACA-0009 9.0% smoothedPreviewDetails
EH 0.0/9.0PreviewDetails
S9033 (7.5%)PreviewDetails

Polars for NACA 0008 (naca0008-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   naca0008-il50,000926.1 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   naca0008-il50,000524.6 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   naca0008-il100,000934.6 at α=3.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca0008-il100,000530.4 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   naca0008-il200,000941.1 at α=3.25°Mach=0 Ncrit=9Xfoil predictionDetails
   naca0008-il200,000538.5 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
   naca0008-il500,000950.2 at α=5.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca0008-il500,000556.2 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
   naca0008-il1,000,000968.3 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca0008-il1,000,000569.9 at α=7.5°Mach=0 Ncrit=5Xfoil predictionDetails
