AH 79-K-135/20 B (ah79k135-il)

AH 79-K-135/20 B - Althaus AH 79-K-135/20 airfoil for use with flaps (K)


Airfoil ah79k135-il
Details Dat file Parser
(ah79k135-il) AH 79-K-135/20 B
Althaus AH 79-K-135/20 airfoil for use with flaps (K)
Max thickness 13.5% at 40.2% chord.
Max camber 3.1% at 40.2% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
AH 79-K-135/20 B
1.00000     0.00000
0.99893     0.00038
0.99572     0.00142
0.99039     0.00280
0.98296     0.00440
0.97347     0.00629
0.96194     0.00841
0.94844     0.01077
0.93301     0.01340
0.91573     0.01630
0.89668     0.01942
0.87592     0.02273
0.85355     0.02640
0.82967     0.03051
0.80438     0.03571
0.77779     0.04278
0.75000     0.05094
0.72114     0.05912
0.69134     0.06694
0.66072     0.07394
0.62941     0.07989
0.59755     0.08482
0.56526     0.08887
0.53270     0.09215
0.50000     0.09469
0.46730     0.09650
0.43474     0.09759
0.40245     0.09796
0.37059     0.09762
0.33928     0.09659
0.30866     0.09486
0.27886     0.09245
0.25000     0.08938
0.22221     0.08569
0.19562     0.08146
0.17033     0.07671
0.14645     0.07146
0.12408     0.06579
0.10332     0.05973
0.08427     0.05341
0.06699     0.04680
0.05156     0.03990
0.03806     0.03315
0.02653     0.02676
0.01704     0.02019
0.00961     0.01410
0.00428     0.00864
0.00107     0.00435
0.00000     0.00000
0.00107     -0.00390
0.00428     -0.00688
0.00961     -0.00988
0.01704     -0.01304
0.02653     -0.01612
0.03806     -0.01866
0.05156     -0.02117
0.06699     -0.02344
0.08427     -0.02556
0.10332     -0.02747
0.12408     -0.02919
0.14645     -0.03074
0.17033     -0.03212
0.19562     -0.03332
0.22221     -0.03436
0.25000     -0.03522
0.27886     -0.03591
0.30866     -0.03642
0.33928     -0.03676
0.37059     -0.03693
0.40245     -0.03691
0.43474     -0.03669
0.46730     -0.03630
0.50000     -0.03571
0.53270     -0.03489
0.56526     -0.03387
0.59755     -0.03264
0.62941     -0.03112
0.66072     -0.02931
0.69134     -0.02726
0.72114     -0.02500
0.75000     -0.02244
0.77779     -0.01968
0.80438     -0.01681
0.82967     -0.01372
0.85355     -0.01060
0.87592     -0.00763
0.89668     -0.00499
0.91573     -0.00291
0.93301     -0.00141
0.94844     -0.00040
0.96194     0.00016
0.97347     0.00031
0.98296     0.00030
0.99039     0.00014
0.99572     -0.00007
0.99893     -0.00005
1.00000     0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

AH 81-131PreviewDetails
AH 93-K-132/15PreviewDetails

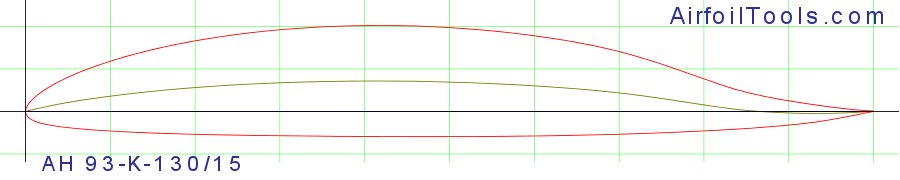

AH 93-K-130/15PreviewDetails
AH 93-K-131/15PreviewDetails

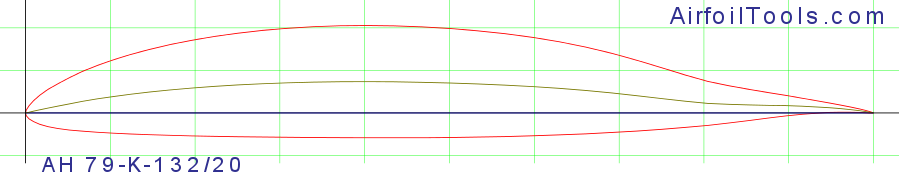

AH 79-K-132/20PreviewDetails
AH 88-K-136/16PreviewDetails
AH 79-K-143/18PreviewDetails
MRC-16PreviewDetails
E197 (13.49%)PreviewDetails
NREL's S801 AirfoilPreviewDetails

Polars for AH 79-K-135/20 B (ah79k135-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   ah79k135-il50,000924 at α=10.75°Mach=0 Ncrit=9Xfoil predictionDetails
   ah79k135-il50,000524.3 at α=10°Mach=0 Ncrit=5Xfoil predictionDetails
   ah79k135-il100,000948 at α=8.5°Mach=0 Ncrit=9Xfoil predictionDetails
   ah79k135-il100,000546.3 at α=8°Mach=0 Ncrit=5Xfoil predictionDetails
   ah79k135-il200,000978.9 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   ah79k135-il200,000574.4 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   ah79k135-il500,0009104.3 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   ah79k135-il500,000595 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   ah79k135-il1,000,0009122.7 at α=4.25°Mach=0 Ncrit=9Xfoil predictionDetails
   ah79k135-il1,000,0005111.7 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
