USA 49 AIRFOIL (usa49-il)

USA 49 AIRFOIL - USA-49 airfoil


Airfoil usa49-il
Details Dat file Parser
(usa49-il) USA 49 AIRFOIL
USA-49 airfoil
Max thickness 7.3% at 30% chord.
Max camber 1.7% at 30% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
USA 49 AIRFOIL
       17.       17.

 0.0000000 0.0000000
 0.0125000 0.0140000
 0.0250000 0.0200000
 0.0500000 0.0267000
 0.0750000 0.0330000
 0.1000000 0.0386000
 0.1500000 0.0457000
 0.2000000 0.0500000
 0.3000000 0.0535000
 0.4000000 0.0527000
 0.5000000 0.0483000
 0.6000000 0.0424000
 0.7000000 0.0350000
 0.8000000 0.0260000
 0.9000000 0.0150000
 0.9500000 0.0090000
 1.0000000 0.0035000

 0.0000000 0.0000000
 0.0125000 -.0065000
 0.0250000 -.0097000
 0.0500000 -.0140000
 0.0750000 -.0163000
 0.1000000 -.0173000
 0.1500000 -.0183000
 0.2000000 -.0190000
 0.3000000 -.0190000
 0.4000000 -.0180000
 0.5000000 -.0167000
 0.6000000 -.0143000
 0.7000000 -.0110000
 0.8000000 -.0077000
 0.9000000 -.0030000
 0.9500000 -.0010000
 1.0000000 0.0012000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

M6 (65%)PreviewDetails
RG 14A-1.4/7.0 AIRFOILPreviewDetails
EH 2.0/7.0PreviewDetails
TSAGI 8% AIRFOILPreviewDetails
MH 22 7.2%PreviewDetails
AG38PreviewDetails
Eh 1.0/7.0PreviewDetails
AG44ct -02fPreviewDetails

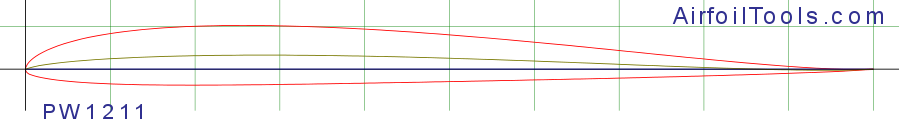

PW1211PreviewDetails
NACA M11 AIRFOILPreviewDetails

Polars for USA 49 AIRFOIL (usa49-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   usa49-il50,000933.1 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   usa49-il50,000533.6 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   usa49-il100,000943.9 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   usa49-il100,000542.1 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
   usa49-il200,000952.1 at α=3.75°Mach=0 Ncrit=9Xfoil predictionDetails
   usa49-il200,000548.5 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
   usa49-il500,000959.7 at α=7°Mach=0 Ncrit=9Xfoil predictionDetails
   usa49-il500,000565.6 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   usa49-il1,000,000978 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   usa49-il1,000,000575.1 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
