SG6043 (sg6043-il)

SG6043 - Selig / Giguere SG6043 wind turbine airfoil (high L/D)


Airfoil sg6043-il
Details Dat file Parser
(sg6043-il) SG6043
Selig / Giguere SG6043 wind turbine airfoil (high L/D)
Max thickness 10% at 32.1% chord.
Max camber 5.1% at 53.3% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
SG6043
    1.000000   .000000
     .998105   .000656
     .992735   .002712
     .984387   .006072
     .973434   .010465
     .960071   .015523
     .944288   .020916
     .925966   .026547
     .905161   .032475
     .882072   .038683
     .856884   .045099
     .829794   .051648
     .801008   .058240
     .770741   .064777
     .739215   .071138
     .706663   .077173
     .673195   .082684
     .638892   .087606
     .603962   .091903
     .568537   .095505
     .532761   .098415
     .496847   .100592
     .460955   .102010
     .425276   .102690
     .389995   .102599
     .355272   .101752
     .321306   .100174
     .288269   .097880
     .256330   .094905
     .225671   .091274
     .196447   .087021
     .168817   .082199
     .142926   .076839
     .118895   .070995
     .096866   .064730
     .076936   .058094
     .059198   .051170
     .043757   .043981
     .030622   .036590
     .019828   .029159
     .011416   .021706
     .005277   .014355
     .001496   .007410
     .000024   .000942
     .000588  -.004677
     .003930  -.008595
     .010772  -.011195
     .020868  -.013164
     .034086  -.014302
     .050504  -.014598
     .070145  -.014215
     .092915  -.013293
     .118637  -.011970
     .147117  -.010343
     .178147  -.008477
     .211498  -.006446
     .246927  -.004303
     .284172  -.002104
     .322960   .000114
     .363008   .002319
     .404014   .004498
     .445705   .006689
     .487849   .008933
     .530290   .011167
     .572862   .013270
     .615252   .015037
     .657041   .016351
     .697849   .017212
     .737347   .017604
     .775201   .017514
     .811085   .016945
     .844678   .015916
     .875671   .014467
     .903773   .012654
     .928712   .010558
     .950241   .008276
     .968141   .005908
     .982146   .003613
     .992088   .001700
     .998026   .000453
     .999999   .000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 496 AIRFOILPreviewDetails
FX 63-100 AIRFOILPreviewDetails
GOE 500 AIRFOILPreviewDetails
EPPLER 66 AIRFOILPreviewDetails

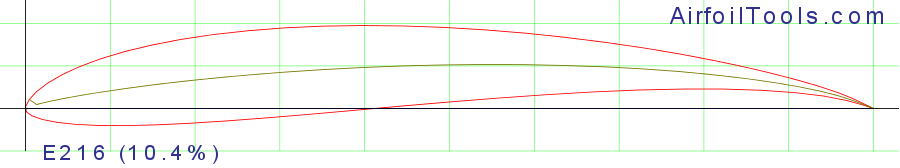

E216 (10.4%)PreviewDetails
RAF 32 MOD AIRFOILPreviewDetails
MH 116 9.84%PreviewDetails
S4062-095-87PreviewDetails
FX 83-W-108PreviewDetails
GOE 547 AIRFOILPreviewDetails

Polars for SG6043 (sg6043-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   sg6043-il50,000939.7 at α=8.75°Mach=0 Ncrit=9Xfoil predictionDetails
   sg6043-il50,000537.9 at α=8°Mach=0 Ncrit=5Xfoil predictionDetails
   sg6043-il100,000966.5 at α=7°Mach=0 Ncrit=9Xfoil predictionDetails
   sg6043-il100,000565.6 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   sg6043-il200,000998 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sg6043-il200,000594.7 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   sg6043-il500,0009143 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sg6043-il500,0005129.8 at α=2.25°Mach=0 Ncrit=5Xfoil predictionDetails
   sg6043-il1,000,0009175.2 at α=2.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sg6043-il1,000,0005145.2 at α=2.5°Mach=0 Ncrit=5Xfoil predictionDetails
