SD7037-092-88 (sd7037-il)

SD7037-092-88 - Selig/Donovan SD7037 low Reynolds number airfoil


Airfoil sd7037-il
Details Dat file Parser
(sd7037-il) SD7037-092-88
Selig/Donovan SD7037 low Reynolds number airfoil
Max thickness 9.2% at 26.1% chord.
Max camber 2.5% at 44.7% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
  SD7037-092-88
  1.00000  0.0
  0.99672  0.00042
  0.98707  0.00180
  0.97146  0.00436
  0.95041  0.00811
  0.92450  0.01295
  0.89425  0.01865
  0.86015  0.02490
  0.82261  0.03141
  0.78201  0.03788
  0.73865  0.04413
  0.69294  0.05011
  0.64539  0.05572
  0.59655  0.06085
  0.54693  0.06538
  0.49706  0.06917
  0.44745  0.07211
  0.39862  0.07410
  0.35101  0.07504
  0.30508  0.07488
  0.26125  0.07358
  0.21989  0.07113
  0.18137  0.06754
  0.14601  0.06286
  0.11410  0.05715
  0.08586  0.05049
  0.06146  0.04300
  0.04102  0.03486
  0.02462  0.02632
  0.01232  0.01770
  0.00418  0.00936
  0.00021  0.00185
  0.00127 -0.00393
  0.00806 -0.00839
  0.02038 -0.01227
  0.03800 -0.01541
  0.06074 -0.01777
  0.08844 -0.01934
  0.12084 -0.02017
  0.15765 -0.02032
  0.19850 -0.01987
  0.24296 -0.01891
  0.29055 -0.01754
  0.34071 -0.01586
  0.39288 -0.01396
  0.44643 -0.01190
  0.50074 -0.00976
  0.55519 -0.00760
  0.60914 -0.00549
  0.66197 -0.00349
  0.71305 -0.00168
  0.76178 -0.00014
  0.80752  0.00104
  0.84964  0.00182
  0.88756  0.00220
  0.92071  0.00218
  0.94859  0.00185
  0.97077  0.00132
  0.98690  0.00071
  0.99671  0.00021
  1.00000  0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

SA7035PreviewDetails

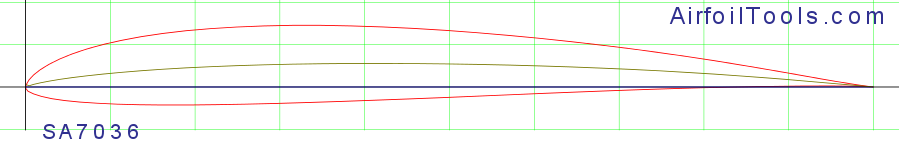

SA7036PreviewDetails
S9000 (9%)PreviewDetails
S7075 (9%)PreviewDetails
SA7038PreviewDetails
SD7080 (9.2%)PreviewDetails
SD5060 (9.5%)PreviewDetails
MH 117 9.8%PreviewDetails
MH 32 8.7%PreviewDetails
S3014-095-85PreviewDetails

Polars for SD7037-092-88 (sd7037-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   sd7037-il50,000934.5 at α=6.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sd7037-il50,000539.1 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   sd7037-il100,000955.2 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   sd7037-il100,000555.4 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   sd7037-il200,000974.7 at α=4.75°Mach=0 Ncrit=9Xfoil predictionDetails
   sd7037-il200,000570.8 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   sd7037-il500,000999.3 at α=4.25°Mach=0 Ncrit=9Xfoil predictionDetails
   sd7037-il500,000590.1 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   sd7037-il1,000,0009116 at α=4.25°Mach=0 Ncrit=9Xfoil predictionDetails
   sd7037-il1,000,0005104.6 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
