NASA SC(2)-0518 AIRFOIL (sc20518-il)

NASA SC(2)-0518 AIRFOIL - NASA SC(2)-0518 airfoil (NASA TP-2969)


Airfoil sc20518-il
Details Dat file Parser
(sc20518-il) NASA SC(2)-0518 AIRFOIL
NASA SC(2)-0518 airfoil (NASA TP-2969)
Max thickness 18% at 35% chord.
Max camber 1.9% at 82% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
NASA SC(2)-0518 AIRFOIL
      103.      103.

 0.000000  0.000000
 0.002000  0.013900
 0.005000  0.021300
 0.010000  0.029100
 0.020000  0.038900
 0.030000  0.045600
 0.040000  0.050800
 0.050000  0.055000
 0.060000  0.058500
 0.070000  0.061500
 0.080000  0.064200
 0.090000  0.066600
 0.100000  0.068700
 0.110000  0.070700
 0.120000  0.072500
 0.130000  0.074200
 0.140000  0.075700
 0.150000  0.077100
 0.160000  0.078400
 0.170000  0.079600
 0.180000  0.080700
 0.190000  0.081800
 0.200000  0.082800
 0.210000  0.083700
 0.220000  0.084500
 0.230000  0.085300
 0.240000  0.086000
 0.250000  0.086600
 0.260000  0.087200
 0.270000  0.087700
 0.280000  0.088200
 0.290000  0.088600
 0.300000  0.089000
 0.310000  0.089300
 0.320000  0.089600
 0.330000  0.089800
 0.340000  0.090000
 0.350000  0.090100
 0.360000  0.090200
 0.370000  0.090300
 0.380000  0.090300
 0.390000  0.090300
 0.400000  0.090200
 0.410000  0.090100
 0.420000  0.089900
 0.430000  0.089700
 0.440000  0.089400
 0.450000  0.089100
 0.460000  0.088700
 0.470000  0.088300
 0.480000  0.087800
 0.490000  0.087300
 0.500000  0.086700
 0.510000  0.086000
 0.520000  0.085300
 0.530000  0.084500
 0.540000  0.083700
 0.550000  0.082800
 0.560000  0.081900
 0.570000  0.080900
 0.580000  0.079800
 0.590000  0.078700
 0.600000  0.077500
 0.610000  0.076300
 0.620000  0.075000
 0.630000  0.073700
 0.640000  0.072400
 0.650000  0.071000
 0.660000  0.069600
 0.670000  0.068100
 0.680000  0.066600
 0.690000  0.065000
 0.700000  0.063400
 0.710000  0.061800
 0.720000  0.060100
 0.730000  0.058400
 0.740000  0.056600
 0.750000  0.054800
 0.760000  0.053000
 0.770000  0.051100
 0.780000  0.049200
 0.790000  0.047300
 0.800000  0.045300
 0.810000  0.043300
 0.820000  0.041300
 0.830000  0.039200
 0.840000  0.037100
 0.850000  0.035000
 0.860000  0.032800
 0.870000  0.030600
 0.880000  0.028400
 0.890000  0.026200
 0.900000  0.023900
 0.910000  0.021600
 0.920000  0.019300
 0.930000  0.016900
 0.940000  0.014500
 0.950000  0.012000
 0.960000  0.009400
 0.970000  0.006800
 0.980000  0.004100
 0.990000  0.001400
 1.000000 -0.001400

 0.000000  0.000000
 0.002000 -0.013900
 0.005000 -0.021300
 0.010000 -0.029100
 0.020000 -0.038900
 0.030000 -0.045700
 0.040000 -0.050900
 0.050000 -0.055000
 0.060000 -0.058500
 0.070000 -0.061500
 0.080000 -0.064200
 0.090000 -0.066600
 0.100000 -0.068700
 0.110000 -0.070700
 0.120000 -0.072500
 0.130000 -0.074200
 0.140000 -0.075800
 0.150000 -0.077300
 0.160000 -0.078700
 0.170000 -0.079900
 0.180000 -0.081100
 0.190000 -0.082200
 0.200000 -0.083200
 0.210000 -0.084100
 0.220000 -0.084900
 0.230000 -0.085700
 0.240000 -0.086400
 0.250000 -0.087000
 0.260000 -0.087500
 0.270000 -0.088000
 0.280000 -0.088400
 0.290000 -0.088800
 0.300000 -0.089100
 0.310000 -0.089300
 0.320000 -0.089500
 0.330000 -0.089600
 0.340000 -0.089700
 0.350000 -0.089700
 0.360000 -0.089600
 0.370000 -0.089500
 0.380000 -0.089300
 0.390000 -0.089000
 0.400000 -0.088700
 0.410000 -0.088300
 0.420000 -0.087800
 0.430000 -0.087200
 0.440000 -0.086500
 0.450000 -0.085800
 0.460000 -0.085000
 0.470000 -0.084100
 0.480000 -0.083100
 0.490000 -0.081900
 0.500000 -0.080600
 0.510000 -0.079200
 0.520000 -0.077700
 0.530000 -0.076100
 0.540000 -0.074400
 0.550000 -0.072600
 0.560000 -0.070700
 0.570000 -0.068800
 0.580000 -0.066800
 0.590000 -0.064700
 0.600000 -0.062600
 0.610000 -0.060400
 0.620000 -0.058200
 0.630000 -0.056000
 0.640000 -0.053700
 0.650000 -0.051400
 0.660000 -0.049100
 0.670000 -0.046800
 0.680000 -0.044400
 0.690000 -0.042000
 0.700000 -0.039600
 0.710000 -0.037200
 0.720000 -0.034800
 0.730000 -0.032400
 0.740000 -0.030000
 0.750000 -0.027600
 0.760000 -0.025200
 0.770000 -0.022900
 0.780000 -0.020600
 0.790000 -0.018300
 0.800000 -0.016100
 0.810000 -0.013900
 0.820000 -0.011800
 0.830000 -0.009800
 0.840000 -0.007900
 0.850000 -0.006100
 0.860000 -0.004400
 0.870000 -0.002900
 0.880000 -0.001600
 0.890000 -0.000500
 0.900000  0.000300
 0.910000  0.000900
 0.920000  0.001200
 0.930000  0.001200
 0.940000  0.000900
 0.950000  0.000300
 0.960000 -0.000700
 0.970000 -0.002000
 0.980000 -0.003700
 0.990000 -0.005800
 1.000000 -0.008300
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

NREL's S833 AirfoilPreviewDetails

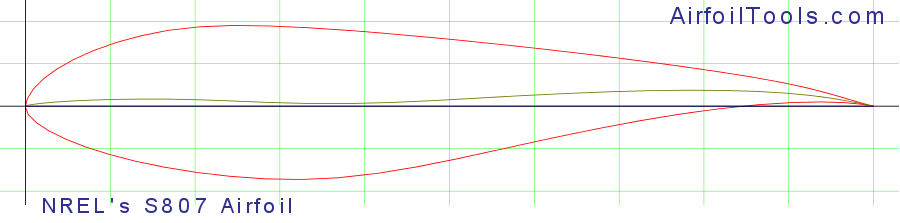

NREL's S807 AirfoilPreviewDetails
FX 60-177 AIRFOILPreviewDetails

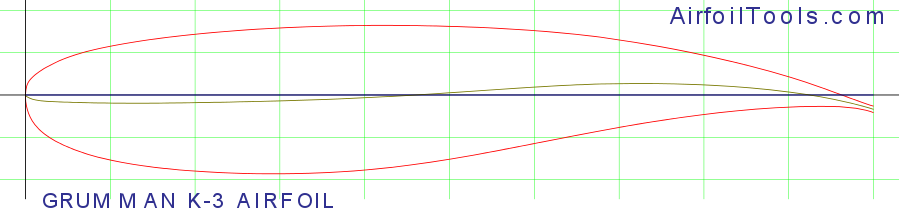

GRUMMAN K-3 AIRFOILPreviewDetails
AS5048 (18%)PreviewDetails
NASA/LANGLEY MS(1)-0317 AIRFOILPreviewDetails
NLR-7301 AIRFOILPreviewDetails
DORNIER A-5 AIRFOILPreviewDetails
NASA/LANGLEY LS(1)-0417 (GA(W)-1)PreviewDetails
P-51D ROOT (BL17.5) AIRFOILPreviewDetails

Polars for NASA SC(2)-0518 AIRFOIL (sc20518-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   sc20518-il50,000926 at α=4.25°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20518-il50,000520.9 at α=9°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20518-il100,000925.9 at α=8.5°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20518-il100,000530.2 at α=7.5°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20518-il200,000936.5 at α=8.25°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20518-il200,000543.2 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20518-il500,000959.3 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20518-il500,000562.5 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   sc20518-il1,000,000977.3 at α=7.75°Mach=0 Ncrit=9Xfoil predictionDetails
   sc20518-il1,000,000578.1 at α=8°Mach=0 Ncrit=5Xfoil predictionDetails
