S8066 (10% version of S8065 w/ lower surface aerodynamically similar) (s8066-il)

S8066 (10% version of S8065 w/ lower surface aerodynamically similar) - Selig airfoil for Q-40 pylon racing (10%).


Airfoil s8066-il
Details Dat file Parser
(s8066-il) S8066 (10% version of S8065 w/ lower surface aerodynamically similar)
Selig airfoil for Q-40 pylon racing (10%).
Max thickness 10% at 37.7% chord.
Max camber 0.8% at 56.3% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
S8066 (10% version of S8065 w/ lower surface aerodynamically similar)
    1.000000000000000000  0.000000000000000000
    0.998057840676878200  0.000166937137092193
    0.992416288358743700  0.000736101176910097
    0.983245987259313700  0.001707160029229792
    0.970646747337505600  0.003152504369279306
    0.954818541144353400  0.005146245183049103
    0.935983110880433600  0.007707809325103161
    0.914386897207902500  0.010836188874850960
    0.890294701271966600  0.014493097950599640
    0.863985843396096700  0.018611364651165420
    0.835747980435427700  0.023083453218744910
    0.805873552569857300  0.027761439717320720
    0.774651388414176800  0.032349045000253510
    0.742075285453536200  0.036620241395957260
    0.708130554465947700  0.040592132118529360
    0.673060536855025600  0.044282002220962890
    0.637083548729503900  0.047644340324827030
    0.600406080795886900  0.050640855949782890
    0.563229093923920400  0.053221357453983410
    0.525760643828765200  0.055337432323898070
    0.488207667152002000  0.056953607361102950
    0.450758802091959300  0.058050934904195550
    0.413593568949964700  0.058608081621481900
    0.376901091069881100  0.058621665900739330
    0.340872604479462600  0.058118342811318250
    0.305707681159613900  0.057129170688947360
    0.271613337606657100  0.055675760827435740
    0.238790640113367100  0.053783450602283430
    0.207435534132227100  0.051474059218642570
    0.177732390978254100  0.048771938390013110
    0.149855484388894100  0.045703538686043460
    0.123968888850612100  0.042300272293876770
    0.100227078657608300  0.038592574793425570
    0.078767791290352160  0.034613195258580670
    0.059716732851738290  0.030401400719312060
    0.043191411615824290  0.025997272168372010
    0.029320663689782260  0.021415784908867110
    0.018142208630512640  0.016669739071798080
    0.009626213537717643  0.011797414319730890
    0.003779424592163627  0.006866449528923698
    0.000504861490119302  0.002159251412195534
    0.000400153232463452 -0.001904247349762149
    0.003742396145787086 -0.005836603062247162
    0.010009005739912700 -0.010032318419174010
    0.019043328683611140 -0.014143485494395680
    0.030834186950634560 -0.018079102914508270
    0.045375275153131880 -0.021774640298329360
    0.062595493596290910 -0.025181227413669800
    0.082416556293053330 -0.028286404890973540
    0.104739175721816000 -0.031088362951255650
    0.129441762181518300 -0.033576392808939070
    0.156373007718436200 -0.035751357458343810
    0.185362001148172600 -0.037607321413554480
    0.216222807750386800 -0.039132846744997650
    0.248762958747129900 -0.040310345356248400
    0.282780529366068300 -0.041126296955429410
    0.318064339246098200 -0.041555758155484480
    0.354417087125452500 -0.041571162248819320
    0.391645197234607700 -0.041167815748720730
    0.429543776639067400 -0.040335757653581360
    0.467916685988158000 -0.039075173658798740
    0.506586195150717200 -0.037436100578794230
    0.545334272065676700 -0.035482115857896970
    0.583889632897935000 -0.033264821388625520
    0.621984839696719400 -0.030799216869729770
    0.659336570518512800 -0.028058481549376570
    0.695864758616024300 -0.024914276343846020
    0.731570700564536800 -0.021499489286928560
    0.766223587084074300 -0.018119141500758550
    0.799506767418079400 -0.014910851976491940
    0.831114349121348900 -0.011966303940033010
    0.860749475033995100 -0.009347501844977414
    0.888128005630994500 -0.007087470215592590
    0.912982886897509800 -0.005197570586413698
    0.935067371759332900 -0.003664571237356523
    0.954155536243004000 -0.002449116895450627
    0.970080315650033300 -0.001463440916806641
    0.982789320394193000 -0.000667762033907935
    0.992188134694531200 -0.000159936244795328
    0.998019447354635500  0.000009663562748016
    1.000000000000000000  0.000000000000000004
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

NACA 63-210 AIRFOILPreviewDetails
NACA 64-110 AIRFOILPreviewDetails
NASA/LANGLEY RC-SC2 AIRFOILPreviewDetails
HQ 1.0/10 AIRFOILPreviewDetails
NACA 64-210PreviewDetails
NACA 65-210PreviewDetails
NACA 0010-34 a=0.8 c(li)=0.2PreviewDetails
NACA 64A210PreviewDetails
NACA 63A210PreviewDetails

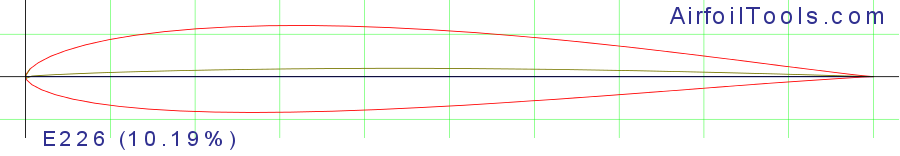

E226 (10.19%)PreviewDetails

Polars for S8066 (10% version of S8065 w/ lower surface aerodynamically similar) (s8066-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   s8066-il50,000932.6 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   s8066-il50,000531.5 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
   s8066-il100,000947.9 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   s8066-il100,000544.6 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   s8066-il200,000964.7 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   s8066-il200,000554.1 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   s8066-il500,000975 at α=3.75°Mach=0 Ncrit=9Xfoil predictionDetails
   s8066-il500,000561.6 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   s8066-il1,000,000981.2 at α=3°Mach=0 Ncrit=9Xfoil predictionDetails
   s8066-il1,000,000573.2 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
