S6063 7.05% - Selig S6063 low Reynolds number airfoil


Airfoil s6063-il
Details Dat file Parser
(s6063-il) S6063 7.05%
Selig S6063 low Reynolds number airfoil
Max thickness 7% at 29.4% chord.
Max camber 1.3% at 43.8% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
S6063 7.05%
     1.00000   0.00000
     0.99687   0.00017
     0.98758   0.00078
     0.97238   0.00197
     0.95160   0.00383
     0.92565   0.00638
     0.89500   0.00956
     0.86012   0.01328
     0.82151   0.01739
     0.77969   0.02175
     0.73513   0.02617
     0.68835   0.03050
     0.63984   0.03457
     0.59007   0.03827
     0.53954   0.04152
     0.48881   0.04424
     0.43838   0.04633
     0.38877   0.04774
     0.34047   0.04838
     0.29396   0.04823
     0.24968   0.04725
     0.20803   0.04544
     0.16941   0.04280
     0.13413   0.03938
     0.10252   0.03523
     0.07481   0.03044
     0.05123   0.02513
     0.03194   0.01943
     0.01708   0.01355
     0.00671   0.00772
     0.00088   0.00242
     0.00058  -0.00190
     0.00605  -0.00588
     0.01660  -0.00982
     0.03215  -0.01333
     0.05261  -0.01630
     0.07786  -0.01867
     0.10771  -0.02042
     0.14190  -0.02156
     0.18013  -0.02215
     0.22201  -0.02222
     0.26710  -0.02184
     0.31491  -0.02109
     0.36490  -0.02001
     0.41652  -0.01865
     0.46919  -0.01706
     0.52232  -0.01530
     0.57532  -0.01342
     0.62759  -0.01147
     0.67854  -0.00952
     0.72758  -0.00761
     0.77415  -0.00581
     0.81769  -0.00418
     0.85768  -0.00278
     0.89359  -0.00164
     0.92495  -0.00081
     0.95132  -0.00026
     0.97231   0.00002
     0.98758   0.00009
     0.99688   0.00004
     1.00000   0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

MH33PreviewDetails

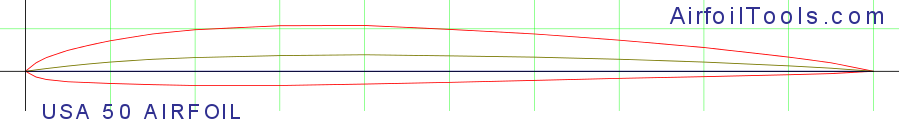

USA 50 AIRFOILPreviewDetails
RAF 25 AIRFOILPreviewDetails
S6062 8%PreviewDetails
MH 22 7.2%PreviewDetails
RG 14A-1.4/7.0 AIRFOILPreviewDetails
MH 30 7.84%PreviewDetails
AG38PreviewDetails
RAF 26 AIRFOILPreviewDetails
AG16PreviewDetails

Polars for S6063 7.05% (s6063-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   s6063-il50,000934.7 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   s6063-il50,000534.7 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   s6063-il100,000948.6 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   s6063-il100,000545.3 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   s6063-il200,000961.5 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   s6063-il200,000553.4 at α=2.75°Mach=0 Ncrit=5Xfoil predictionDetails
   s6063-il500,000974.8 at α=2.5°Mach=0 Ncrit=9Xfoil predictionDetails
   s6063-il500,000560.2 at α=2°Mach=0 Ncrit=5Xfoil predictionDetails
   s6063-il1,000,000981.3 at α=2.5°Mach=0 Ncrit=9Xfoil predictionDetails
   s6063-il1,000,000568.1 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
