NACA 65(2)-415 (naca652415-il)

NACA 65(2)-415 - NACA 65(2)-415 airfoil


Airfoil naca652415-il
Details Dat file Parser
(naca652415-il) NACA 65(2)-415
NACA 65(2)-415 airfoil
Max thickness 15% at 39.9% chord.
Max camber 2.2% at 50% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
NACA 65(2)-415
1.00000     0.00000
0.95040     0.01058
0.90080     0.02175
0.85109     0.03320
0.80126     0.04447
0.75131     0.05532
0.70124     0.06542
0.65106     0.07462
0.60079     0.08260
0.55043     0.08910
0.50000     0.09371
0.44953     0.09617
0.39903     0.09639
0.34854     0.09455
0.29807     0.09093
0.24764     0.08550
0.19726     0.07809
0.14697     0.06842
0.09682     0.05578
0.07184     0.04794
0.04697     0.03863
0.02231     0.02680
0.01016     0.01900
0.00542     0.01480
0.00313     0.01208
0.00000     0.00000
0.00687     -0.01008
0.00958     -0.01200
0.01484     -0.01472
0.02769     -0.01936
0.05303     -0.02599
0.07816     -0.03098
0.10318     -0.03510
0.15303     -0.04150
0.20274     -0.04625
0.25236     -0.04970
0.30193     -0.05205
0.35146     -0.05335
0.40097     -0.05355
0.45047     -0.05237
0.50000     -0.04962
0.54957     -0.04530
0.59921     -0.03976
0.64894     -0.03342
0.69876     -0.02654
0.74869     -0.01952
0.79874     -0.01263
0.84891     -0.00628
0.89920     -0.00107
0.94960     0.00206
1.00000     0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

NACA 63-415 AIRFOILPreviewDetails
NACA 64(2)-415PreviewDetails
NACA 66(2)-415PreviewDetails
NACA 65(2)-415 a=0.5PreviewDetails
MRC-20PreviewDetails
LOCKHEED L-188 ROOT AIRFOILPreviewDetails
GOE 601 AIRFOILPreviewDetails
HQ 3.0/15 AIRFOILPreviewDetails

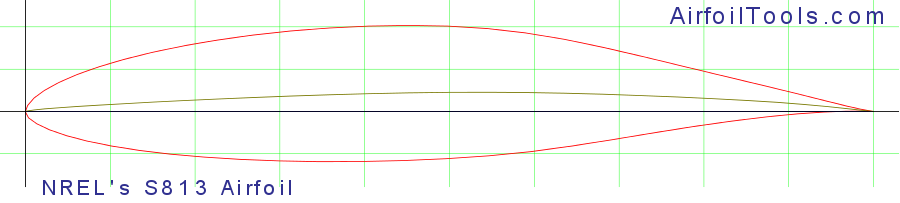

NREL's S813 AirfoilPreviewDetails
NACA 65(2)-215PreviewDetails

Polars for NACA 65(2)-415 (naca652415-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   naca652415-il50,000923.9 at α=9°Mach=0 Ncrit=9Xfoil predictionDetails
   naca652415-il50,000524 at α=8.75°Mach=0 Ncrit=5Xfoil predictionDetails
   naca652415-il100,000946.7 at α=7.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca652415-il100,000546.6 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
   naca652415-il200,000970.8 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca652415-il200,000568 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   naca652415-il500,0009100.4 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   naca652415-il500,000591.1 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   naca652415-il1,000,0009120.6 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   naca652415-il1,000,0005105.9 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
