NACA6409 9% (n6409-il)

NACA6409 9% - NACA 6409


Airfoil n6409-il
Details Dat file Parser
(n6409-il) NACA6409 9%
NACA 6409
Max thickness 9% at 29.3% chord.
Max camber 6% at 39.6% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
  NACA6409 9%
  1.00000  0.00000
  0.99732  0.00084
  0.98930  0.00333
  0.97603  0.00737
  0.95760  0.01284
  0.93423  0.01954
  0.90615  0.02724
  0.87357  0.03571
  0.83690  0.04464
  0.79647  0.05378
  0.75272  0.06283
  0.70608  0.07153
  0.65710  0.07961
  0.60627  0.08684
  0.55413  0.09302
  0.50132  0.09796
  0.44840  0.10152
  0.39590  0.10360
  0.34367  0.10352
  0.29315  0.10086
  0.24502  0.09584
  0.19988  0.08874
  0.15830  0.07992
  0.12080  0.06982
  0.08780  0.05889
  0.05968  0.04762
  0.03677  0.03646
  0.01920  0.02581
  0.00720  0.01603
  0.00080  0.00737
  0.00000  0.00000
  0.00467 -0.00573
  0.01467 -0.00956
  0.02973 -0.01157
  0.04970 -0.01192
  0.07428 -0.01080
  0.10317 -0.00844
  0.13607 -0.00513
  0.17257 -0.00119
  0.21235  0.00307
  0.25498  0.00729
  0.30012  0.01112
  0.34730  0.01425
  0.39618  0.01639
  0.44707  0.01772
  0.49868  0.01871
  0.55040  0.01925
  0.60167  0.01929
  0.65193  0.01880
  0.70065  0.01780
  0.74728  0.01634
  0.79130  0.01451
  0.83223  0.01241
  0.86957  0.01017
  0.90288  0.00791
  0.93180  0.00576
  0.95593  0.00383
  0.97503  0.00221
  0.98883  0.00101
  0.99722  0.00025
  1.00000  0.00000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 304 (FRIEDRICHSHAFEN G02)PreviewDetails
GOE 118 (MVA MK.7) AIRFOILPreviewDetails
WACO COOTIE AIRFOILPreviewDetails
GOE 529 AIRFOILPreviewDetails
GOE 303 (FRIEDRICHSHAFEN G03)PreviewDetails
GOE 450 AIRFOILPreviewDetails

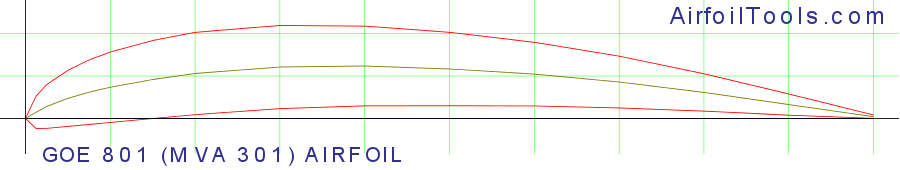

GOE 801 (MVA 301) AIRFOILPreviewDetails
GOE 802 AIRFOILPreviewDetails
GOE 802 A AIRFOILPreviewDetails
GOE 802 B AIRFOILPreviewDetails

Polars for NACA6409 9% (n6409-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   n6409-il50,000927.1 at α=10.75°Mach=0 Ncrit=9Xfoil predictionDetails
   n6409-il50,000536 at α=9°Mach=0 Ncrit=5Xfoil predictionDetails
   n6409-il100,000961.6 at α=8.5°Mach=0 Ncrit=9Xfoil predictionDetails
   n6409-il100,000563.7 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   n6409-il200,000987.1 at α=7°Mach=0 Ncrit=9Xfoil predictionDetails
   n6409-il200,000587.4 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   n6409-il500,0009122.4 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   n6409-il500,0005118.6 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   n6409-il1,000,0009151 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   n6409-il1,000,0005144.3 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
