JN-153 AIRFOIL (jn153-il)

JN-153 AIRFOIL - Narramore JN153 airfoil


Airfoil jn153-il
Details Dat file Parser
(jn153-il) JN-153 AIRFOIL
Narramore JN153 airfoil
Max thickness 17.6% at 28.2% chord.
Max camber 8.4% at 38.1% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
 JN-153 AIRFOIL
      66.0      55.0

 0.0000000 0.0000000
 0.0023478 0.0140157
 0.0048772 0.0210059
 0.0082966 0.0283462
 0.0126160 0.0359566
 0.0178253 0.0437770
 0.0239147 0.0517375
 0.0308640 0.0597981
 0.0386633 0.0678788
 0.0473026 0.0759595
 0.0567520 0.0839603
 0.0670013 0.0918412
 0.0780207 0.0995421
 0.0897900 0.1070132
 0.1023195 0.1141842
 0.1156189 0.1210354
 0.1296683 0.1275665
 0.1444078 0.1337778
 0.1598074 0.1396091
 0.1758069 0.1450405
 0.1923665 0.1500419
 0.2094461 0.1545733
 0.2269858 0.1585748
 0.2449555 0.1620163
 0.2633153 0.1648079
 0.2821152 0.1669495
 0.3012951 0.1684411
 0.3207950 0.1692927
 0.3405550 0.1694744
 0.3605051 0.1689361
 0.3805552 0.1675978
 0.4006254 0.1653795
 0.4205357 0.1618912
 0.4410162 0.1565829
 0.4621668 0.1501547
 0.4856274 0.1432666
 0.5092680 0.1360686
 0.5335387 0.1287307
 0.5582593 0.1213228
 0.5832899 0.1139449
 0.6084706 0.1066470
 0.6336913 0.0994591
 0.6588019 0.0924412
 0.6837024 0.0856033
 0.7082430 0.0789754
 0.7323436 0.0725774
 0.7558842 0.0664294
 0.7787746 0.0605414
 0.8008952 0.0549132
 0.8221756 0.0495550
 0.8425361 0.0444767
 0.8618765 0.0396684
 0.8801369 0.0351299
 0.8972373 0.0308713
 0.9131376 0.0268627
 0.9277580 0.0231239
 0.9410683 0.0196250
 0.9530086 0.0163660
 0.9635389 0.0133169
 0.9726491 0.0104177
 0.9804294 0.0076184
 0.9870196 0.0050289
 0.9924098 0.0028394
 0.9964999 0.0012297
 0.9991000 0.0002899
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0002448 -.0039587
 0.0014097 -.0085644
 0.0037100 -.0118342
 0.0077802 -.0139739
 0.0138803 -.0155934
 0.0217205 -.0168227
 0.0311905 -.0177319
 0.0422306 -.0183310
 0.0547706 -.0186599
 0.0687607 -.0187488
 0.0841207 -.0186075
 0.1008206 -.0182660
 0.1187706 -.0177345
 0.1379206 -.0170229
 0.1581905 -.0161412
 0.1795105 -.0151094
 0.2018104 -.0139275
 0.2250103 -.0125855
 0.2490302 -.0110935
 0.2737901 -.0093814
 0.2992899 -.0073792
 0.3256098 -.0051770
 0.3526796 -.0028747
 0.3803894 -.0005424
 0.4086592 0.0017600
 0.4373591 0.0040024
 0.4664090 0.0061549
 0.4956888 0.0081774
 0.5250887 0.0100399
 0.5545086 0.0117423
 0.5838385 0.0132448
 0.6129584 0.0145373
 0.6417583 0.0156197
 0.6701383 0.0164721
 0.6979983 0.0170845
 0.7252083 0.0174668
 0.7516882 0.0175990
 0.7773083 0.0175112
 0.8019983 0.0171833
 0.8256284 0.0166453
 0.8481285 0.0158872
 0.8693987 0.0149390
 0.8893387 0.0138207
 0.9078789 0.0125422
 0.9249290 0.0111337
 0.9404091 0.0096150
 0.9542593 0.0080361
 0.9663894 0.0064072
 0.9767196 0.0047680
 0.9851497 0.0032387
 0.9916798 0.0019193
 0.9963199 0.0008897
 0.9990800 0.0002299
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

USA 34 AIRFOILPreviewDetails
GOE 482 AIRFOILPreviewDetails
GOE 572 AIRFOILPreviewDetails

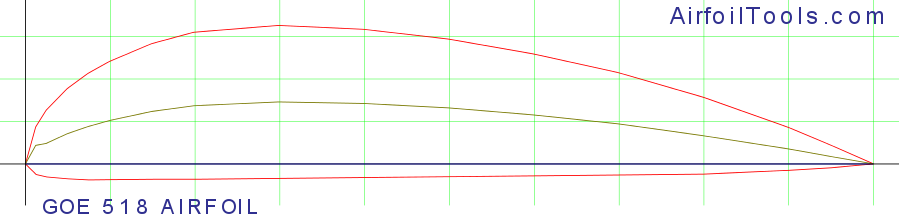

GOE 518 AIRFOILPreviewDetails
UA(2)-180 (University ofPreviewDetails
GOE 241 (MVA PR.1) AIRFOILPreviewDetails
GOE 441 AIRFOILPreviewDetails
GOE 511 AIRFOILPreviewDetails
GOE 421 AIRFOILPreviewDetails
GOE 228 (MVA H.38) AIRFOILPreviewDetails

Polars for JN-153 AIRFOIL (jn153-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   jn153-il50,00094.6 at α=9.5°Mach=0 Ncrit=9Xfoil predictionDetails
   jn153-il50,00056.5 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
   jn153-il100,00095.6 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   jn153-il100,000518.1 at α=1.25°Mach=0 Ncrit=5Xfoil predictionDetails
   jn153-il200,000916.6 at α=1.25°Mach=0 Ncrit=9Xfoil predictionDetails
   jn153-il200,000544.6 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   jn153-il500,000998.8 at α=11.5°Mach=0 Ncrit=9Xfoil predictionDetails
   jn153-il500,0005112.6 at α=10.75°Mach=0 Ncrit=5Xfoil predictionDetails
   jn153-il1,000,0009163.3 at α=11°Mach=0 Ncrit=9Xfoil predictionDetails
   jn153-il1,000,0005165.9 at α=9°Mach=0 Ncrit=5Xfoil predictionDetails
