GOE 504 AIRFOIL (goe504-il)

GOE 504 AIRFOIL - Gottingen 504 airfoil


Airfoil goe504-il
Details Dat file Parser
(goe504-il) GOE 504 AIRFOIL
Gottingen 504 airfoil
Max thickness 18% at 29.2% chord.
Max camber 5.4% at 39.2% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
GOE 504 AIRFOIL
       17.       17.

 0.0000000 0.0000000
 0.0112300 0.0231200
 0.0229500 0.0372600
 0.0467000 0.0600700
 0.0706900 0.0783900
 0.0949000 0.0927200
 0.1437400 0.1139100
 0.1929800 0.1276100
 0.2922400 0.1410700
 0.3922200 0.1415700
 0.4927400 0.1321000
 0.5936700 0.1151500
 0.6949300 0.0922200
 0.7964100 0.0653000
 0.8981100 0.0344000
 0.9490500 0.0172000
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0132900 -.0142700
 0.0260500 -.0190700
 0.0515000 -.0271700
 0.0767800 -.0322800
 0.1019800 -.0358900
 0.1522600 -.0411300
 0.2023300 -.0423700
 0.3021100 -.0383800
 0.4018100 -.0329000
 0.5015100 -.0274200
 0.6012100 -.0219300
 0.7009100 -.0164500
 0.8006000 -.0109700
 0.9003000 -.0054800
 0.9501500 -.0027400
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 284 AIRFOILPreviewDetails
GOE 288 AIRFOILPreviewDetails
GOE 679 AIRFOILPreviewDetails
GOE 449 AIRFOILPreviewDetails
N-24PreviewDetails
GOE 604 AIRFOILPreviewDetails
USA 35 AIRFOILPreviewDetails
USA 35 A AIRFOILPreviewDetails
GOE 614 AIRFOILPreviewDetails

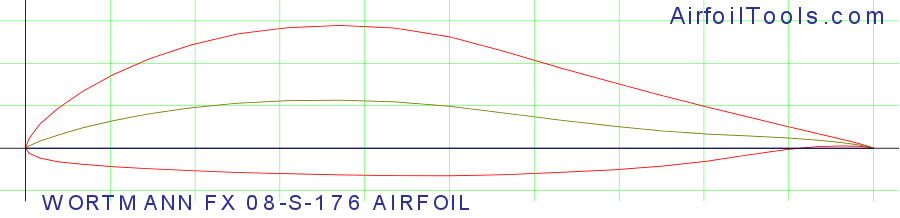

WORTMANN FX 08-S-176 AIRFOILPreviewDetails

Polars for GOE 504 AIRFOIL (goe504-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   goe504-il50,00093.7 at α=9.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe504-il50,000513.7 at α=2.75°Mach=0 Ncrit=5Xfoil predictionDetails
   goe504-il100,000934.2 at α=5.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe504-il100,000543.6 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe504-il200,000966.2 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   goe504-il200,000562.8 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe504-il500,000991.7 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   goe504-il500,000585.1 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe504-il1,000,0009114.9 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe504-il1,000,0005104.1 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
