GOE 382 AIRFOIL (goe382-il)

GOE 382 AIRFOIL - Gottingen 382 airfoil


Airfoil goe382-il
Details Dat file Parser
(goe382-il) GOE 382 AIRFOIL
Gottingen 382 airfoil
Max thickness 20% at 29% chord.
Max camber 6% at 39% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
GOE 382 AIRFOIL
       17.       17.

 0.0000000 0.0000000
 0.0104800 0.0309900
 0.0218800 0.0477300
 0.0451100 0.0747500
 0.0689000 0.0933100
 0.0929600 0.1076800
 0.1415000 0.1299600
 0.1904800 0.1454700
 0.2895400 0.1598500
 0.3896300 0.1585000
 0.4904200 0.1464000
 0.5918200 0.1249300
 0.6935199 0.0990900
 0.7954800 0.0690600
 0.8977200 0.0348600
 0.9488900 0.0169100
 1.0000000 0.0010500

 0.0000000 0.0000000
 0.0138800 -.0210900
 0.0280400 -.0263600
 0.0521100 -.0321900
 0.0772800 -.0348400
 0.1025200 -.0384900
 0.1526600 -.0405100
 0.2027200 -.0415300
 0.3026400 -.0402900
 0.4024500 -.0374600
 0.5022000 -.0336300
 0.6017800 -.0271100
 0.7013500 -.0206000
 0.8009200 -.0140800
 0.9005001 -.0075600
 0.9502800 -.0043000
 1.0000000 -.0010500
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 798 AIRFOILPreviewDetails
GOE 625 AIRFOILPreviewDetails
GOE 386 AIRFOILPreviewDetails
GOE 390 AIRFOILPreviewDetails
GOE 384 AIRFOILPreviewDetails
GOE 383 AIRFOILPreviewDetails
GOE 614 AIRFOILPreviewDetails

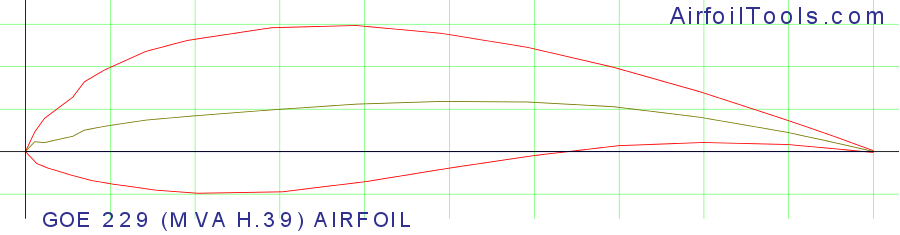

GOE 229 (MVA H.39) AIRFOILPreviewDetails
EPPLER 857 AIRFOILPreviewDetails
DRAGONFLY CANARDPreviewDetails

Polars for GOE 382 AIRFOIL (goe382-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   goe382-il50,00093.5 at α=9.25°Mach=0 Ncrit=9Xfoil predictionDetails
   goe382-il50,000514 at α=0°Mach=0 Ncrit=5Xfoil predictionDetails
   goe382-il100,000925.5 at α=1.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe382-il100,000539.7 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   goe382-il200,000960.9 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   goe382-il200,000559.5 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   goe382-il500,000987 at α=4.25°Mach=0 Ncrit=9Xfoil predictionDetails
   goe382-il500,000581.9 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe382-il1,000,0009109.6 at α=4.25°Mach=0 Ncrit=9Xfoil predictionDetails
   goe382-il1,000,0005103.9 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
