GOE 280 (DAIMLER XI) AIRFOIL (goe280-il)

GOE 280 (DAIMLER XI) AIRFOIL - Gottingen 280 (DAIMLER XI) airfoil


Airfoil goe280-il
Details Dat file Parser
(goe280-il) GOE 280 (DAIMLER XI) AIRFOIL
Gottingen 280 (DAIMLER XI) airfoil
Max thickness 7.9% at 30% chord.
Max camber 4.5% at 30% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
GOE 280 (DAIMLER XI) AIRFOIL
       17.       17.

 0.0000000 0.0000000
 0.0124500 0.0167300
 0.0249200 0.0306700
 0.0498800 0.0461300
 0.0748400 0.0575000
 0.0998300 0.0645700
 0.1498000 0.0741000
 0.1997800 0.0800400
 0.2997700 0.0851100
 0.3997700 0.0833800
 0.4997900 0.0771500
 0.5998200 0.0683200
 0.6998500 0.0558900
 0.7998900 0.0417600
 0.8999400 0.0234300
 0.9499600 0.0138600
 1.0000000 0.0040000

 0.0000000 0.0000000
 0.0125200 -.0066700
 0.0250200 -.0057300
 0.0500100 -.0025600
 0.0750000 -.0006000
 0.1000000 0.0010700
 0.1499900 0.0033000
 0.1999900 0.0048400
 0.2999800 0.0058100
 0.3999800 0.0055800
 0.4999900 0.0052500
 0.5999900 0.0045200
 0.6999900 0.0030400
 0.8000000 0.0013600
 0.9000000 -.0007700
 0.9500100 -.0023300
 1.0000000 -.0040000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 133 (MVA H.11) AIRFOILPreviewDetails

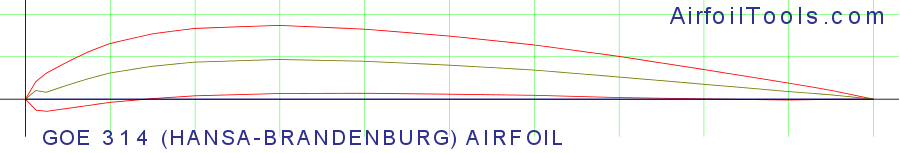

GOE 314 (HANSA-BRANDENBURG) AIRFOILPreviewDetails
GOE 328 AIRFOILPreviewDetails
GOE 408 AIRFOILPreviewDetails
GOE 277 (DAIMLER VIII) AIRFOILPreviewDetails
GOE 315 (HANSA-BRANDENBURG III.5)PreviewDetails
GOE 187 (SCHTTE-LANZ 2U10) AIRFOILPreviewDetails
GOE 309 (MVA H.41) AIRFOILPreviewDetails
GOE 278 (DAIMLER IX) AIRFOILPreviewDetails
GOE 308 (MVA H.40) AIRFOILPreviewDetails

Polars for GOE 280 (DAIMLER XI) AIRFOIL (goe280-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   goe280-il50,000937.3 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe280-il50,000541.1 at α=5.25°Mach=0 Ncrit=5Xfoil predictionDetails
   goe280-il100,000955.5 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe280-il100,000556.8 at α=5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe280-il200,000972.9 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe280-il200,000570.2 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
   goe280-il500,000991.6 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe280-il500,000579.6 at α=4.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe280-il1,000,000998.7 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe280-il1,000,000587.3 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
