GOE 16K AIRFOIL (goe16k-il)

GOE 16K AIRFOIL - Gottingen 16K airfoil


Airfoil goe16k-il
Details Dat file Parser
(goe16k-il) GOE 16K AIRFOIL
Gottingen 16K airfoil
Max thickness 18.2% at 50% chord.
Max camber 4.1% at 50% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
GOE 16K AIRFOIL
       15.       15.

 0.0000000 0.0000000
 0.0250000 0.0359200
 0.0500000 0.0515500
 0.1000000 0.0727000
 0.1500000 0.0879500
 0.2000000 0.1001000
 0.3000000 0.1174000
 0.4000000 0.1268000
 0.5000000 0.1316000
 0.6000000 0.1286000
 0.7000000 0.1173000
 0.8000000 0.0925000
 0.9000000 0.0574000
 0.9500000 0.0341500
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0250000 -.0266800
 0.0500000 -.0352500
 0.1000000 -.0452000
 0.1500000 -.0507500
 0.2000000 -.0533000
 0.3000000 -.0541000
 0.4000000 -.0520000
 0.5000000 -.0499000
 0.6000000 -.0478000
 0.7000000 -.0448000
 0.8000000 -.0396000
 0.9000000 -.0295000
 0.9500000 -.0203500
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

NREL's S831 AirfoilPreviewDetails
WORTMANN FX 73-170PreviewDetails
NACA 65(3)-618PreviewDetails
UNIVERSITY OF ALBERTA UA 79-SF-187PreviewDetails

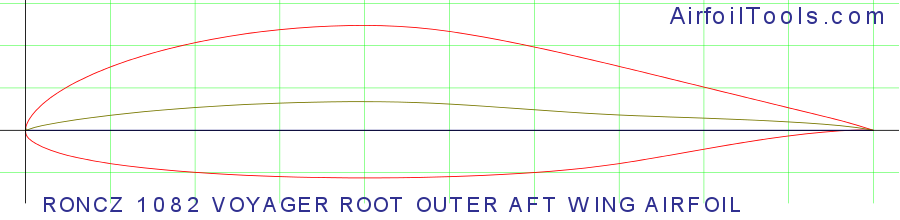

RONCZ 1082 VOYAGER ROOT OUTER AFTPreviewDetails
