GOE 14 AIRFOIL (goe14-il)

GOE 14 AIRFOIL - Gottingen 14 airfoil


Airfoil goe14-il
Details Dat file Parser
(goe14-il) GOE 14 AIRFOIL
Gottingen 14 airfoil
Max thickness 9.9% at 29.8% chord.
Max camber 6.9% at 29.8% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
GOE 14 AIRFOIL
       17.       17.

 0.0000000 0.0000000
 0.0119700 0.0297100
 0.0242000 0.0446300
 0.0488400 0.0648700
 0.0735800 0.0793100
 0.0984000 0.0897600
 0.1481200 0.1051400
 0.1979700 0.1137300
 0.2978800 0.1188200
 0.3979700 0.1136000
 0.4981700 0.1025900
 0.5984300 0.0878800
 0.6987800 0.0685700
 0.7991700 0.0465700
 0.8995800 0.0235600
 0.9497899 0.0119500
 1.0000000 0.0006500

 0.0000000 0.0000000
 0.0128100 -.0172700
 0.0253200 -.0180500
 0.0502300 -.0131000
 0.0750600 -.0031600
 0.0999100 0.0050800
 0.1497600 0.0131700
 0.1997400 0.0163100
 0.2996500 0.0198500
 0.3996900 0.0183800
 0.4997200 0.0159200
 0.5997600 0.0137100
 0.6998100 0.0104900
 0.7998800 0.0067800
 0.8999299 0.0029500
 0.9499800 0.0010600
 1.0000000 -.0006500
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

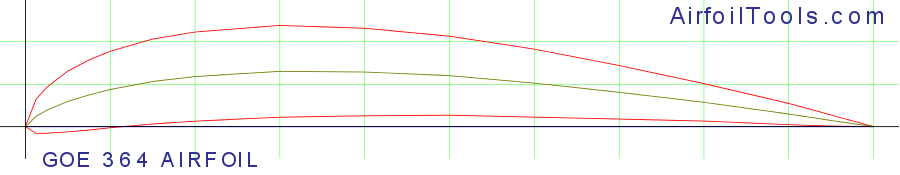

GOE 364 AIRFOILPreviewDetails
GOE 360 AIRFOILPreviewDetails
GOE 301 (FRIEDRICHSHAFEN G 13)PreviewDetails
GOE 319 (HANSA-BRANDENBURG II)PreviewDetails
GOE 331 (PFALZ 60) AIRFOILPreviewDetails
GOE 15 AIRFOILPreviewDetails
GOE 801 (MVA 301) AIRFOILPreviewDetails
GOE 802 AIRFOILPreviewDetails
GOE 802 A AIRFOILPreviewDetails
GOE 802 B AIRFOILPreviewDetails

Polars for GOE 14 AIRFOIL (goe14-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   goe14-il50,000917.7 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe14-il50,000534.4 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe14-il100,000946.4 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   goe14-il100,000553.3 at α=7.5°Mach=0 Ncrit=5Xfoil predictionDetails
   goe14-il200,000970.1 at α=7.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe14-il200,000570 at α=8.75°Mach=0 Ncrit=5Xfoil predictionDetails
   goe14-il500,000998.6 at α=9°Mach=0 Ncrit=9Xfoil predictionDetails
   goe14-il500,000593.9 at α=10°Mach=0 Ncrit=5Xfoil predictionDetails
   goe14-il1,000,0009122.5 at α=9.5°Mach=0 Ncrit=9Xfoil predictionDetails
   goe14-il1,000,0005111.3 at α=8.5°Mach=0 Ncrit=5Xfoil predictionDetails
