Glenn Martin 2 (glennmartin2-il)

Glenn Martin 2 - Glenn Martin 2 airfoil


Airfoil glennmartin2-il
Details Dat file Parser
(glennmartin2-il) Glenn Martin 2
Glenn Martin 2 airfoil
Max thickness 13.5% at 20% chord.
Max camber 6.1% at 30% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
Glenn Martin 2
1.0000     0.0082
0.9500     0.0265
0.9000     0.0423
0.8000     0.0709
0.7000     0.0947
0.6000     0.1128
0.5000     0.1289
0.4000     0.1377
0.3000     0.1423
0.2000     0.1383
0.1500     0.1280
0.1000     0.1116
0.0750     0.0995
0.0500     0.0829
0.0250     0.0597
0.0125     0.0440
0.0000     0.0193
0.0125     0.0083
0.0250     0.0043
0.0500     0.0006
0.0750     0.0000
0.1000     0.0000
0.1500     0.0005
0.2000     0.0036
0.3000     0.0110
0.4000     0.0114
0.5000     0.0092
0.6000     0.0035
0.7000     0.0007
0.8000     0.0000
0.9000     0.0017
0.9500     0.0035
1.0000     0.0082
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 512 AIRFOILPreviewDetails
LNV109APreviewDetails
GOE 510 AIRFOILPreviewDetails
GOE 505 AIRFOILPreviewDetails
GOE 769 AIRFOILPreviewDetails
GOE 744 AIRFOILPreviewDetails

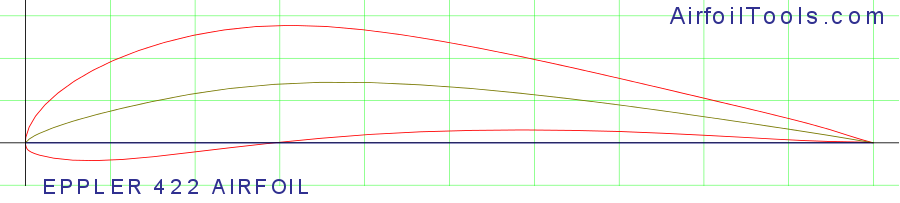

EPPLER 422 AIRFOILPreviewDetails
GOE 322 (HANSA-BRANDENBURG IV.1)PreviewDetails
GOE 534 AIRFOILPreviewDetails
GOE 324 (HANSA-BRANDENBURG) AIRFOILPreviewDetails

Polars for Glenn Martin 2 (glennmartin2-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   glennmartin2-il50,000924.7 at α=1.75°Mach=0 Ncrit=9Xfoil predictionDetails
   glennmartin2-il50,000531.7 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   glennmartin2-il100,000946.2 at α=3°Mach=0 Ncrit=9Xfoil predictionDetails
   glennmartin2-il100,000545.8 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   glennmartin2-il200,000958.7 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   glennmartin2-il200,000557.9 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   glennmartin2-il500,000978.4 at α=7.5°Mach=0 Ncrit=9Xfoil predictionDetails
   glennmartin2-il500,000578.6 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   glennmartin2-il1,000,0009102.4 at α=7.5°Mach=0 Ncrit=9Xfoil predictionDetails
   glennmartin2-il1,000,0005101.3 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
