GIII BL145 AIRFOIL (giiif-il)

GIII BL145 AIRFOIL - Grumman/Gulfstream GIII transonic airfoils


Airfoil giiif-il
Details Dat file Parser
(giiif-il) GIII BL145 AIRFOIL
Grumman/Gulfstream GIII transonic airfoils
Max thickness 8.3% at 44.9% chord.
Max camber 1.3% at 29.9% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
 GIII BL145 AIRFOIL
       26.       26.

 0.0000000 0.0000000
 0.0048526 0.0075152
 0.0073191 0.0092235
 0.0122653 0.0119605
 0.0246656 0.0170438
 0.0495235 0.0242813
 0.0744150 0.0298096
 0.0993257 0.0343582
 0.1491857 0.0414861
 0.1990887 0.0464250
 0.2490245 0.0496845
 0.2989856 0.0516644
 0.3489653 0.0526848
 0.3989596 0.0529654
 0.4489671 0.0525763
 0.4989971 0.0510377
 0.5490518 0.0482395
 0.5991248 0.0445117
 0.6492096 0.0401741
 0.6993100 0.0350469
 0.7494216 0.0293499
 0.7995359 0.0235129
 0.8496499 0.0176859
 0.8997643 0.0118489
 0.9498786 0.0060119
 0.9999928 0.0001849

 0.0000000 0.0000000
 0.0051084 -.0055298
 0.0076330 -.0067803
 0.0126708 -.0087114
 0.0252342 -.0119450
 0.0503016 -.0153833
 0.0753366 -.0171722
 0.1003620 -.0184713
 0.1504026 -.0205498
 0.2004382 -.0223783
 0.2504712 -.0240669
 0.3005026 -.0256755
 0.3505339 -.0272841
 0.4005647 -.0288628
 0.4505886 -.0300916
 0.5005924 -.0302907
 0.5505788 -.0296103
 0.6005480 -.0280501
 0.6505019 -.0257103
 0.7004419 -.0226607
 0.7503710 -.0190513
 0.8002968 -.0152821
 0.8502225 -.0115028
 0.9001484 -.0077335
 0.9500741 -.0039542
 1.0000000 -.0001849
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

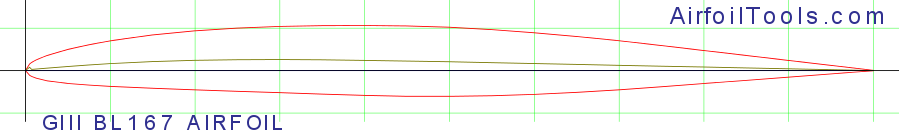

GIII BL167 AIRFOILPreviewDetails
GIII BL126 AIRFOILPreviewDetails
GIII BL207 AIRFOILPreviewDetails
GIII BL288 AIRFOILPreviewDetails
NASA/LANGLEY RC08-64C AIRFOILPreviewDetails
BOEING 707 .99 SPAN AIRFOILPreviewDetails

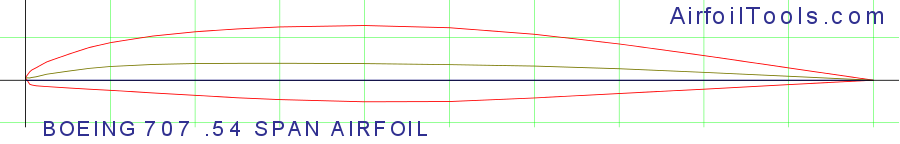

BOEING 707 .54 SPAN AIRFOILPreviewDetails
NASA/LANGLEY RC-08(B)3 AIRFOILPreviewDetails
KC-135 BL351.6 AIRFOILPreviewDetails
NASA/LANGLEY RC-08(N)1 AIRFOILPreviewDetails

Polars for GIII BL145 AIRFOIL (giiif-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   giiif-il50,000932.2 at α=5°Mach=0 Ncrit=9Xfoil predictionDetails
   giiif-il50,000532.2 at α=4.75°Mach=0 Ncrit=5Xfoil predictionDetails
   giiif-il100,000946.6 at α=4.5°Mach=0 Ncrit=9Xfoil predictionDetails
   giiif-il100,000544.5 at α=4.25°Mach=0 Ncrit=5Xfoil predictionDetails
   giiif-il200,000961.7 at α=4°Mach=0 Ncrit=9Xfoil predictionDetails
   giiif-il200,000555.9 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
   giiif-il500,000978.9 at α=3.25°Mach=0 Ncrit=9Xfoil predictionDetails
   giiif-il500,000562.3 at α=2.75°Mach=0 Ncrit=5Xfoil predictionDetails
   giiif-il1,000,000983.9 at α=3°Mach=0 Ncrit=9Xfoil predictionDetails
   giiif-il1,000,000572.4 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
