FX 66-S-171 AIRFOIL (fx66s171-il)

FX 66-S-171 AIRFOIL - Wortmann FX 66-S-171 airfoil


Airfoil fx66s171-il
Details Dat file Parser
(fx66s171-il) FX 66-S-171 AIRFOIL
Wortmann FX 66-S-171 airfoil
Max thickness 17.1% at 33.9% chord.
Max camber 3.9% at 43.5% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
FX 66-S-171 AIRFOIL
       44.       44.

 0.0000000 0.0000000
 0.0010700 0.0056800
 0.0042800 0.0116100
 0.0096100 0.0184000
 0.0170400 0.0259600
 0.0265300 0.0340500
 0.0380600 0.0424600
 0.0515600 0.0511100
 0.0669900 0.0597900
 0.0842700 0.0684300
 0.1033200 0.0768400
 0.1240800 0.0849700
 0.1464500 0.0926400
 0.1703300 0.0998000
 0.1956200 0.1062300
 0.2222100 0.1118700
 0.2500000 0.1164400
 0.2786600 0.1199100
 0.3086600 0.1221300
 0.3392800 0.1233100
 0.3705900 0.1230500
 0.4024500 0.1214700
 0.4347400 0.1182800
 0.4673000 0.1139200
 0.5000000 0.1085900
 0.5327000 0.1027500
 0.5652600 0.0962800
 0.5975500 0.0895600
 0.6294100 0.0826600
 0.6607200 0.0758200
 0.6913400 0.0690100
 0.7211400 0.0623600
 0.7500000 0.0559400
 0.7777900 0.0497700
 0.8043801 0.0438600
 0.8296700 0.0383400
 0.8535500 0.0331000
 0.8759201 0.0282800
 0.9157300 0.0197300
 0.9484400 0.0126600
 0.9734700 0.0069700
 0.9903900 0.0026700
 0.9989300 0.0003200
 1.0000000 0.0000000

 0.0000000 0.0000000
 0.0010700 -.0034800
 0.0042800 -.0074400
 0.0096100 -.0115000
 0.0170400 -.0154700
 0.0265300 -.0194200
 0.0380600 -.0232300
 0.0515600 -.0269500
 0.0669900 -.0304500
 0.0842700 -.0338100
 0.1033200 -.0368800
 0.1240800 -.0397600
 0.1464500 -.0422800
 0.1703300 -.0445500
 0.1956200 -.0463800
 0.2222100 -.0479100
 0.2500000 -.0489000
 0.2786600 -.0492900
 0.3086600 -.0487500
 0.3392800 -.0477800
 0.3705900 -.0460900
 0.4024500 -.0438200
 0.4347400 -.0405800
 0.4673000 -.0368300
 0.5000000 -.0327000
 0.5327000 -.0286900
 0.5652600 -.0246700
 0.5975500 -.0209200
 0.6294100 -.0172500
 0.6607200 -.0139600
 0.6913400 -.0109400
 0.7211400 -.0083100
 0.7500000 -.0059800
 0.7777900 -.0039900
 0.8043801 -.0023000
 0.8296700 -.0010200
 0.8535500 0.0000200
 0.8759201 0.0006800
 0.9157300 0.0013800
 0.9484400 0.0013700
 0.9734700 0.0010400
 0.9903900 0.0005600
 0.9989300 0.0001100
 1.0000000 0.0000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

EPPLER 655 AIRFOILPreviewDetails
WORTMANN FX 66-17A-175 AIRFOILPreviewDetails
AH 93-W-174PreviewDetails
FX 84-W-175PreviewDetails
EPPLER 1200 AIRFOILPreviewDetails
GOE 290 (MVA 290) AIRFOILPreviewDetails
GOE 681 AIRFOILPreviewDetails
HORSTMANN AND QUAST HQ-300 GD(MOD 2)PreviewDetails
FX 66-S-161 AIRFOILPreviewDetails

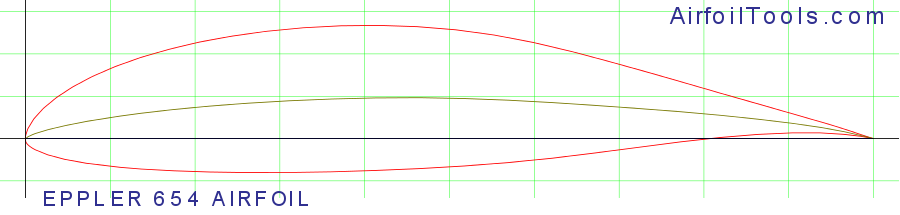

EPPLER 654 AIRFOILPreviewDetails

Polars for FX 66-S-171 AIRFOIL (fx66s171-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   fx66s171-il50,00095 at α=9.5°Mach=0 Ncrit=9Xfoil predictionDetails
   fx66s171-il50,000512.7 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   fx66s171-il100,000913.3 at α=1°Mach=0 Ncrit=9Xfoil predictionDetails
   fx66s171-il100,000539.2 at α=5.5°Mach=0 Ncrit=5Xfoil predictionDetails
   fx66s171-il200,000970.3 at α=10.25°Mach=0 Ncrit=9Xfoil predictionDetails
   fx66s171-il200,000572.4 at α=9.75°Mach=0 Ncrit=5Xfoil predictionDetails
   fx66s171-il500,0009113.9 at α=9°Mach=0 Ncrit=9Xfoil predictionDetails
   fx66s171-il500,0005113.4 at α=8.25°Mach=0 Ncrit=5Xfoil predictionDetails
   fx66s171-il1,000,0009147.6 at α=8°Mach=0 Ncrit=9Xfoil predictionDetails
   fx66s171-il1,000,0005133.8 at α=7.5°Mach=0 Ncrit=5Xfoil predictionDetails
