Eiffel 385 (S.T. Ae) (eiffel385-il)

Eiffel 385 (S.T. Ae) - Eiffel 385 (S.T. Ae) airfoil


Airfoil eiffel385-il
Details Dat file Parser
(eiffel385-il) Eiffel 385 (S.T. Ae)
Eiffel 385 (S.T. Ae) airfoil
Max thickness 13.4% at 20% chord.
Max camber 4.4% at 50% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format
Eiffel 385 (S.T. Ae)
1.0000     0.0000
0.9500     0.0165
0.9000     0.0313
0.8000     0.0590
0.7000     0.0833
0.6000     0.1042
0.5000     0.1229
0.4000     0.1354
0.3000     0.1403
0.2000     0.1363
0.1500     0.1290
0.1000     0.1167
0.0750     0.1085
0.0500     0.0980
0.0250     0.0850
0.0125     0.0749
0.0000     0.0521
0.0125     0.0303
0.0250     0.0225
0.0500     0.0125
0.0750     0.0065
0.1000     0.0035
0.1500     0.0005
0.2000     0.0028
0.3000     0.0083
0.4000     0.0153
0.5000     0.0174
0.6000     0.0174
0.7000     0.0160
0.8000     0.0125
0.9000     0.0069
0.9500     0.0025
1.0000     0.0000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

GOE 650 AIRFOILPreviewDetails
GOE 619 AIRFOILPreviewDetails
GOE 685 AIRFOILPreviewDetails
GOE 550 AIRFOILPreviewDetails
WB-135/35 13.5% smoothedPreviewDetails

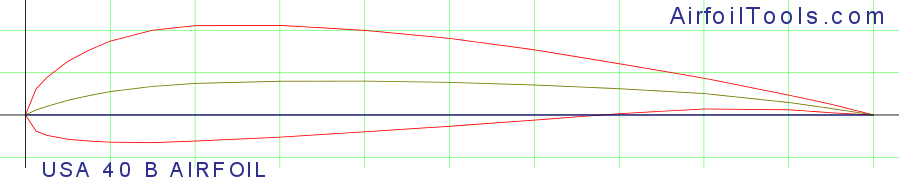

USA 40 B AIRFOILPreviewDetails
GOE 633 AIRFOILPreviewDetails
GOE 298 AIRFOILPreviewDetails
GOE 430 AIRFOILPreviewDetails
GOE 418 AIRFOILPreviewDetails

Polars for Eiffel 385 (S.T. Ae) (eiffel385-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   eiffel385-il50,000925.2 at α=9°Mach=0 Ncrit=9Xfoil predictionDetails
   eiffel385-il50,000532.1 at α=3.5°Mach=0 Ncrit=5Xfoil predictionDetails
   eiffel385-il100,000952.5 at α=6.25°Mach=0 Ncrit=9Xfoil predictionDetails
   eiffel385-il100,000555.2 at α=4°Mach=0 Ncrit=5Xfoil predictionDetails
   eiffel385-il200,000976 at α=3.5°Mach=0 Ncrit=9Xfoil predictionDetails
   eiffel385-il200,000574.3 at α=2.75°Mach=0 Ncrit=5Xfoil predictionDetails
   eiffel385-il500,0009106.4 at α=2°Mach=0 Ncrit=9Xfoil predictionDetails
   eiffel385-il500,000593.5 at α=3.75°Mach=0 Ncrit=5Xfoil predictionDetails
   eiffel385-il1,000,0009123.4 at α=2.75°Mach=0 Ncrit=9Xfoil predictionDetails
   eiffel385-il1,000,000597.9 at α=3.25°Mach=0 Ncrit=5Xfoil predictionDetails
